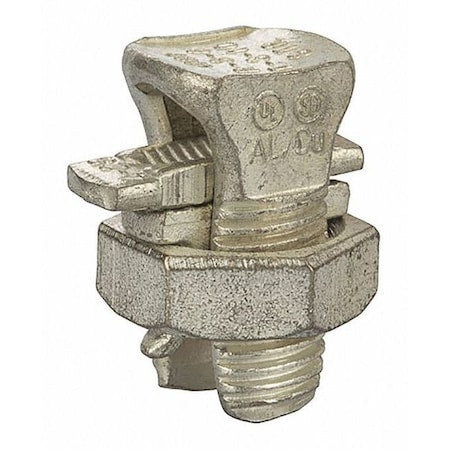

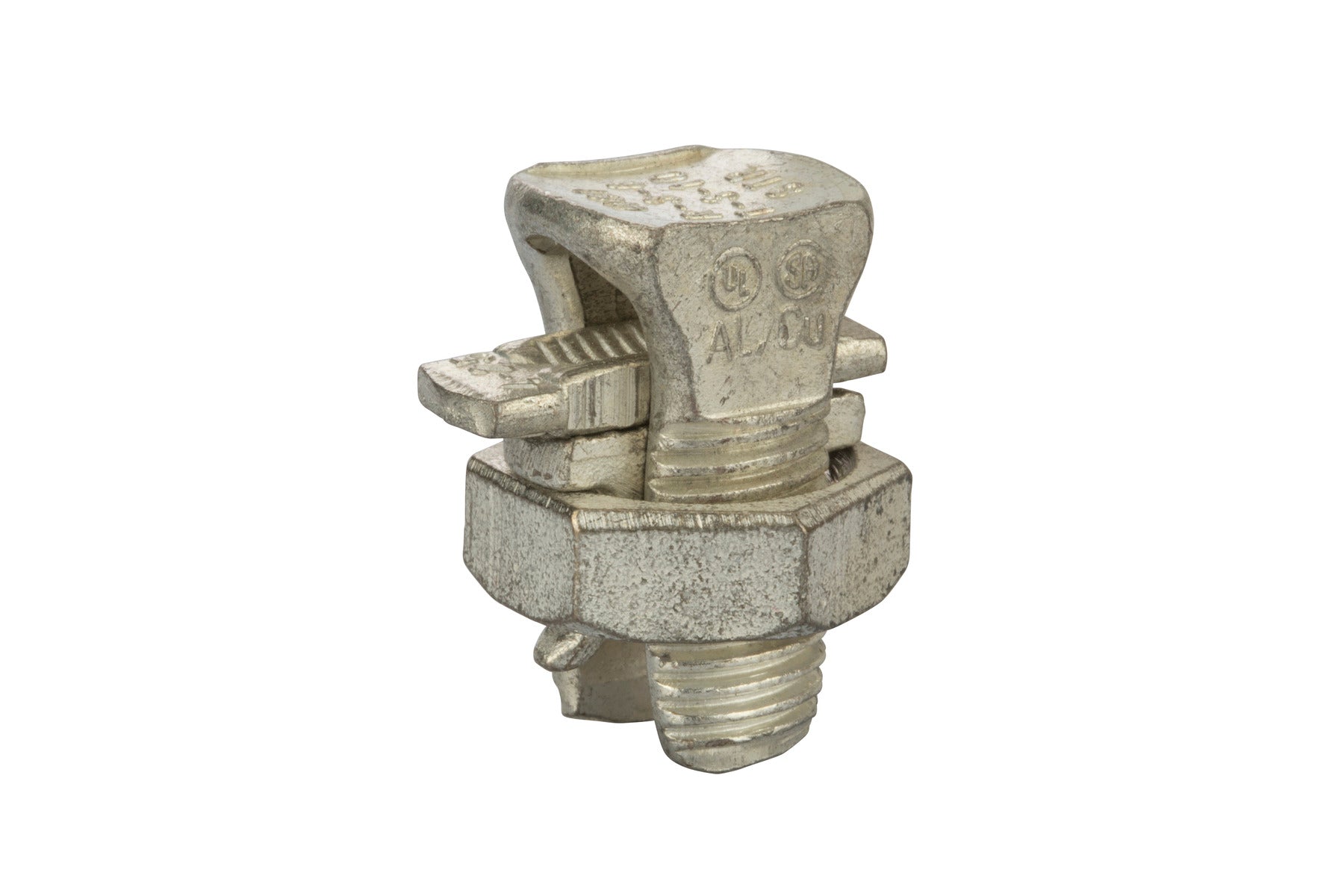

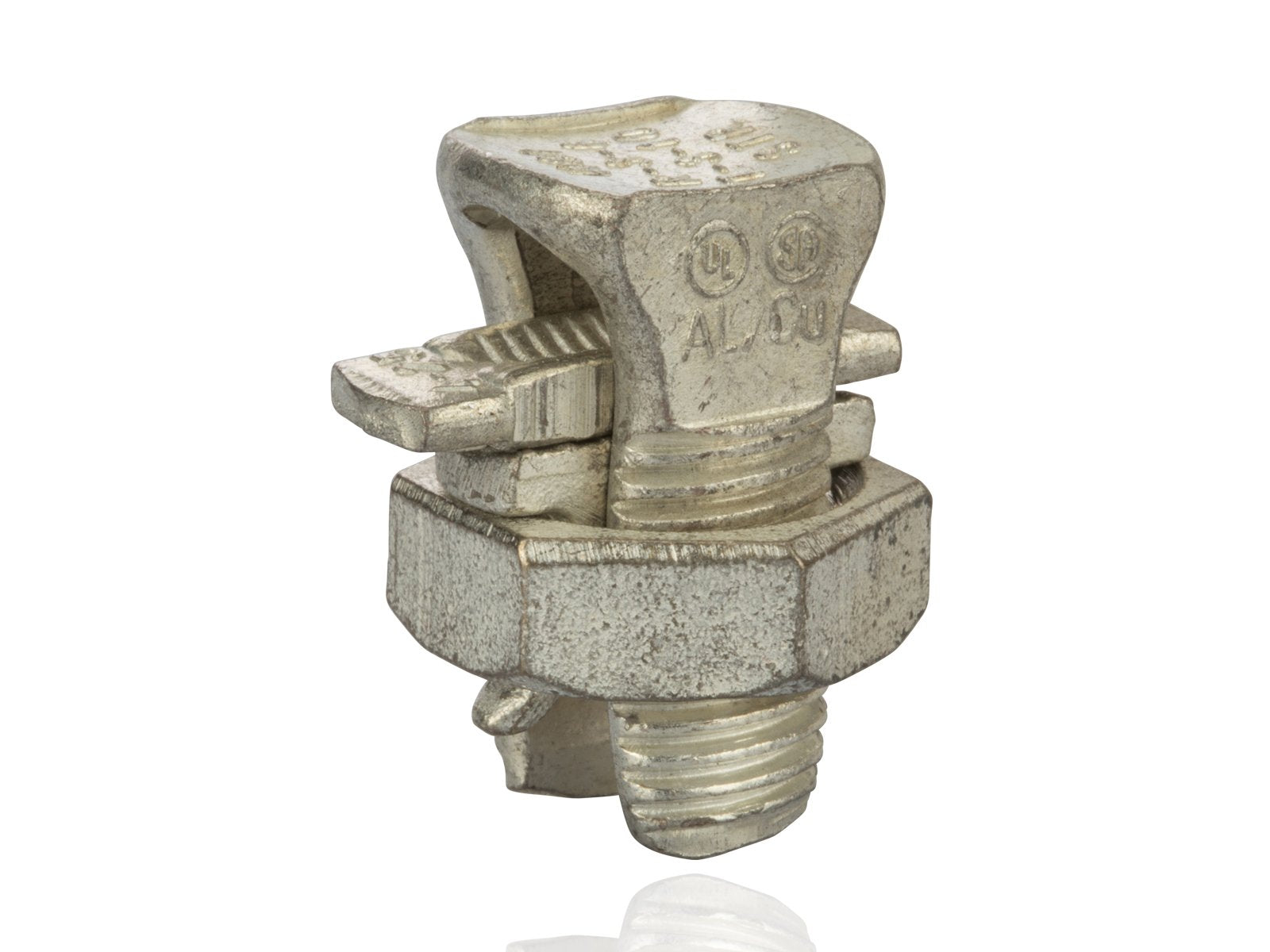

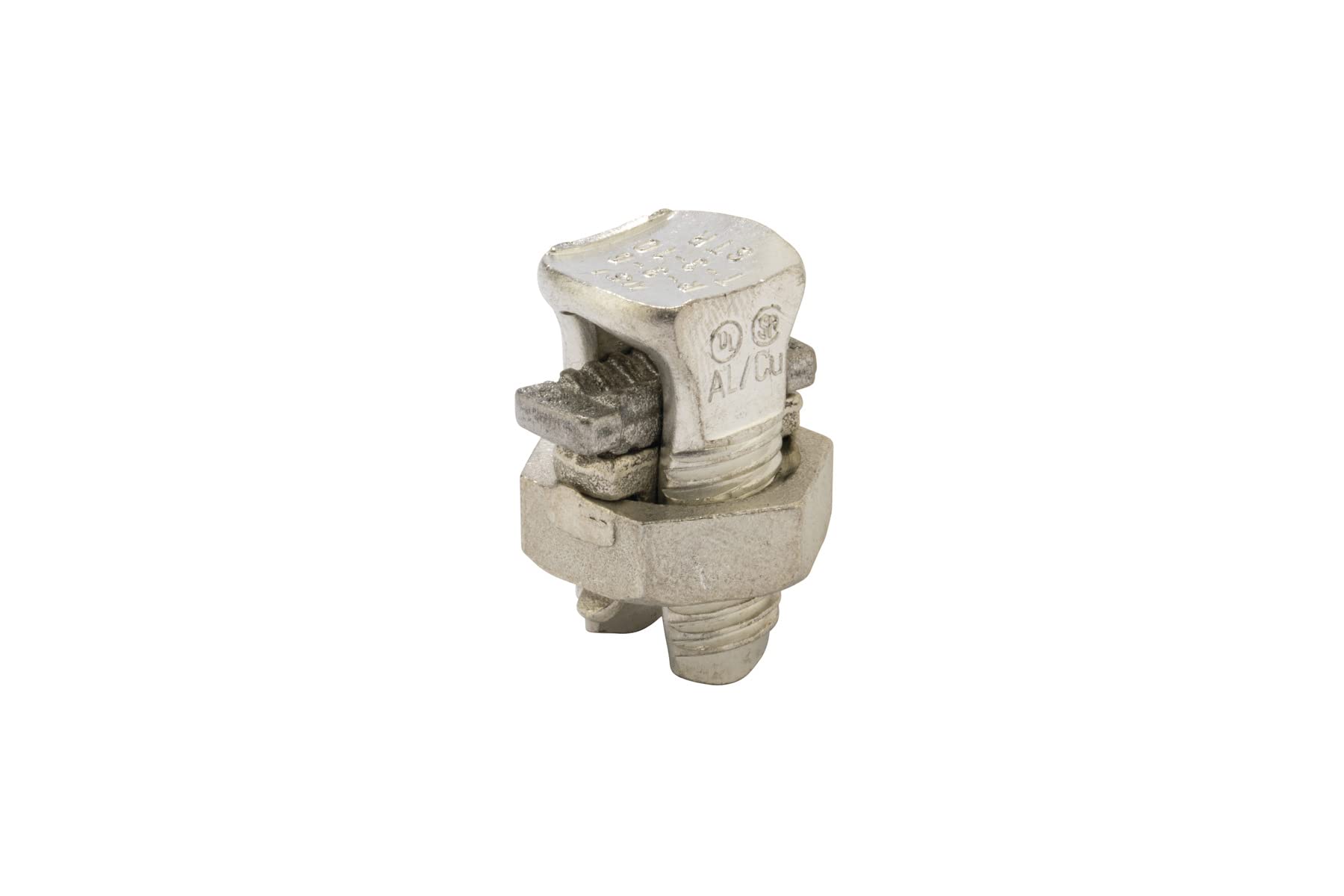

The NSI INDUSTRIES N-4SP split bolt connector is designed for compression connections and is suitable for copper and copperweld wires. It facilitates connections such as aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper. Features an electro-tinned body and includes a nut, spacer, and pressure pad.
UL Listed for copper and copperweld wires only
Electro-tinned body
Suitable for a variety of connections
Product Highlights
The NSI split bolt connector is versatile for various wire connections and ensures secure termination with included components.
Product Information
Standard Information
Brand: NSI INDUSTRIES
Manufacturer Part Number: N-4SP
Country of Origin: Brazil
Technical Specifications
Connection Type
COMPRESSION
Material Rating
COPPER
UNSPSC Code
39121400
MPN
N-4SP
Wire Diameter Range
0.116" - 0.184"
Torque
165lbs
Item [Specifications]
Split Bolt,Tin Plated Copper,4 AWG
Size [Specifications]
L=1.161 - W=.708
Type [Specifications]
Tin Plated Copper Split Bolt
Finish [Specifications]
Tin Plated Copper
Material [Specifications]
Tin Plated Copper
Standard [Specifications]
UL486B
Wire Size [Specifications]
10 STR - 6 STR
Wire Type [Specifications]
Class A & B
Application [Specifications]
Wire Termination
Voltage Rating
600 V
Temperature Rating
90 deg C
Number Of Conductors [Specifications]
2
Environmental Conditions [Specifications]
90 C
Country of Origin (subject to change) [Specifications]
Brazil
Material
Copper
Pack Qty
75
GTIN
662381020338
UPC
662381020338
EAN
0662381020338
UNSPSC
39121408
Ul Standard
UL 486A-486B, UL 486D
Conductor Type
Solid/Stranded/ACSR Copper/Aluminum
Wire Range
10 STR – 6 STR
Assortment
Copper Split Bolts
Minimum Order Qty
1
Order Interval
1
Bolt Size
1.161 in x 0.708 in
Catalog ID
NSIN-4SP
Conductor Size
10 to 6 AWG
Dimensions
1.161 in L x 0.708 in W
Series
N-SP
Includes
Nut, Spacer and Pressure Pad
Standard & Approvals
UL486B Listed
Application
For Combinations of Aluminum to Copper, Aluminum to Aluminum, Steel to Aluminum, Copper to Copper and Steel to Copper Applications and Wire Termination
Type
All-Purpose
Specifications
1 Pole, 2 Conductors, 0.3 in Split, 0.81 in Hex Nut, 165 in lb Torque
