Nsi Industries N-3sp Copper Split Bolt 8 Sol-3 Str

Product Description

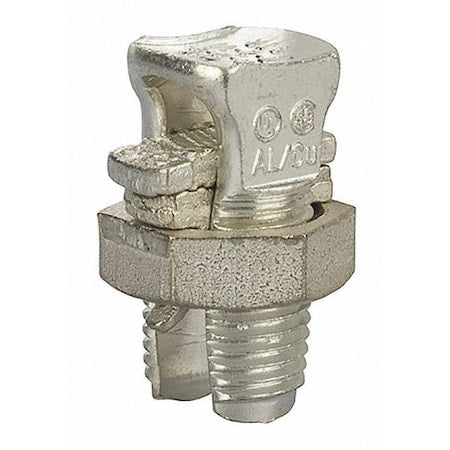

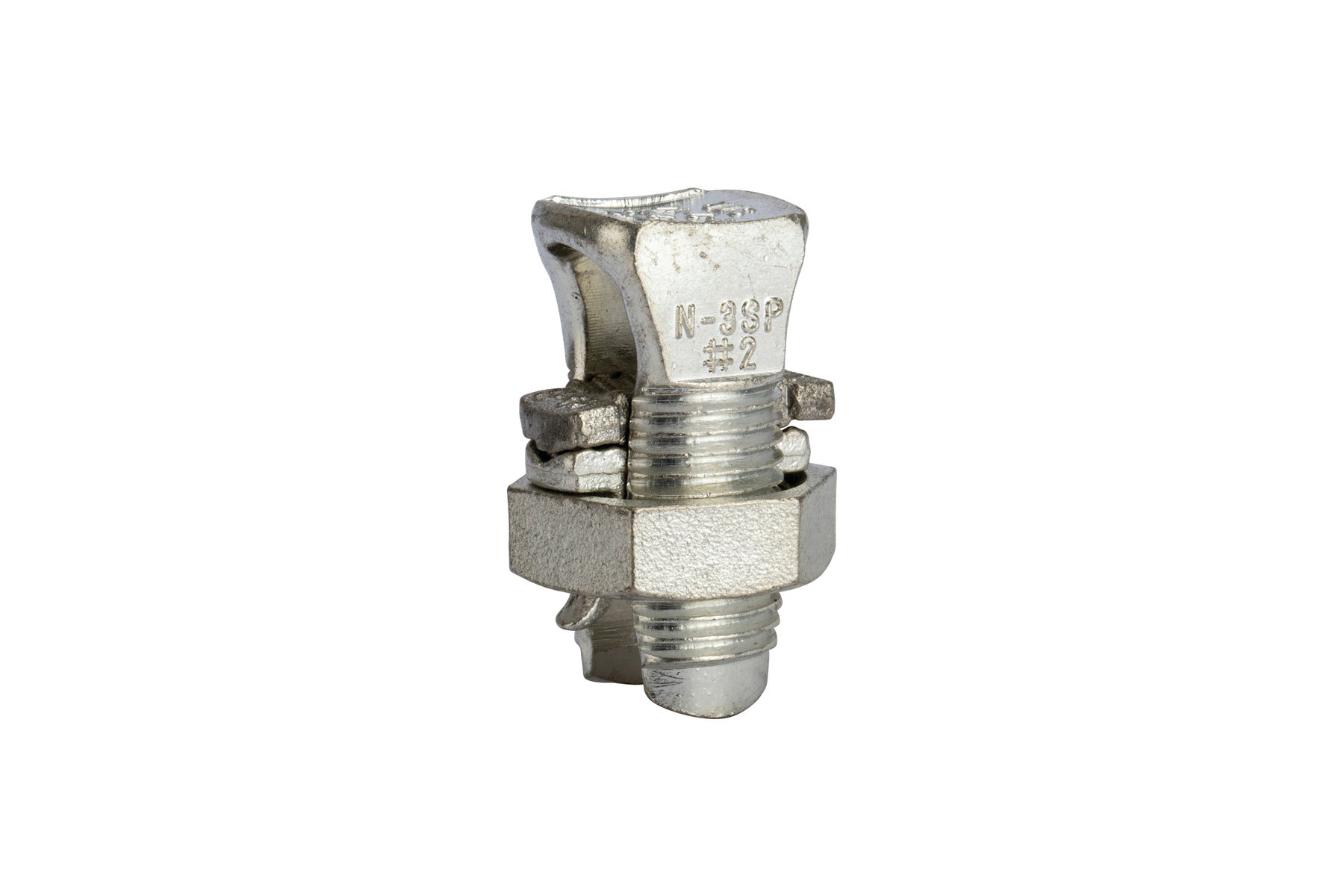

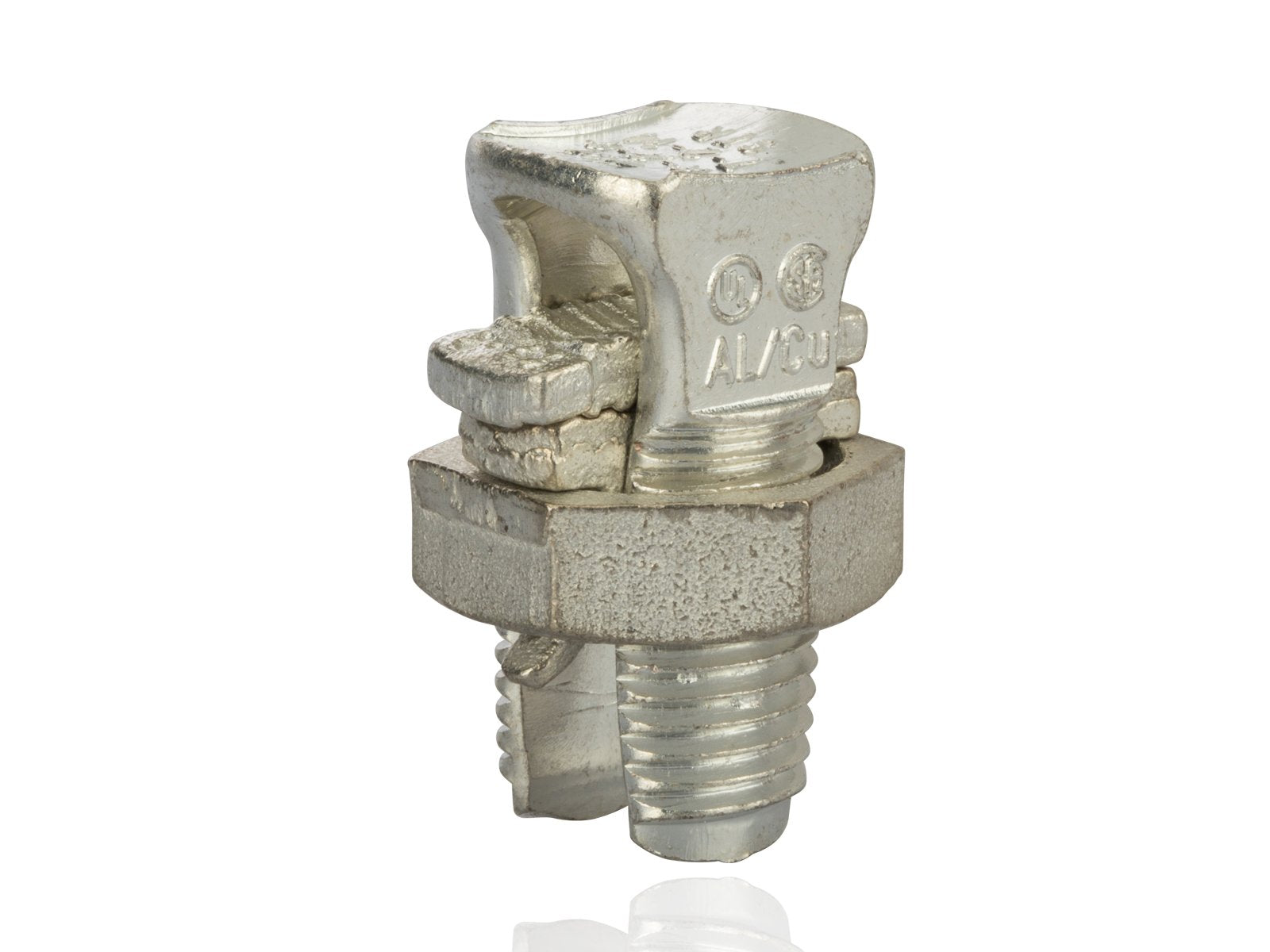

The NSI INDUSTRIES N-3SP is a copper split bolt designed for compression connections. It is suitable for aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. The connector features an electro-tinned body and is UL Listed for copper and copperweld wires only.

• Designed for compression connections
• Suitable for various material combinations
• UL Listed for copper and copperweld wires

Product Highlights

This copper split bolt is ideal for creating secure and reliable connections between different types of wires.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-3SP
• Country of Origin: Brazil

Technical Specifications

• Connection Type: COMPRESSION
• Material Rating: COPPER
• Wire Diameter Range: 0.128" - 0.258"
• Item [Specifications]: Split Bolt,Tin Plated Copper,3 AWG
• Type [Specifications]: Tin Plated Copper Split Bolt
• Finish: Tin Plated Copper
• Material [Specifications]: Tin Plated Copper
• Standard [Specifications]: UL486B
• Wire Size [Specifications]: 8 SOL - 3 STR
• Wire Type [Specifications]: Class A & B
• Application [Specifications]: Wire Termination
• Voltage Rating: 600 V
• Temperature Rating: 90 C
• Number Of Conductors: 2
• Material: Copper
• Ul Standard: UL 486A-486B, UL 486D
• Conductor Type: Copper
• Assortment: Copper Split Bolts
• Brand: NSI Industries
• Conductor Size: 8 to 3 AWG
• Number of Poles: 1 Pole
• Voltage: 600 Volt
• Wire Size: 8 SOL-3 STR
• Wire Type: A,B
• Sub Brand: Split Bolts
• Color: Tin Plated Copper
• Series: N-SP
• Specifications: 1 Pole, 2 Conductor, 0.3 in Split, 0.9 in Hex Nut, 275 in-lb Torque
• Bolt Size: 0.748 x 1.35 in
