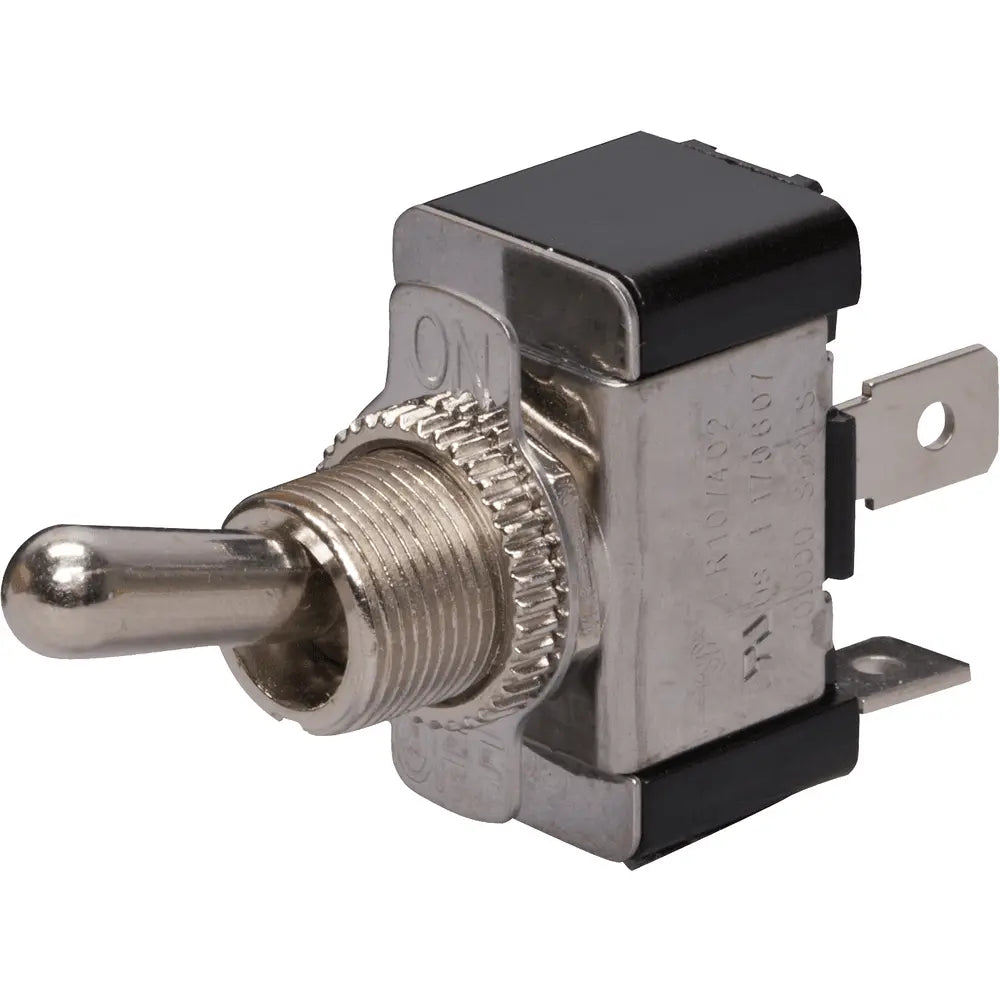

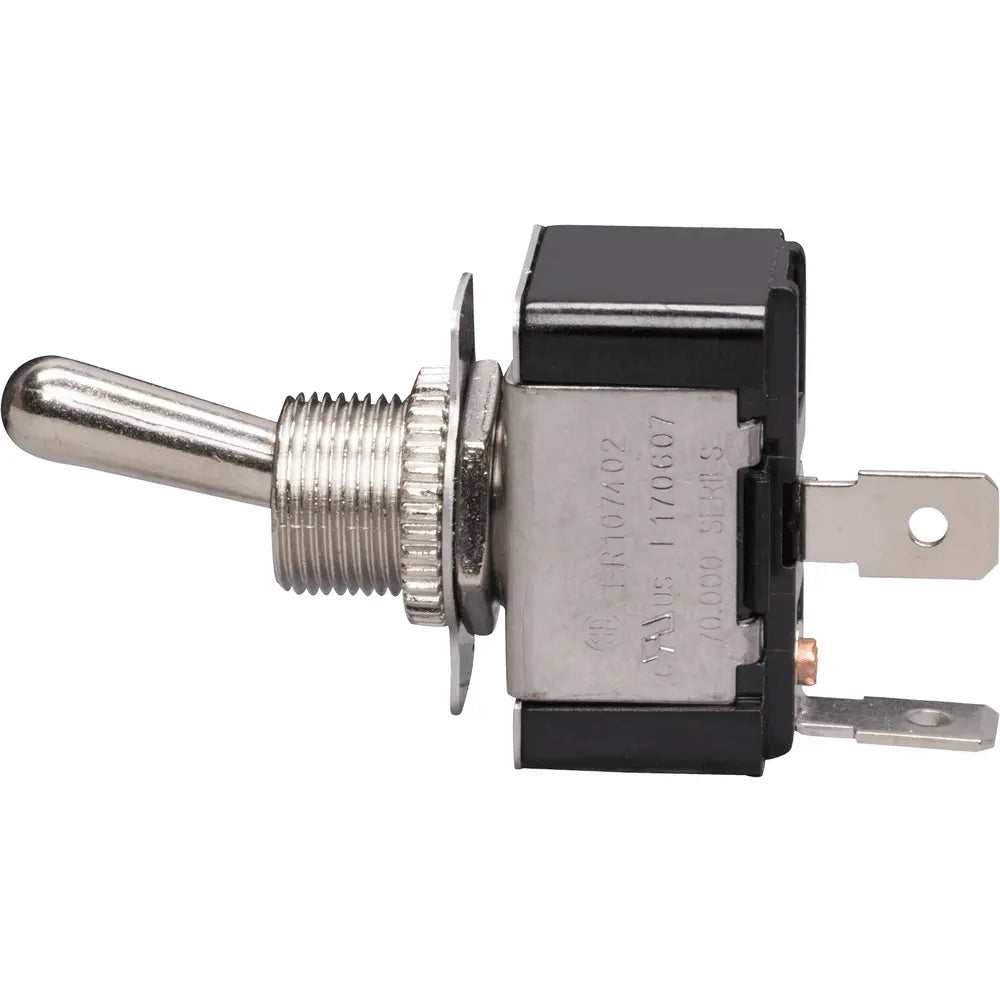

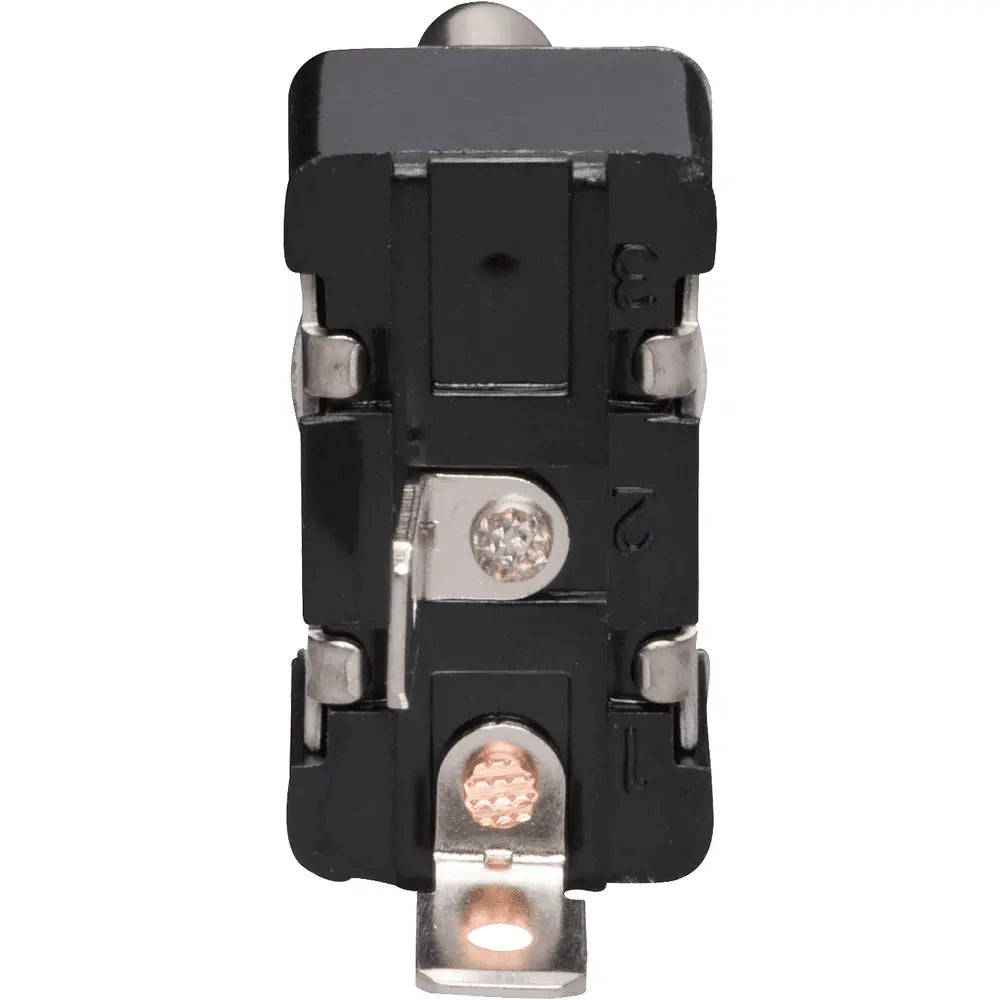

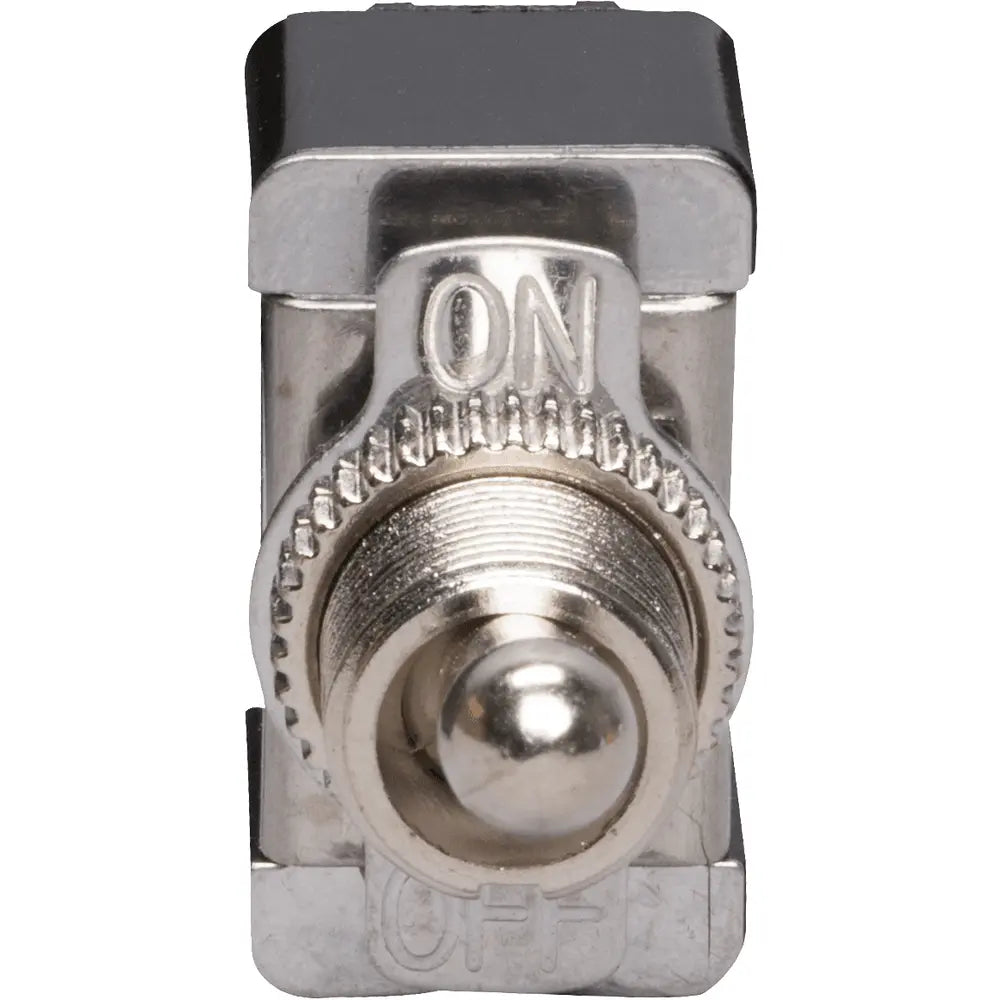

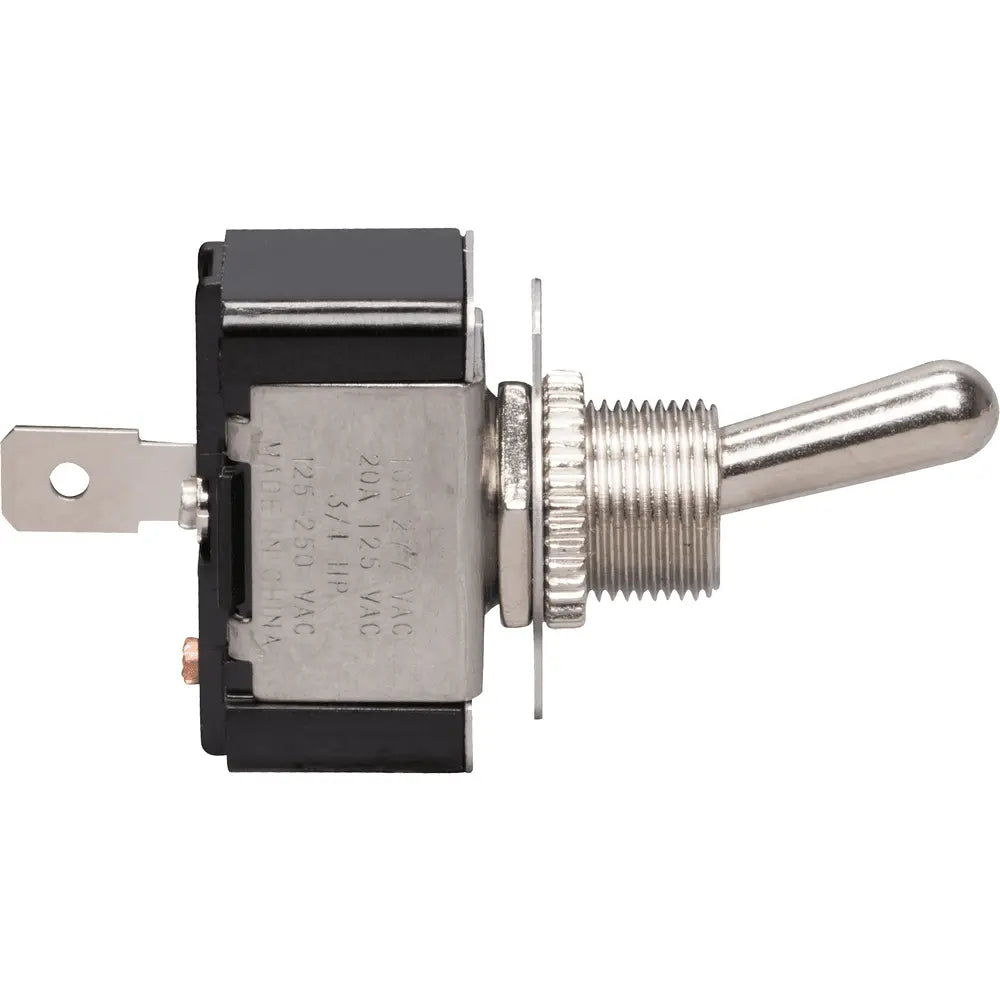

NSI 78120TQ Toggle Switch Maintained On-Off SPST Bat Handle Quickconnect

Product Description

The NSI Toggle Switch, model 78120TQ, features a thermoplastic base and is designed to maintain an on/off operation for motor equipment control. With fast installation through quick-connect terminals, this switch is ideal for a variety of applications in industrial control systems.

• Voltage rating: 125/250 VAC
• Amperage rating: 20 Amperes (125 VAC), 10 Amperes (250 VAC)
• SPST contact configuration

Product Highlights

This toggle switch is constructed for durability with a nickel-plated brass bat handle for ease of operation. It is perfect for switching applications in dry locations.

Product Information

Standard Information

• Brand: NSI
• Model Number: 78120TQ

Technical Specifications

• Dimensions: 1.134 inches length x 0.634 inches width x 0.465 inches height
• Weight: 0.45 pounds
• Number of Poles: Single-Pole
• Mounting Type: Threaded Snap-In
• Material: Thermoplastic
• Connection Type: Quickconnect
• Insulation: Non-Insulated
• Country of Origin: TW
