Norton 700 Wave-to-Open Wall Switch

Product Description

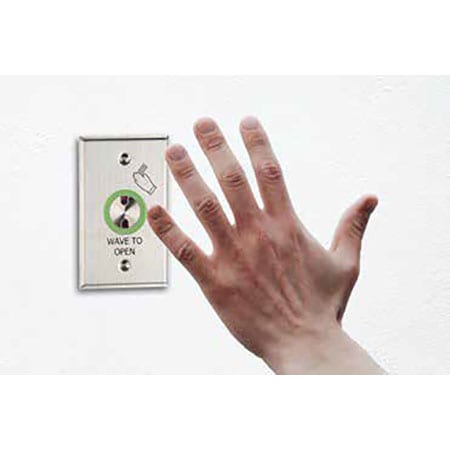

The Norton 700 Wave-to-Open Wall Switch provides a hands-free solution for door operation. This switch works with Norton low energy operators to facilitate movement through spaces without physical contact. It detects hand gestures within a four-inch range, ensuring activation only when intended. This switch is suitable for use in various environments such as schools, hospitals, and offices, and it meets ADA requirements.

• Hands-free sensor activation
• Requires movement for activation
• Single gang and double gang options available

Product Highlights

The Norton 700 enhances convenience and accessibility in commercial settings.

Product Information

Standard Information

• Brand: Norton
• Part Type: Actuator / Door Switch

Technical Specifications

• Finish: Stainless Steel
• MPN: 700
• Installation: Commercial
• Unit of Measure: Each
• Finish Description: Satin Stainless Steel
• Relay Action: Momentary
• Range: 4 inches
• Mounting Plate Size: 1 or 2 Gang
• Sensor Type: Motion Sensor
• Activation Range: 0-4 inches
• Variable Hold Time: 0-35 Seconds
• Material: Satin Stainless Steel
• Single Gang Dimensions: 3 inches W x 4-3/4 inches H
• Double Gang Dimensions: 4-1/2 inches W x 4-1/2 inches H
• Compatibility: Norton 5600 Series, 5700 Series, 5800 Series, 6000 Series, and 6300 Series operators
• Application/Usage: Door
