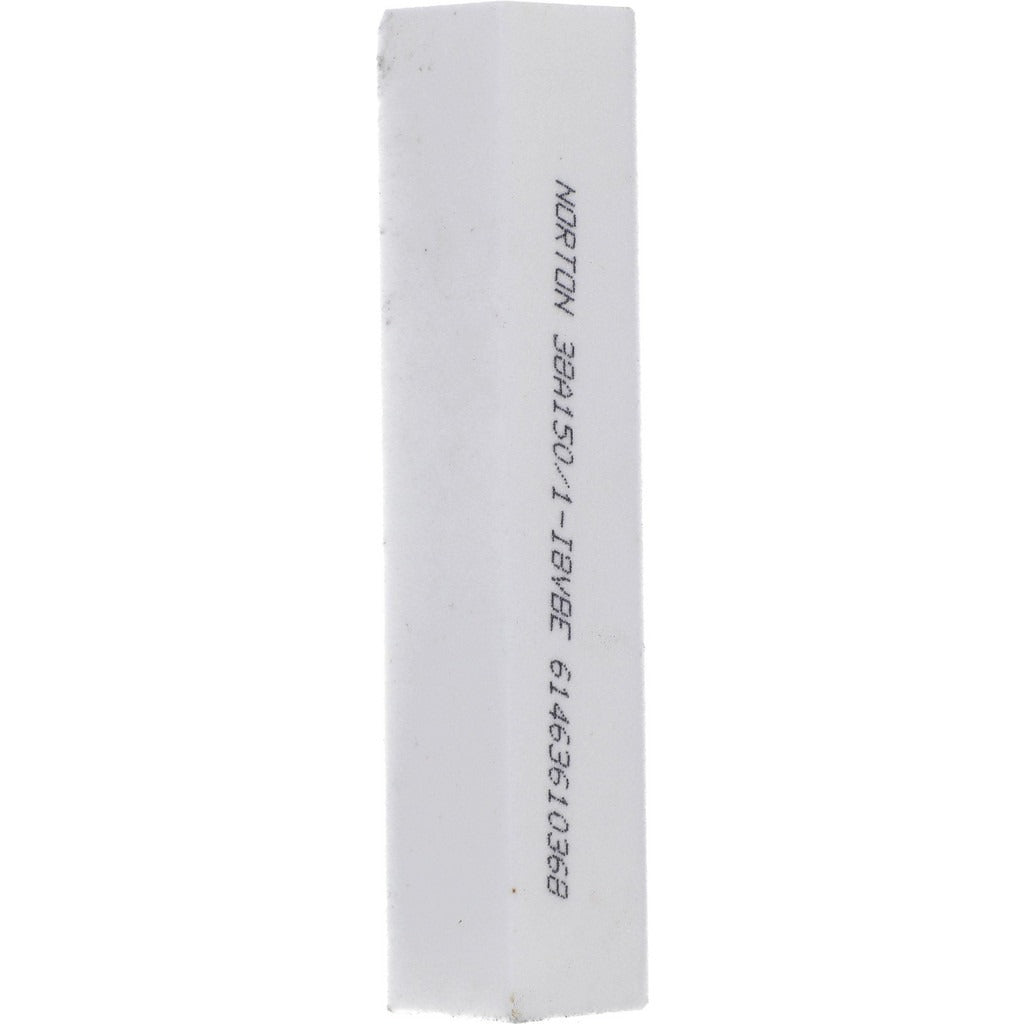

Norton 61463610368 Aluminum Oxide Square Dressing Stick

Product Description

The NORTON 61463610368 is a vitrified-bond aluminum oxide dressing stick used to true, dress, and open the face of superabrasive grinding wheels. At 150 grit, it falls in the very fine grade range, making it suited for precision dressing work where controlled material removal and consistent wheel geometry matter. The square profile measures 4 inches long by 3/4 inch wide by 3/4 inch thick and weighs approximately 0.8 pounds. The white aluminum oxide abrasive and vitrified bond construction deliver a hard, stable cutting action that holds its shape during use. This stick is a standard shop consumable handled by grinding machine operators and tool-and-cutter technicians.

This dressing stick is applied to superabrasive wheels, including CBN and diamond grinding wheels, to remove loading, restore cutting ability, and correct wheel profile. It is used across precision grinding operations in industrial, toolroom, and maintenance environments. The square cross-section provides four usable working edges, allowing the stick to be rotated as one face wears. It is commonly kept at the machine for routine redressing between grinding passes.

Key Features

• 150 grit aluminum oxide abrasive for very fine dressing action
• Vitrified bond provides rigid, stable structure during wheel contact
• Square profile with four usable edges extends service life
• White aluminum oxide formulation suited for precision grinding applications
• Compact 4-inch length fits standard wheel dressing setups

Compatibility

Designed for dressing and truing superabrasive wheels, including CBN and diamond grinding wheels, as specified in the product application data.

Installation Notes

Dressing sticks are used by grinding machine operators and toolroom technicians. Always bring the wheel to a full stop before applying the stick by hand, and follow the machine manufacturer's recommended dressing procedure. Secure workholding or a rest may be used to stabilize the stick during contact with the wheel face. Wear appropriate eye protection and follow shop safety protocols when dressing grinding wheels.
