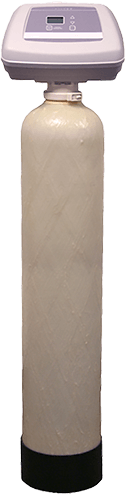

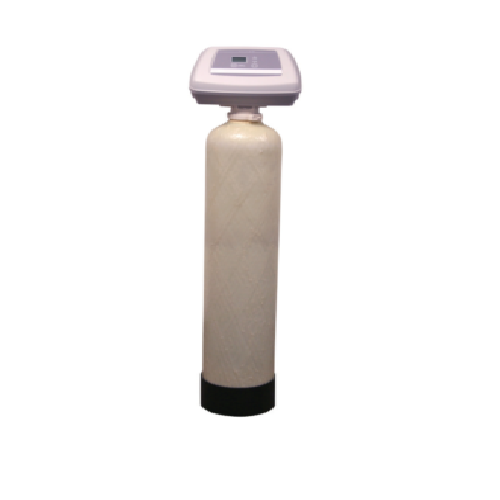

North Star NSAIV10 Iron Reduction Filter

Product Description

The North Star NSAIV10 iron reduction filter is designed to effectively reduce clear or red iron in water with a removal capacity of up to ten parts per million. It operates with a 24V controller for enhanced functionality.

• Removes up to 10 PPM of iron from water.
• Multi-wrap fiberglass reinforced resin tank for durability.
• Utilizes natural air to oxidize contaminants.

Product Highlights

This filter system uses zeolite media to remove impurities and backwashes to the drain without harmful chemicals. It is suitable for residential applications and has a maximum water pressure of 80 PSI.

Product Information

Standard Information

• Brand: North Star
• MPN: NSAIV10

Technical Specifications

• Nominal Mineral Tank Size: 10 inches x 47 inches
• Contaminant Reduction Limitations: Up to 10 PPM Iron
• Water Temperature Limits: 40-120°F
• Flow Rate: 7-10 GPM
• Backwash Flow Rate: 7 GPM
• Electrical Rating: 24V 60Hz
• Application: Residential
• Installation Type: Vertical
