Nordyne Intertherm 264080r Observation Door Assembly

Product Description

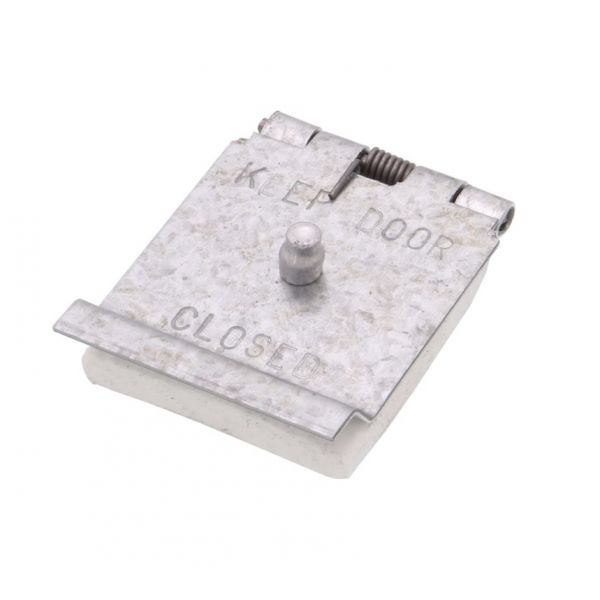

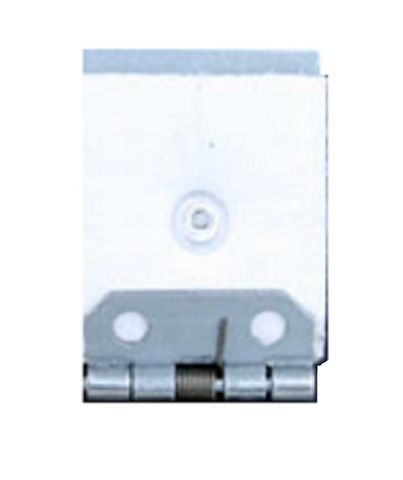

The NORDYNE INTERTHERM 264080r is an OEM replacement observation door assembly designed for gas furnaces and mobile home HVAC systems. It functions as a secured access panel with an integrated viewing port, allowing technicians to monitor burner performance and pilot flame stability without opening the furnace cabinet or disrupting system pressurization. The assembly is constructed from heavy-duty metal with a gray finish. Its direct-replacement design ensures that safety latches and cabinet seals align to factory specifications, making it a dependable choice for field service on combustion systems.

This observation door assembly is used in residential gas furnaces and mobile home HVAC installations. It is intended for service technicians performing diagnostics on ignition systems, flame sensors, and burner assemblies. The viewing port allows real-time visual inspection of the combustion area during startup and steady-state operation, eliminating the need to remove the panel entirely during live diagnostic work. It serves as a replacement for OEM part number 264080.

Key Features

• Integrated viewing port allows direct observation of burner flame and pilot without removing the panel
• Maintains cabinet pressure integrity during visual inspection
• Heavy-duty metal construction with gray finish for durability in service conditions
• Safety latches and seals align to OEM factory specifications
• Direct replacement for OEM part number 264080
• Lightweight at approximately 0.02 pounds for easy field handling

Compatibility

Designed as a direct OEM-style replacement for gas furnace and mobile home HVAC units manufactured under the Intertherm, Miller, and Frigidaire brands, as noted in the product description. Replaces OEM part number 264080.

Installation Notes

Installation should be performed by a qualified HVAC technician. Shut off gas supply and disconnect electrical power to the furnace before removing or installing any door assembly. Verify that all safety latches engage fully and the panel seats flush against the cabinet to maintain proper combustion air sealing. Reference applicable local codes and manufacturer service documentation before completing the repair.

Technical Specifications

• Weight: 0.02 pounds
• Material: Heavy-duty metal
• Finish: Gray
• Part Type: Observation Door Assembly
• OEM Part Number: 264080r
• Replaces: 264080

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: 264080r
