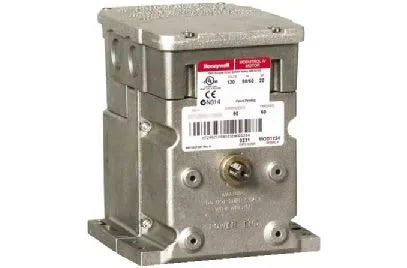

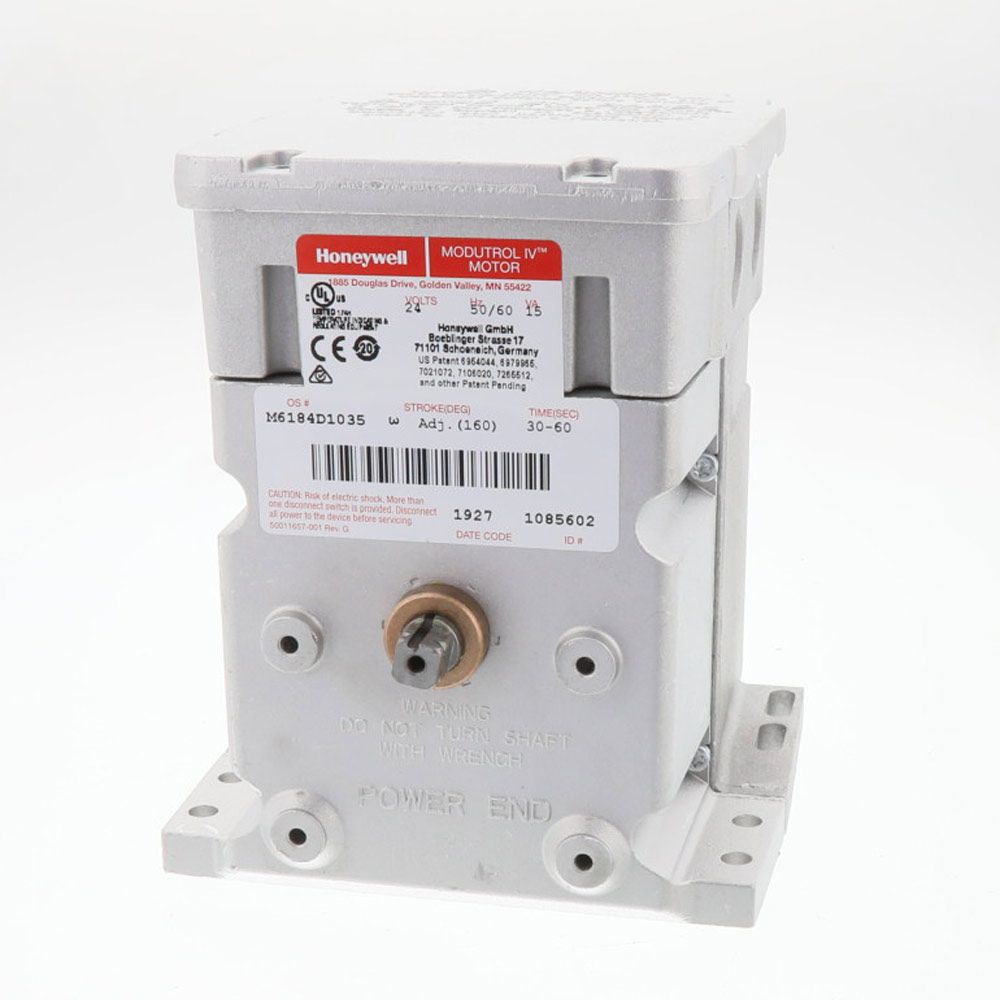

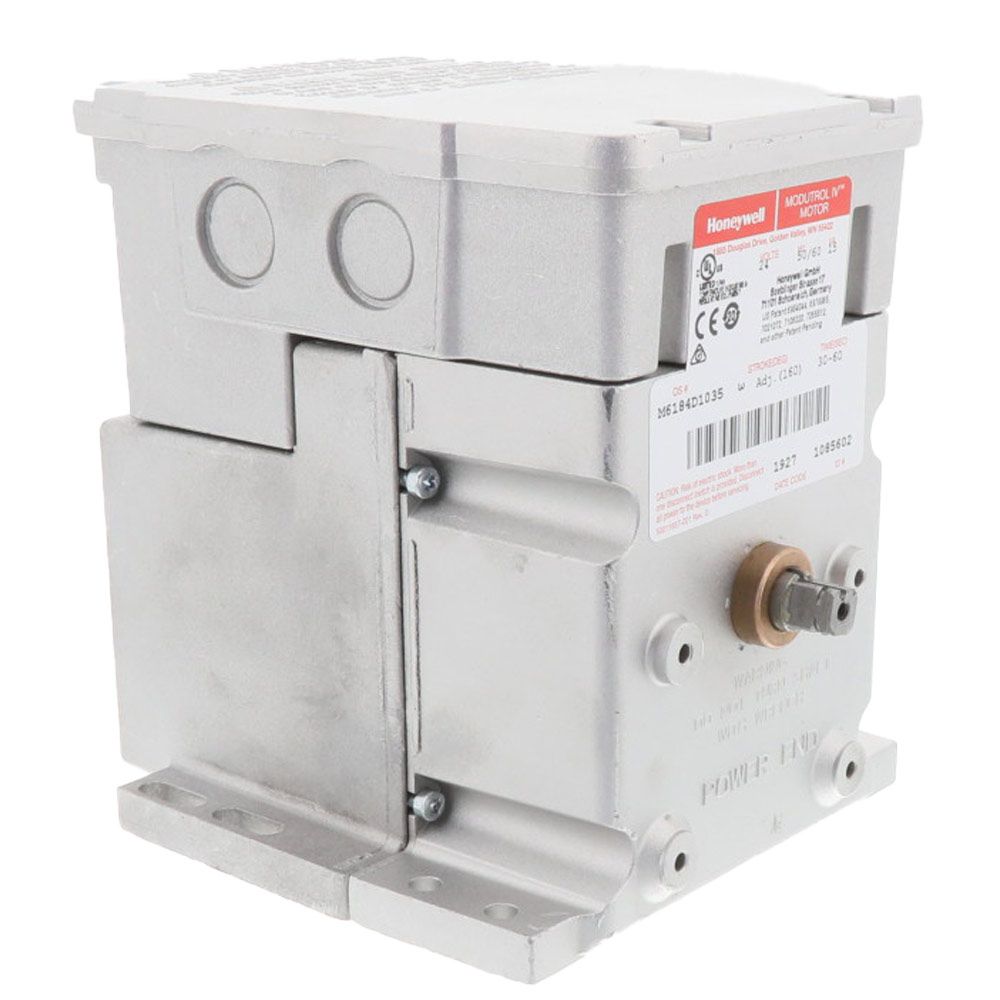

Honeywell M6184D1035 24V 150# ADJ T/S MOD MOTOR

Product Description

The Honeywell M6184D1035 is a 24V adjustable torque and speed motor designed for industrial applications. This motor operates efficiently with a torque rating of 150 lb-in and a timing range of thirty to sixty seconds. It is foot-mounted and has an adjustable stroke capability of ninety to one hundred sixty degrees, making it versatile for various usage needs.

• 24V DC power supply
• Adjustable stroke angles from ninety to one hundred sixty degrees
• Foot-mounted design suitable for various installations

Product Highlights

This motor is ideal for applications where precise control and performance are critical. It is commonly used in automation systems, HVAC controls, robotics, and material handling.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M6184D1035

Technical Specifications

• Torque Rating: 150 lb-in
• Voltage: 24V
• Timing Range: 30 to 60 seconds
• Weight: 6.1 lbs
• Dimensions: 9.85 in (L) x 6.15 in (W) x 7.3 in (H)
• Application Type: Electric
