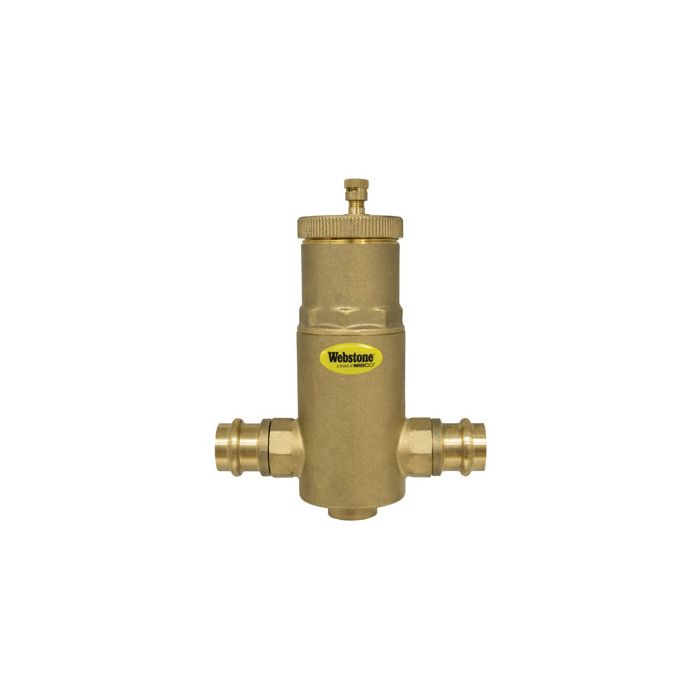

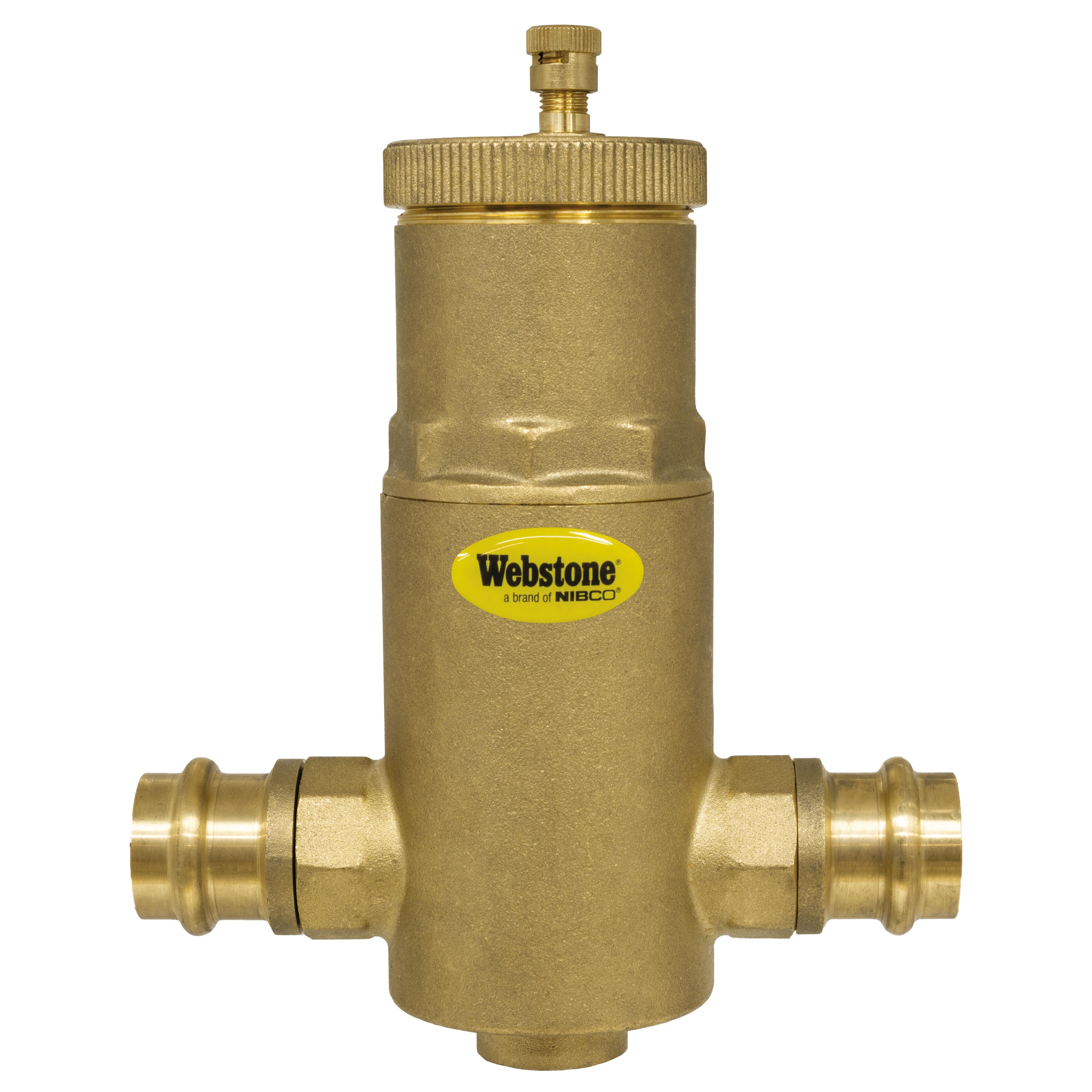

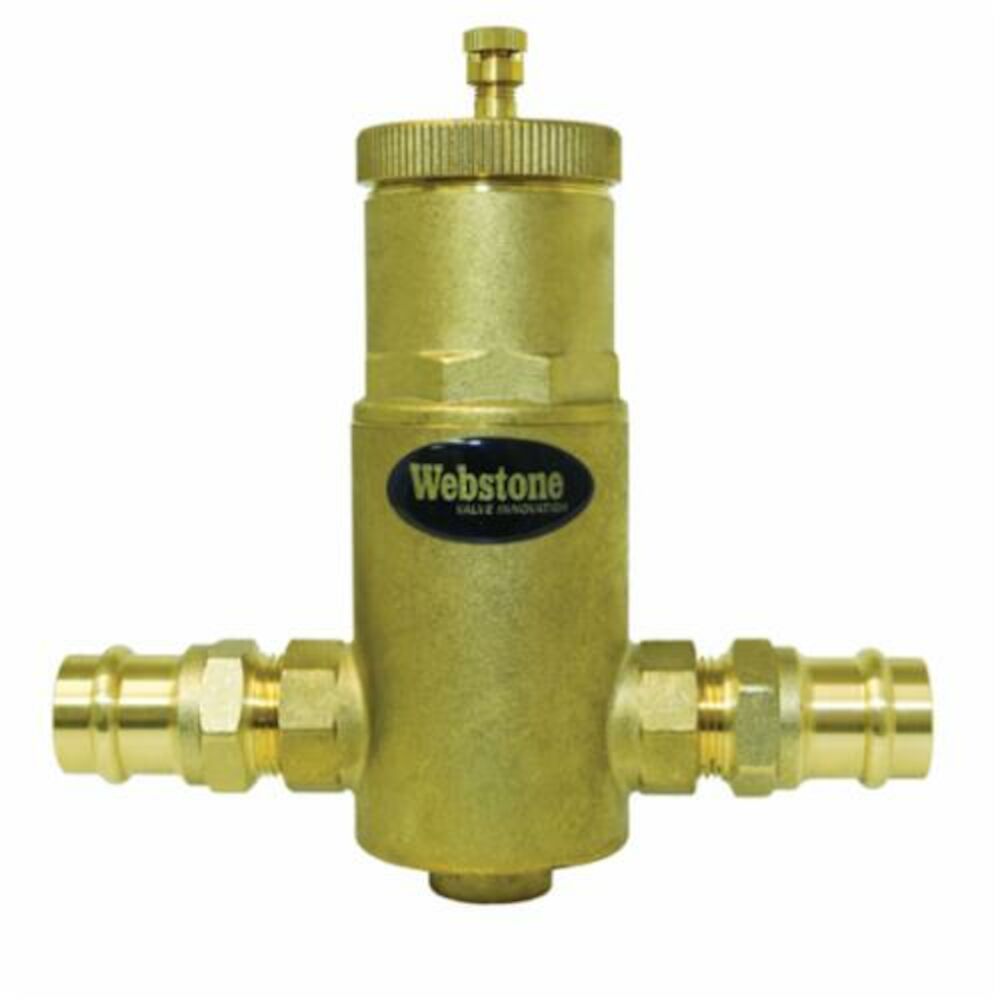

NIBCO H-78005 1-1/4 Press Air Separator

Product Description

The NIBCO H-78005 is an air separator designed for use in hydronic systems. This unit effectively eliminates air from various media including water, glycol mixtures, and oil. Made from brass, it features press connections and a horizontal orientation which allows for efficient operation in diverse settings.

• Features press end connections for a secure fit.
• Constructed from durable brass material.
• Suitable for air, water, glycol mixtures, and oil applications.

Product Highlights

This air separator enhances system efficiency and reduces the wear on different system components.

Product Information

Standard Information

• Manufacturer Part Number: H-78005
• Type: Air Separator

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Connection 1: Press
• End Connection 2: Press
• Material: Brass
• Maximum Working Pressure: 150 psi
• Flow Rate: 15 gpm
• Temperature Rating: 250 degrees F
• Dimensions: 6-1/4 inches H x 7-11/16 inches W
• Weight: 3.52 lbs
• Series: 7800
• Suitable Media: Air
