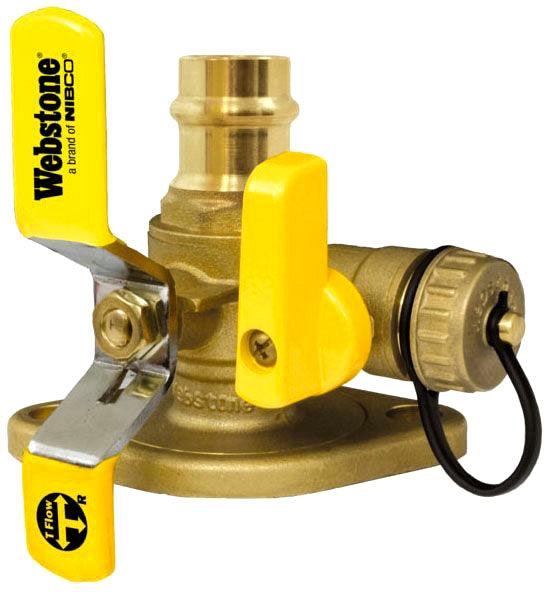

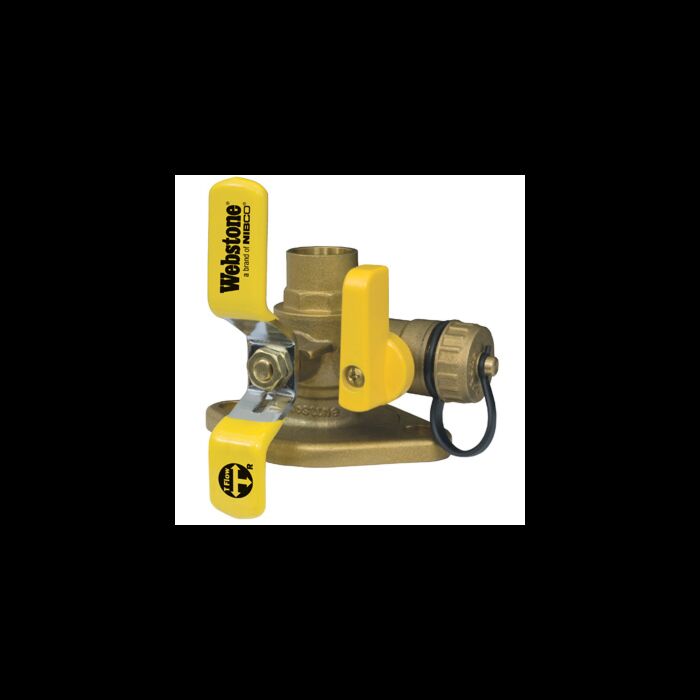

NIBCO H-51415W Isolator Ball Valve

Product Description

The NIBCO H-51415W is an isolator ball valve suitable for plumbing and heating systems. Made from forged brass, this valve offers reliable performance in various applications. It features a female soldered end connection and a rotating flange, making it easy to install and use.

• Designed to isolate pumps for maintenance and prevent corrosion.
• Includes an adjustable packing gland and a blowout-proof stem.
• Compliant with NSF/ANSI 14/61/372 standards.

Product Highlights

The valve is ideal for use with water, oil, and glycol mixtures in residential and commercial systems.

Product Information

Standard Information

• Manufacturer Part Number: H-51415W
• Applicable Standard: NSF/ANSI 14/61/372

Technical Specifications

• Nominal Size: 1-1/4 Inch X 1-1/4 Inch
• End Connection: Female Soldered X Rotating Flange
• Body Material: Forged Brass
• Port Type: Full
• Pressure Rating: 600 Psi Cwp
• Inclusions/Features: Adjustable Packing Gland, Blowout-Proof Stem, Hi-Flow Hose Drain
• Application: Water, Oil, Glycol Mix
• Lead-Free: Yes
