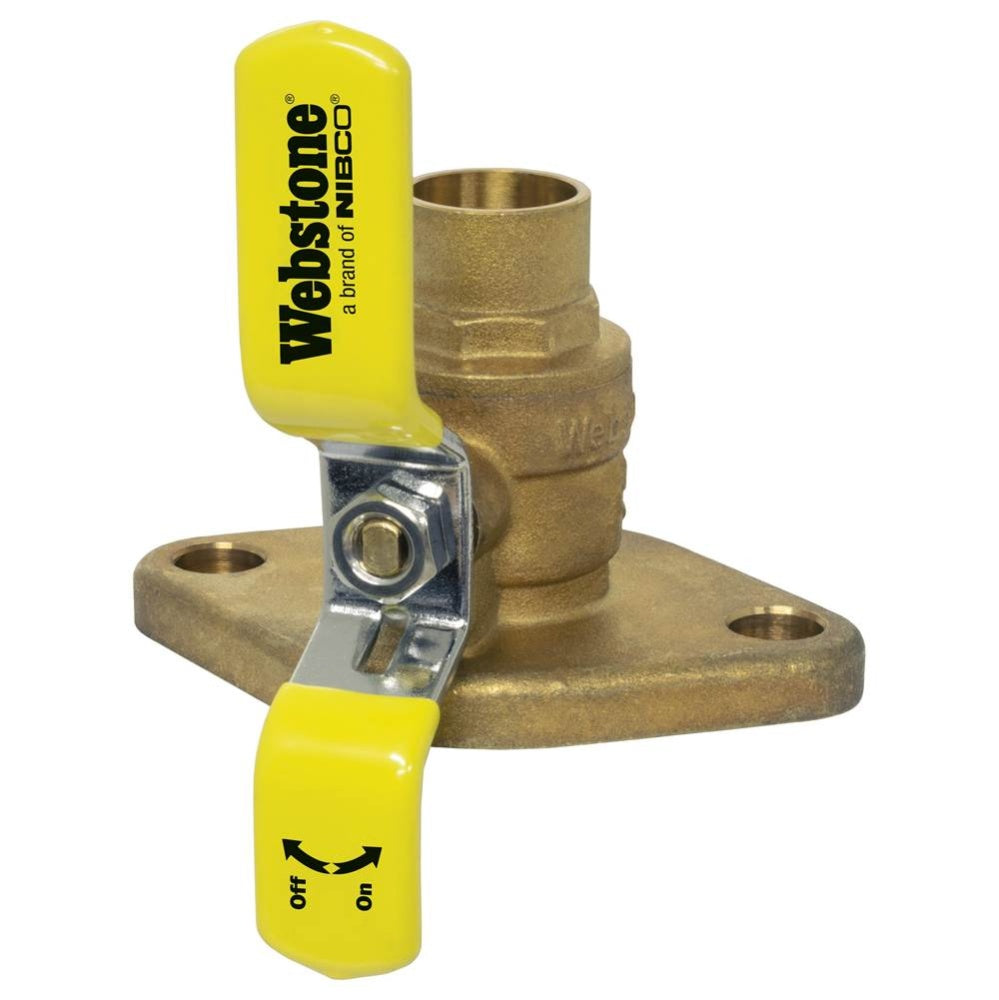

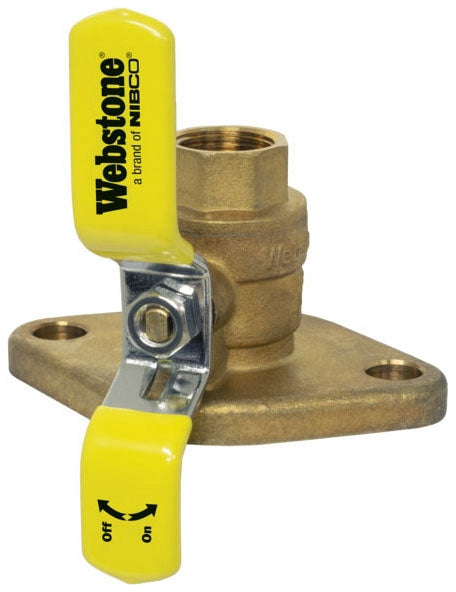

NIBCO H-40406HV Ball Valve

Product Description

The NIBCO Webstone H-40406HV ball valve is built to isolate a circulator pump, helping to prevent air from entering the system during maintenance. This valve is made with a forged brass body and has a full port design. It is effective for various fluids such as water, oil, and glycol mixtures, suitable for both residential and commercial plumbing or heating systems. The lever handle allows for easy actuation, and it has a blowout-proof stem for added safety.

• End style: IPS x Flange
• Ball is made of polished chrome brass
• Equipped with adjustable packing gland

Product Highlights

This ball valve is ideal for plumbing applications that require reliable isolation and fluid handling.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-40406HV

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Forged Brass
• End Style: IPS x Flange
• Inlet to Outlet Length: 4 inches
• Media: Water/Glycol Mixture
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 100 degrees F
• Top to Inlet Center: 2-3/8 inches
• Trim Material: Brass Stem and PTFE Seat
• Plumbing Category: Plumbing Supplies
• Plumbing Subcategory: Valves
• UPC: 018394494060
