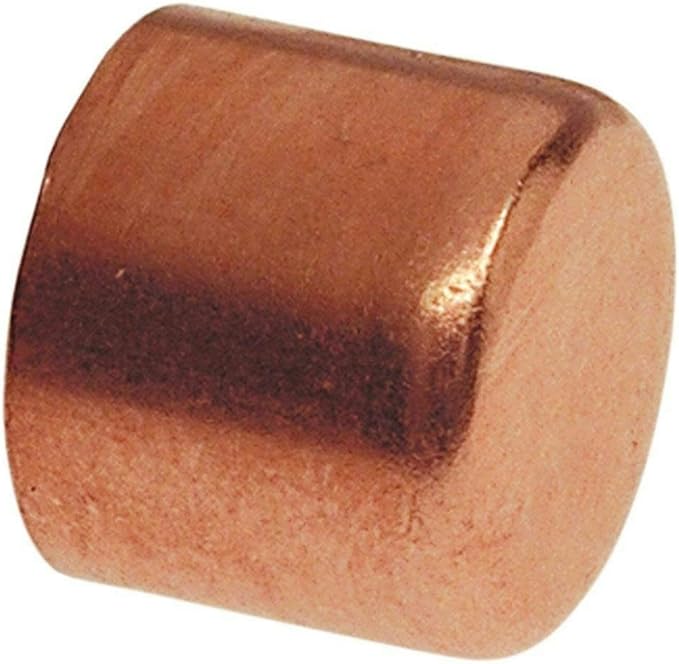

Nibco CAP2 Wrot Copper Cap 2-1/2 inches

Product Description

The NIBCO CAP2 is a wrot copper cap designed for air and potable water applications. Compatible with 2 1/2" copper tubes with an outer diameter of 2 5/8". It withstands a maximum operating pressure of 336 psi at 100°F and temperatures up to 400°F. This cap meets ASME B16.22, ASTM B75, MSS SP-104, NFPA 99, NSF/ANSI 372, NSF/ANSI 61, and UL 207 standards.

• Application Air, Potable Water
• Fitting Material Wrot Copper
• Made in United States

Product Highlights

Wrot copper cap for air and potable water systems, ensuring secure and compliant connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: CAP2
• Country of Origin: United States

Technical Specifications

• Connector Type: Cap
• Compatible Copper Tube Size: 2 1/2 in
• Compatible Tube Outer Diameter: 2 5/8 in
• Fitting Connection Type: Cup
• Fitting Material: Wrot Copper
• Maximum Operating Pressure: 336 psi @ 100 Degrees F
• Maximum Operating Temperature: 400 Degrees F
• Specific Fitting Shape: Cap
• Standards: ASME B16.22, ASTM B75, MSS SP-104, NFPA 99, NSF/ANSI 372, NSF/ANSI 61, UL 207
• Material Grade: C12200
• Minimum Operating Temperature: 20 Degrees F
• Exterior Finish: Copper
• Material Type: Copper
