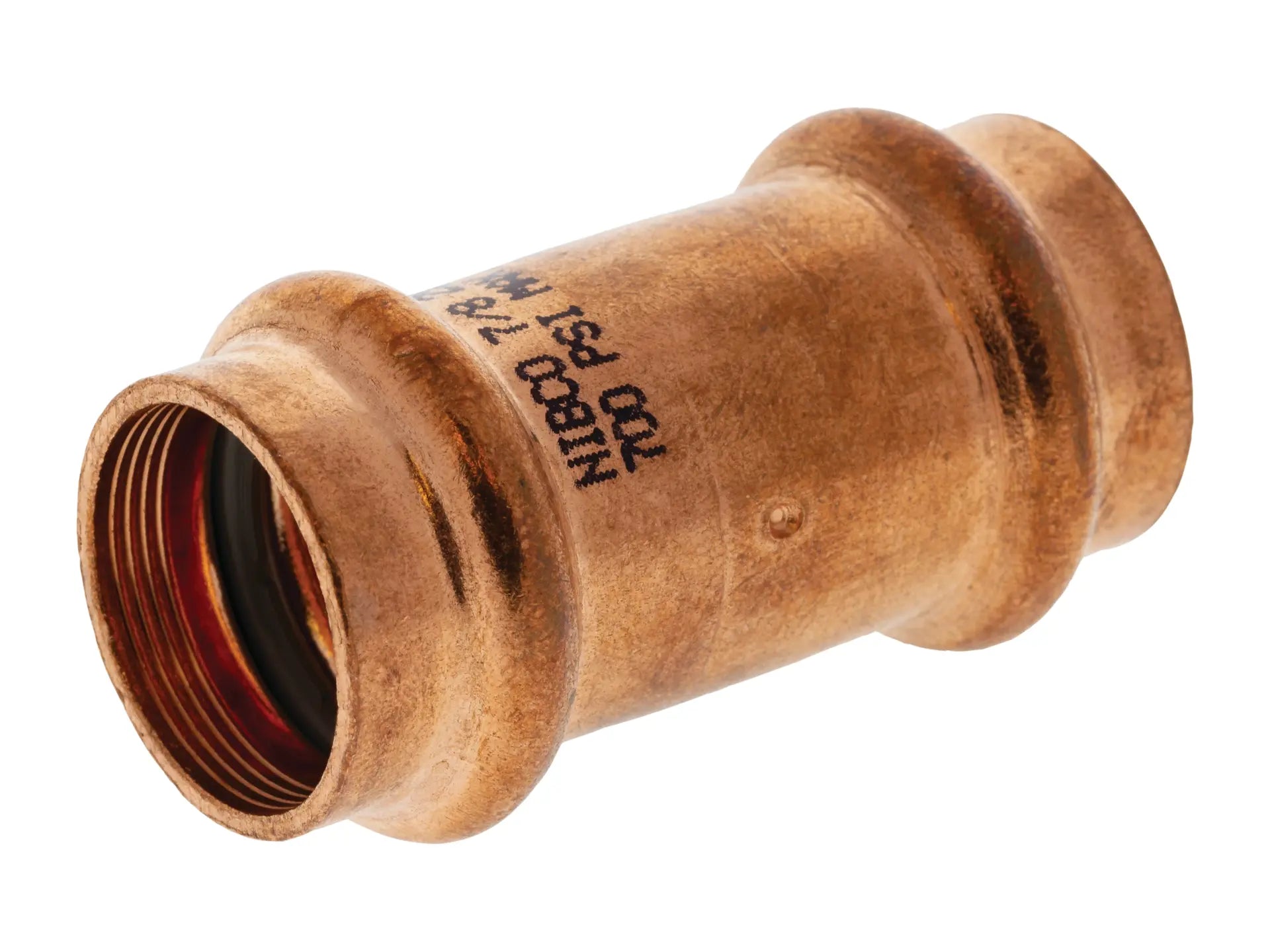

Nibco 900125RPC Pressacr PC9600-DS Coupling 7/8 in

Product Description

The NIBCO 900125RPC PressACR coupling is the fastest, easiest way to join copper tubing systems. Designed to join with seamless copper water tube in air conditioning and refrigeration applications systems, these press fittings can also be installed underground. The fitting provides a method to connect two lengths of tube.

• 500 mi vacuum
• Operating pressure 700 psi max
• Approved refrigerants - R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A and R434

Product Highlights

The NIBCO PressACR copper coupling features an inboard bead and gray HNBR O-ring. When properly crimped a unique "N" witness mark is clearly visible.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900125RPC
• Country of Origin: Domestic

Technical Specifications

• End Style: Press
• Fitting/Connector Type: Coupling
• Material: Wrot Copper
• Method of Manufacture: Cast
• Nominal Size: 7/8 in
• Pressure Rating: 700 psi
• Series: PC9600-DS
• Temperature Rating: -40 to 250 deg F
• Manufacturer: NIBCO
• Part Number: 900125RPC
• Model: PC9600-DS
• Type of Fitting: Coupling
• Nominal Pipe Size: 7/8"
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 2.25"
• Width: 1.24"
• Height: 1.24"
• Connection Type 1: Press
• Connection Type 2: Press
• Connection Type: Press
• Material Construction: Copper
• Operating pressure: 700 psi max
• Temperature range: -40 degrees F to 250 degrees F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600 and R600a
• Approved Oils: POE, PAG, MO, PAO, PVE and AB
• UL 207 Recognized: to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• eClass Classification: Press Couplings
