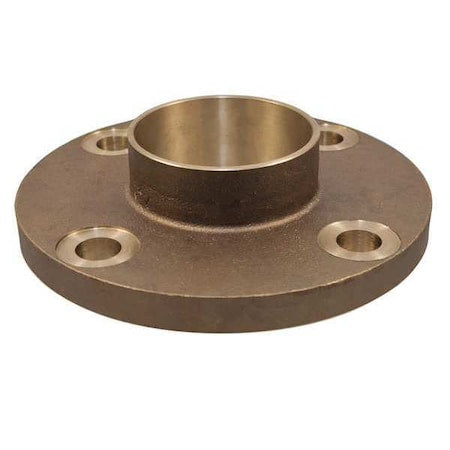

Nibco 771-LF-1-1/2 Class 150 Companion Flange 1-1/2 Inch

Product Description

The Nibco 771-LF-1-1/2 Class 150 Companion Flange is a reliable choice for your plumbing needs. Designed for use with air and non-potable water, this bronze flange offers durability and efficiency.

• Application: Air, Non-Potable Water
• Material: Bronze
• Connection Type: Cup x Flange

Product Highlights

The Nibco 771-LF-1-1/2 Class 150 Companion Flange features reliable construction and is suitable for various plumbing applications. It is designed to connect with a copper tube size of 1-1/2 inches and can withstand a maximum operating pressure of 327 psi.

Product Information

Standard Information

• Brand: Nibco
• MPN: 771-LF-1-1/2
• UPC: 039923317179

Technical Specifications

• Application: Air, Non-Potable Water
• Fitting Side A Connection Type: Cup
• Fitting Side B Connection Type: Flange
• Fitting Material: Bronze
• Max. Operating Pressure: 327 psi
• Max. Operating Temperature: 200 Degrees F
• Flange Outside Diameter: 5 inches
• Number of Bolt Holes: 4
• Flange Thickness: 7/16 inch
• Bolt Hole Diameter: 63/100 inch
• Standards: ASTM B584 Alloy C87600; Third-Party Certified To NSF/ANSI 61 Annex G; ASME B16.24 Design Standards
