NIBCO 600RS-CB Rolled Stop Coupling

Product Description

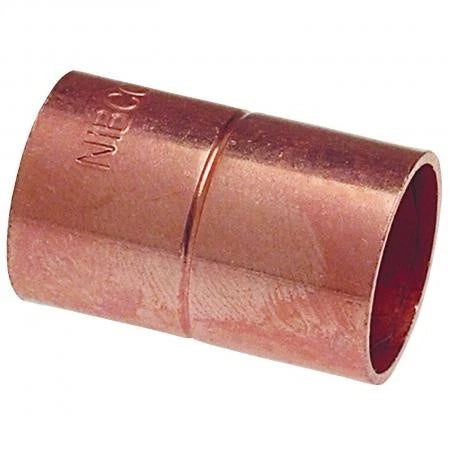

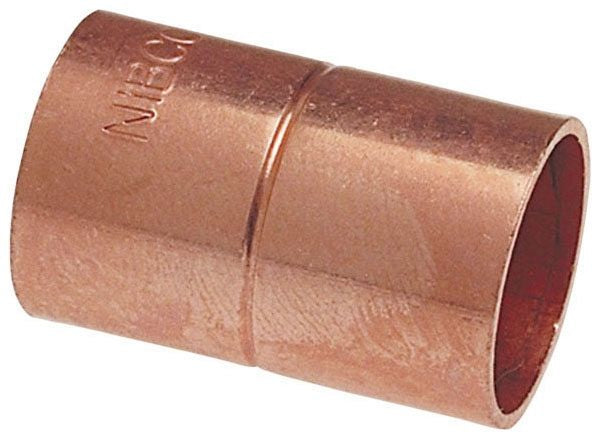

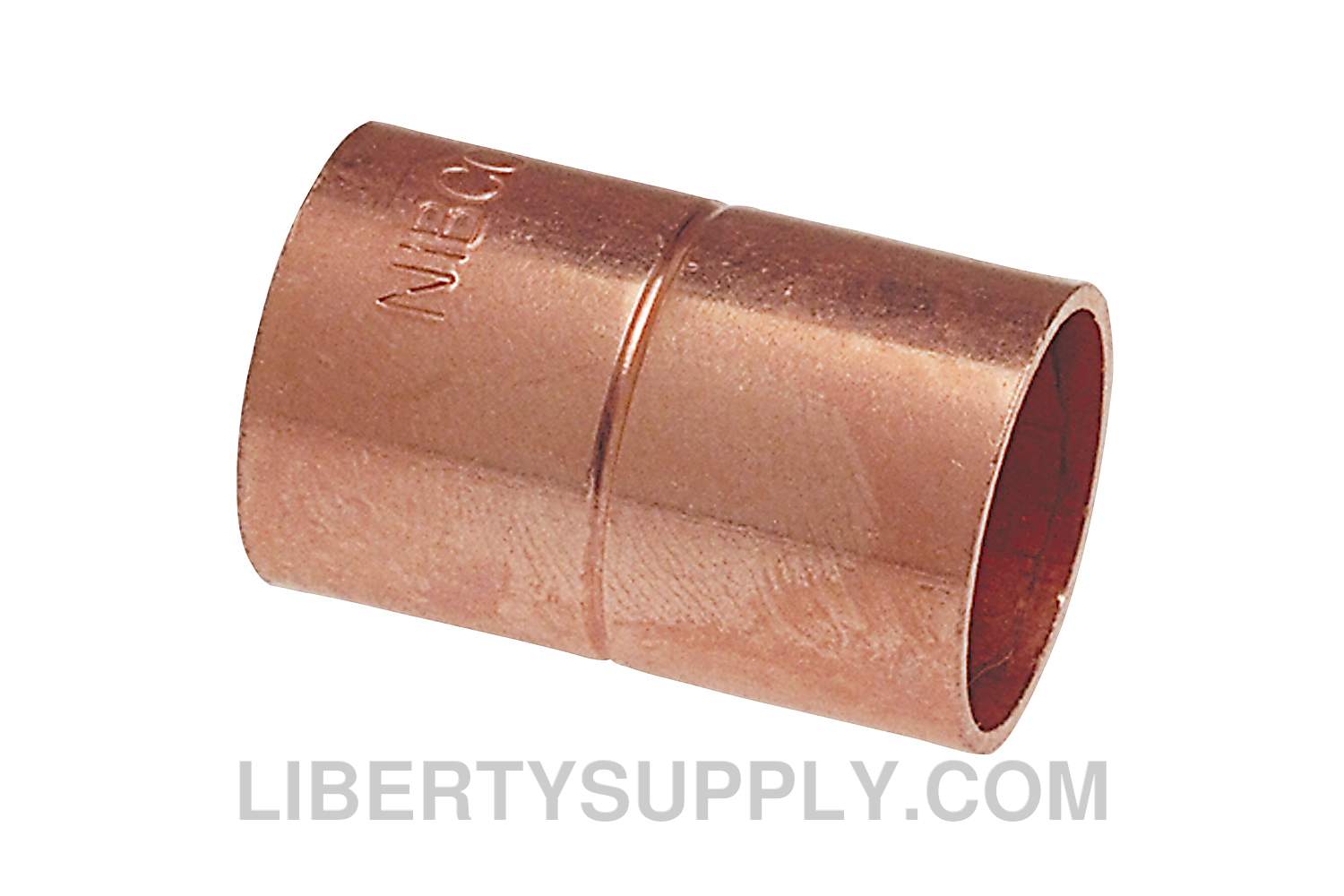

The NIBCO 600RS-CB is a lead-free wrot copper solder pressure coupling designed for connecting two lengths of tube in residential and commercial systems. This coupling is suitable for potable water, air conditioning, and refrigeration. Its female soldered end connections ensure a secure fit, while the rolled tube stop assists in maintaining alignment.

• Female soldered x female soldered end connection
• Includes a rolled tube stop
• Compatible with residential and commercial applications

Product Highlights

The NIBCO 600RS-CB is crafted from copper alloy C12200 and manufactured using a wrot process, ensuring durability and reliability in various settings.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 600RS-CB

Technical Specifications

• Material: Copper
• End Connection Type: Female Soldered x Female Soldered
• Fitting Type: Coupling
• Coupling Type: Straight Size
• Application: Residential and Commercial
• Nominal Pipe Size: 1/2 inches x 1/2 inches
• Material Specification: ASTM B75 Alloy C12200
• Applicable Standards: ASME B16.22, NSF/ANSI 61/372, NFPA 99, MSS SP-104, UL 207
• Lead Free: Yes
• Length: 1.09 inches
• Width: 0.69 inches
• Height: 0.69 inches
