NAVAC NMC1 Digital Electrical Clamp Meter

Product Description

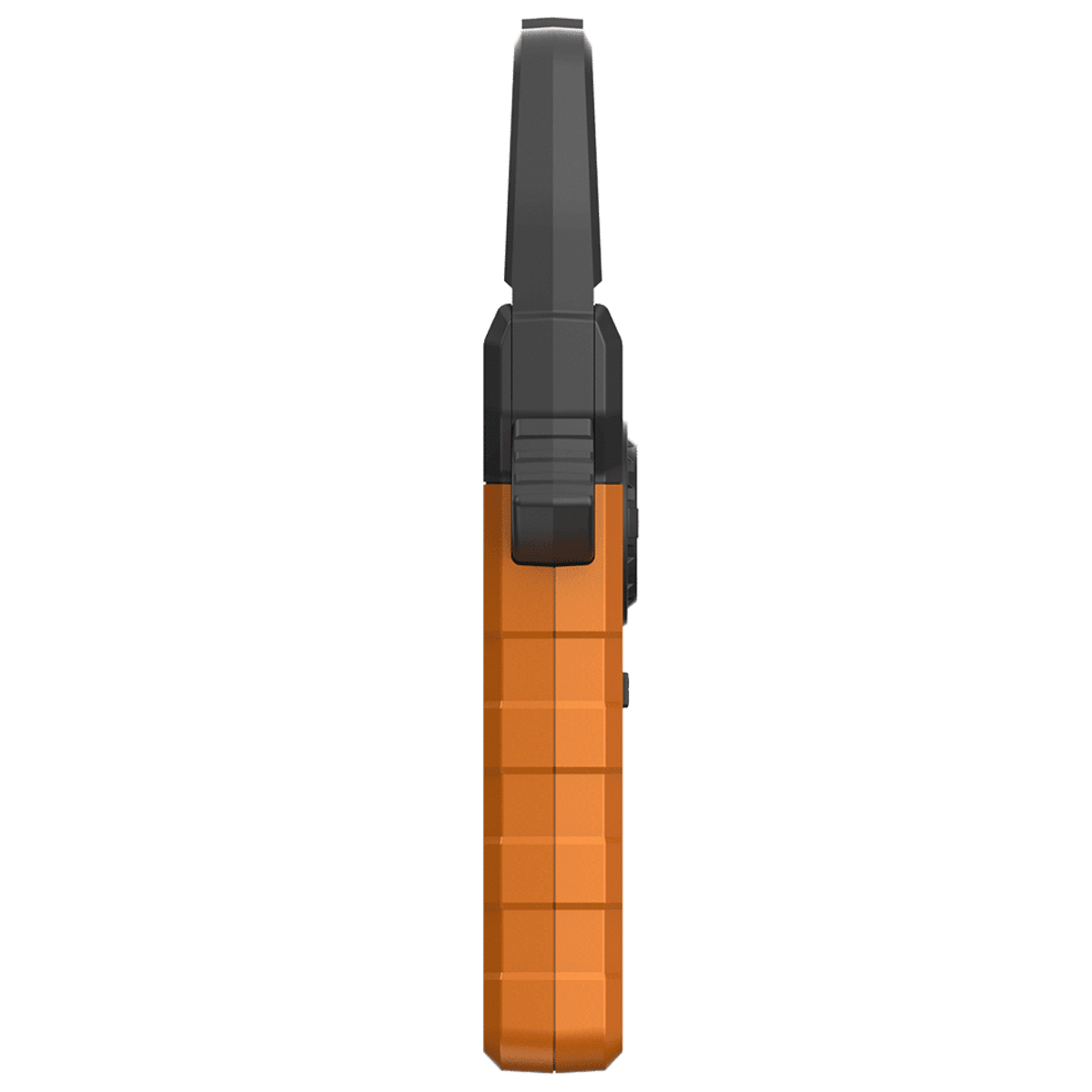

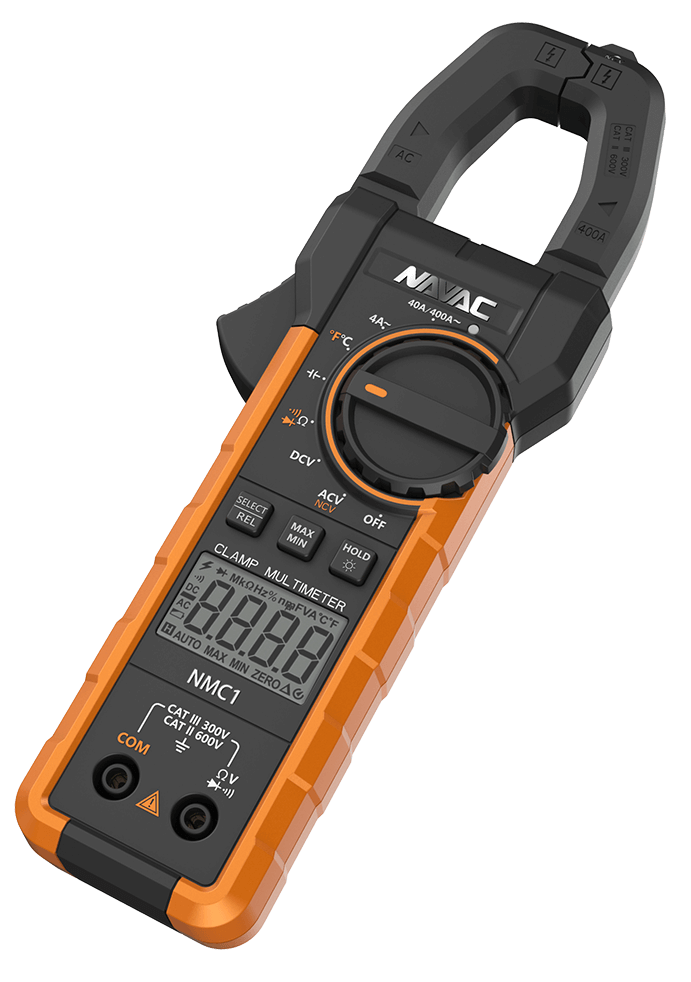

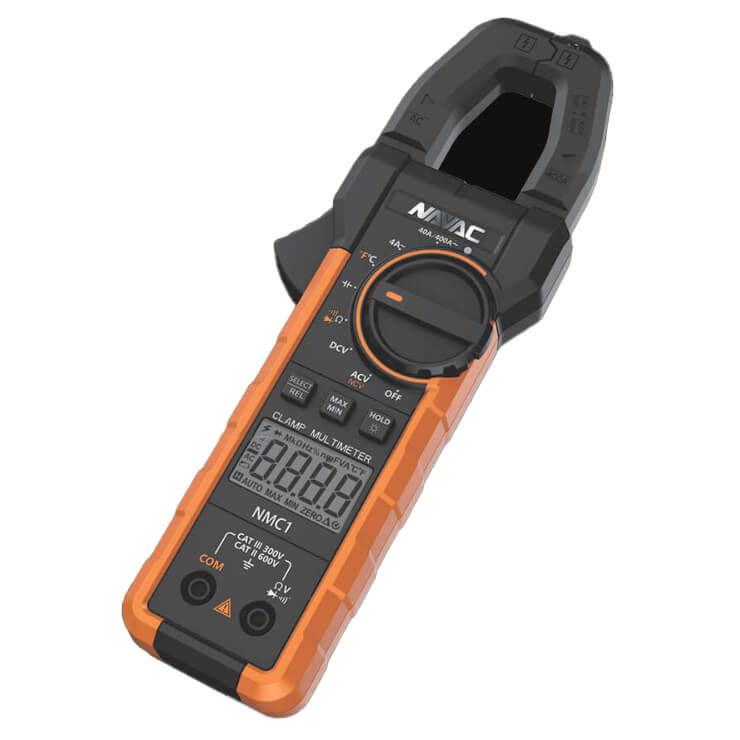

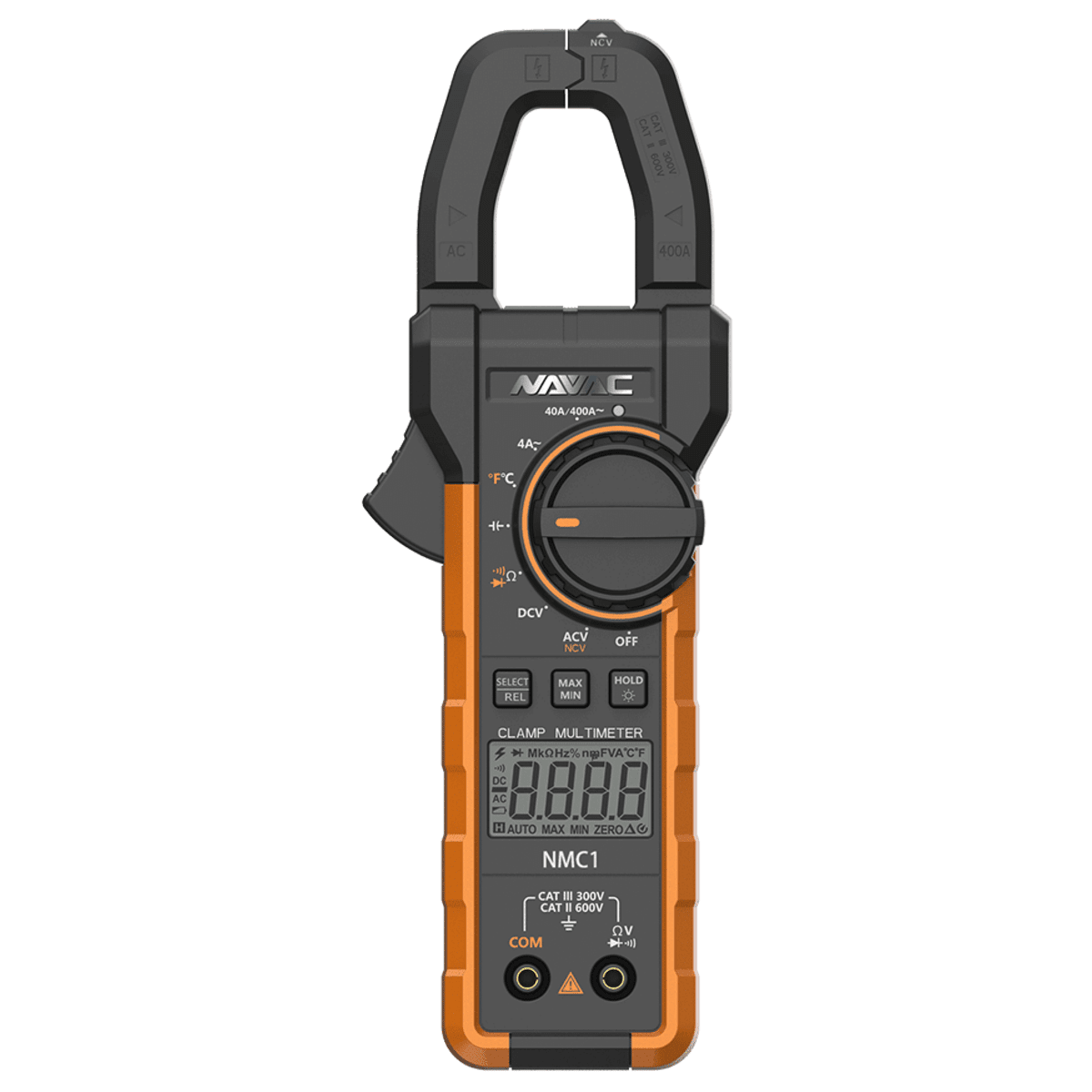

The NAVAC NMC1 Digital Electrical Clamp Meter provides reliable and accurate measurements of electrical current. This device features a high-precision smart chip for effective performance. The adjustable jaw allows for easy access around larger conductors. The large backlit LCD screen enhances visibility in various lighting conditions. The compact design of the meter is suitable for use in tight spaces.

• 400 A Maximum AC current
• Max Measurement Voltage of 600 V
• Temperature Measurement Range of -40°F to 1832°F

Product Highlights

This clamp meter is a key tool for HVAC technicians and electricians, enabling the measurement of AC/DC voltage, resistance, capacitance, and temperature.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NMC1

Technical Specifications

• Max Measurement AC Current: 400 A
• Max Measurement Voltage: 600 V
• Operating Temperature Range: -40 to 1832 degrees F
• Weight: 9.6 oz
• Dimensions: 8.7 inches x 2.7 inches x 1.2 inches
• Accessories Included: Test Leads, Type K Temperature Probe, Storage Bag
• Warranty: 1 year
