Multiple UNF100S 1IN Steel Union

Product Description

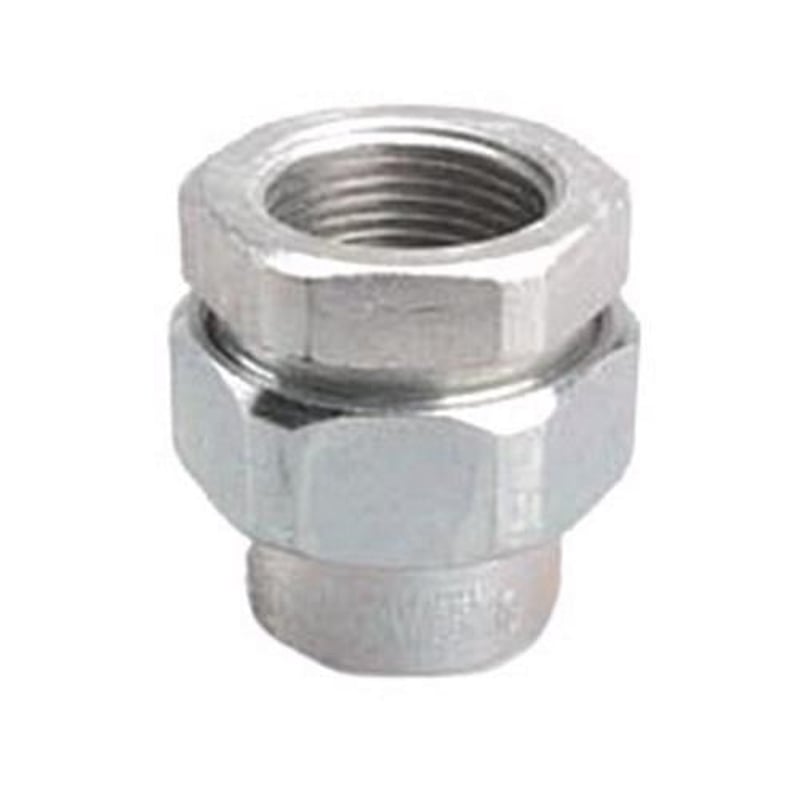

The Multiple UNF100S is a one-inch steel conduit union designed for rigid conduit applications. It features a tapered FNPT connection and is compatible with both Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC). The union is constructed from durable steel ensuring long-lasting performance. It provides a secure join between conduits, allowing for future access without needing to rotate the conduits.

• Trade Size: 1 inch
• Outside Diameter: 2-1/16 inches
• Length: 2 inches

Product Highlights

This union is UL certified for use in Class I, Division 1 and 2, Groups A, B, C, and D environments, making it suitable for hazardous locations.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Part Number: 2501

Technical Specifications

• Material: Steel
• Connection: Tapered FNPT
• Flexibility: RMC and IMC
• Outside Diameter: 2-1/16 inches
• Length: 2 inches
• Application: For Rigid Conduit and IMC
• Box Quantity: 5
• Specifications UNSPSC: 39131707
• Third Party Certification: UL File Number E-34997
