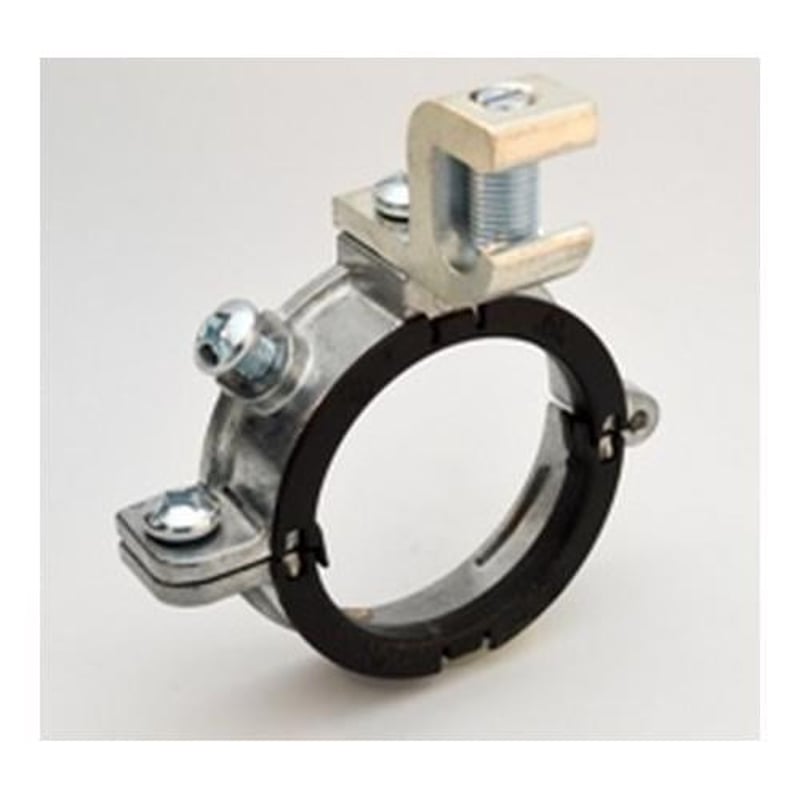

Multiple SGB-39040 4IN Split Grounding Bushing #6-250MCM

Product Description

The Multiple SGB-39040 is a four-inch split grounding bushing designed for effective electrical connections. It accommodates wire sizes from six to two hundred fifty square millimeters. This component is made of zinc die-cast material, ensuring durability and reliability for various applications.

• Compatible with wire sizes ranging from #6 to 250 MCM.
• Insulated design for safety and enhanced performance.
• Patented features ensure effective installation in electrical conduit systems.

Product Highlights

This grounding bushing is ideal for situations where wires have been pulled through rigid or IMC conduit. It features UV-stabilized insulators and stainless steel hardware for use in solar and outdoor settings.

Product Information

Standard Information

• Size: 4 inches
• Material: Zinc Alloy

Technical Specifications

• Type: Split
• Finish: Ball burnish
• Temperature Rating: 150 degrees Celsius
• Application: Grounding lug for #6 to 250 MCM wires
• UNSPSC: 39121312
• Standard: cULus Listed
• Box Quantity: 20
• Trade Size: 4IN
