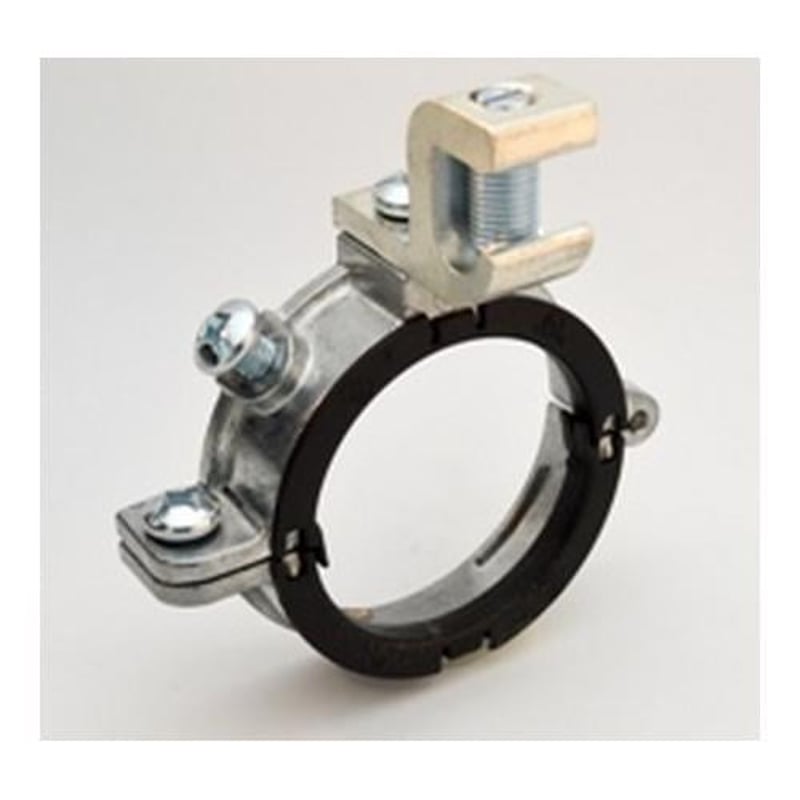

Multiple SGB-387CL Split Grounding Bushing 2-1/2 Inch 14-1/0

Product Description

The Multiple SGB-387CL is a split grounding bushing designed for applications requiring insulation and grounding. The bushing measures two and a half inches and features a grounding lug suitable for wire sizes up to fourteen gauge and one-aught AWG. Made from zinc die cast, this product ensures durability and effectiveness in grounding.

• Insulated bushing for effective grounding.
• Compatible with wire sizes #14 to #1/0.
• Designed for use with Rigid and IMC conduits.

Product Highlights

Features UV stabilized insulators and stainless steel hardware, making it suitable for solar installations and outdoor applications.

Product Information

Standard Information

• Brand: Multiple
• Type: Split

Technical Specifications

• Material: Zinc Alloy
• Color: Grey with Black Insulator
• Size: 2-1/2 inches
• Trade Size: 2-1/2 Inch
• Temperature Rating: 150°C
• Application: Insulated bushing used in grounded wire applications.
• Standard: cULus listed
• Special Features: Grounding lug wire capacity #4 to #1/0
