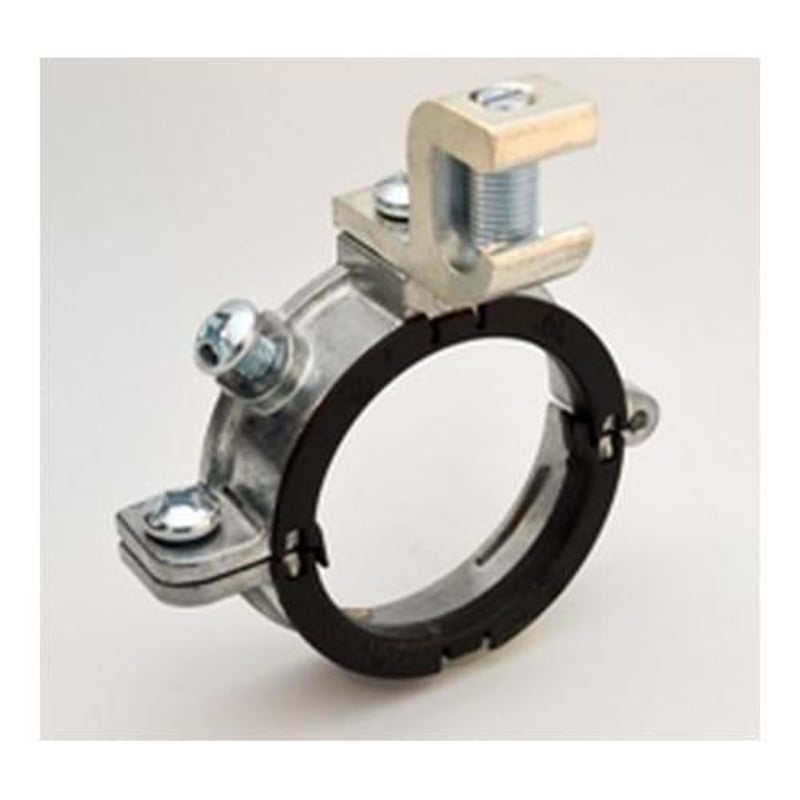

Multiple SGB-38740 Split Grounding Bushing 6-250MCM 2-1/2IN

Product Description

The Multiple SGB-38740 is a split grounding bushing designed for use in Rigid or IMC conduit. This insulated bushing accommodates wire sizes ranging from #6 to 250 MCM. It features a durable zinc alloy construction and is rated for a maximum temperature of one hundred fifty degrees Celsius.

• Insulated design for enhanced safety.
• Durable zinc die cast material.
• Compatible with conduit installations.

Product Highlights

Ideal for grounding applications, this bushing is perfect for installations where wires have already been pulled through conduit. Its patented features include UV stabilized insulators and stainless steel hardware, making it suitable for outdoor use.

Product Information

Standard Information

• Trade Size: 2-1/2 Inches
• Material: Zinc Alloy

Technical Specifications

• Application: For use in Rigid/IMC conduit requiring insulated bushings.
• Grounding Lug Wire Capacity: #6 to #250 MCM
• Finish: Ball burnish
• Standard: cULus listed
• Temperature Rating: 150 Degrees Celsius
• UNSPSC: 39121312
• Sub Brand: Mighty-Rite
• Catalog Description: Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 2-1/2 Inch, 6-250 Lug
