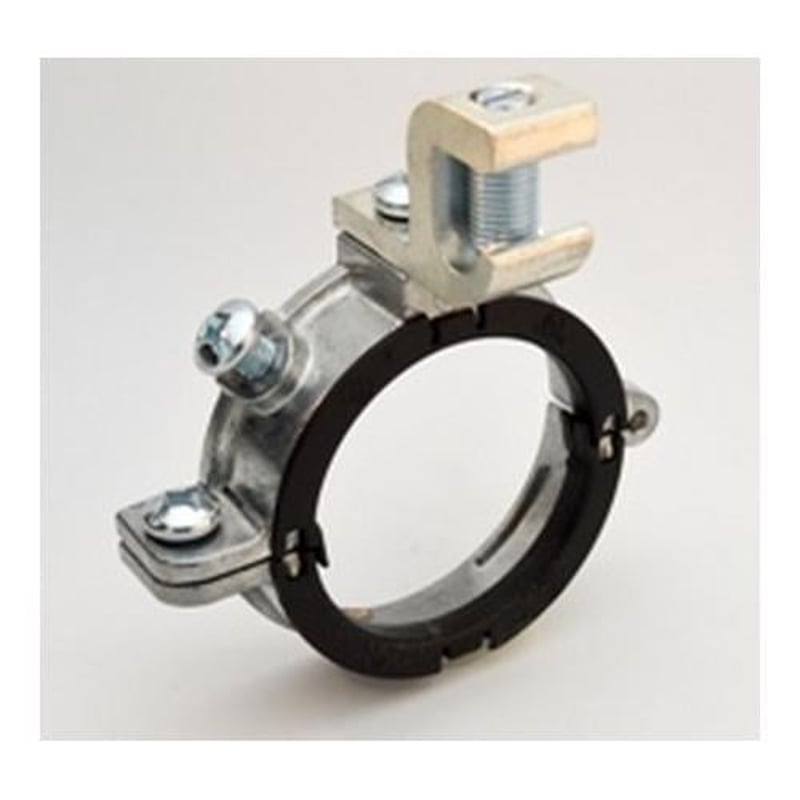

Multiple SGB-385CL 1 1/2IN Split Grounding Bushing #14-1/0Awg

Product Description

The Multiple SGB-385CL is a split grounding bushing designed for use with conductors rated between #14 and 1/0 AWG. This product features a zinc die cast construction, ensuring strength and durability. The bushing is insulated, providing added safety for installations. It fits trade sizes of one and one half inches, making it suitable for various applications.

• Compatible with standard rigid and IMC conduits.
• Features a patented design with UV stabilized insulators.
• Includes a grounding lug made from aluminum alloy 6061-T6.

Product Highlights

This split grounding bushing is ideal for installations where wires have been pulled through conduits. It simplifies the process of grounding by allowing easy access to the grounding lug.

Product Information

Standard Information

• Brand: Multiple
• Part Number: SGB-385CL

Technical Specifications

• Trade Size: 1-1/2 inches
• Material: Zinc Alloy
• Color: Grey with Black Insulator
• Type: Split
• Temperature Rating: 150 degrees Celsius
• UNSPSC: 39121312
• Application: Used for grounding in conduit systems
• Detail: Grounding Lug Wire Capacity #4 to #1/0
