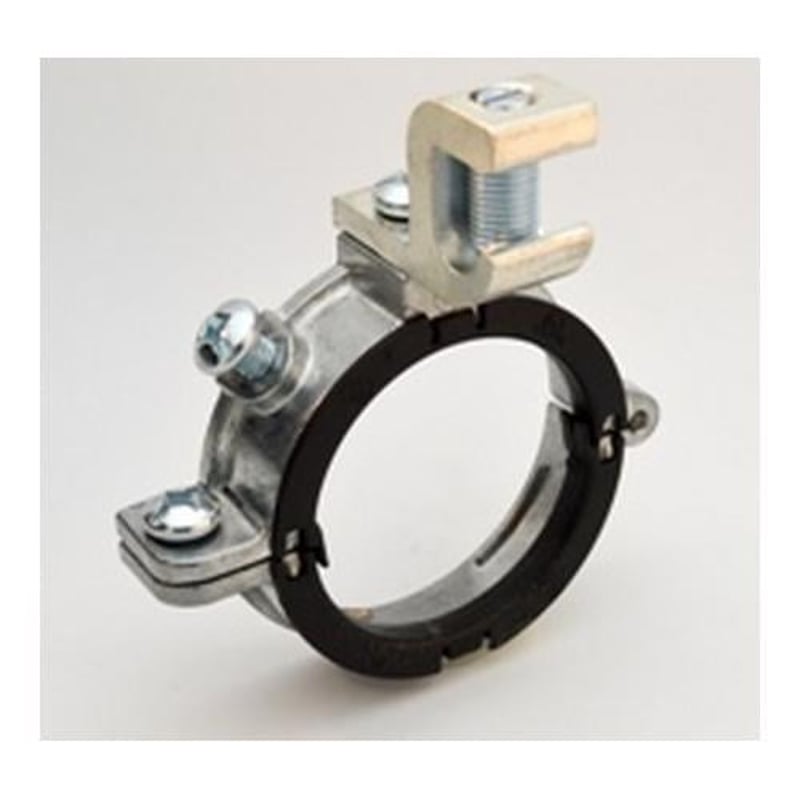

Multiple SGB-38414 1 1/4IN Split Grounding Bushing #4-14 Awg

Product Description

The Multiple SGB-38414 is a split grounding bushing designed for safe and effective grounding. It is an insulated component made from zinc die cast. This bushing fits wires from size four to fourteen AWG. The diameter of this unit is 1 1/4 inches.

• Type: Split Grounding Bushing
• Material: Zinc Alloy
• Temperature Rating: 150 Degrees Celsius

Product Highlights

The SGB-38414 is suitable for applications where wires need protection as they pass through Rigid or IMC conduits.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 215006

Technical Specifications

• Size: 1-1/4 inches
• Type: Split
• Material: Zinc Alloy
• Color: Grey with Black Insulator
• UNSPSC: 39121312
• Standard: cULus
• Special Features: Grounding Lug Wire Capacity #14 - #4
• Applications: For use in Rigid/IMC conduit to accommodate wires
