Multiple GLL6C 2IN Malleable Iron Grounding Bushing

Product Description

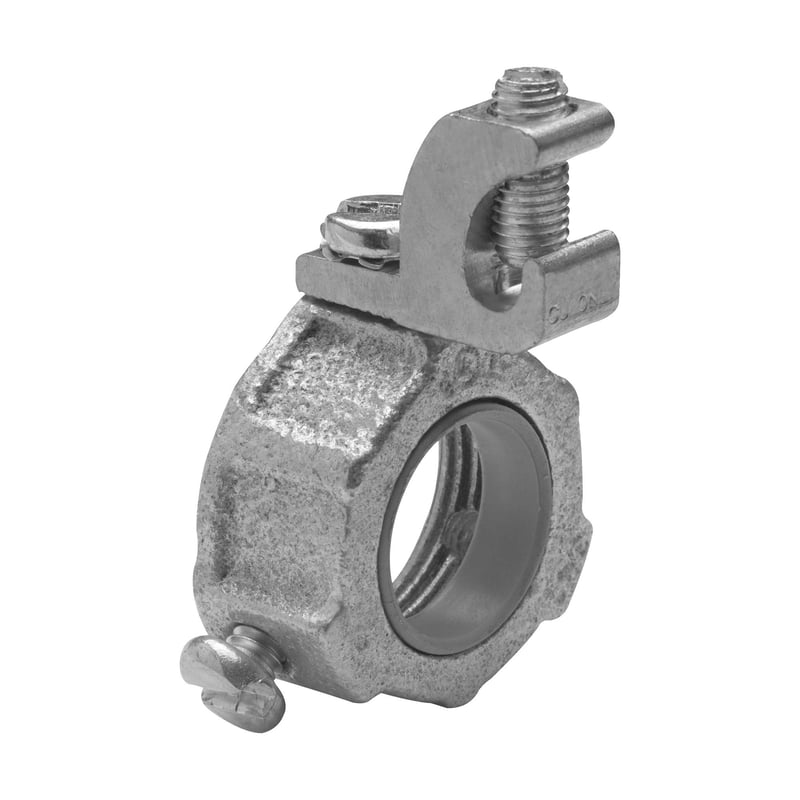

The Eaton Crouse-Hinds series GLL6C is a two-inch malleable iron grounding bushing. It is designed for use with rigid and intermediate metal conduit (IMC). This product features a copper lug suitable for wire sizes from #4 to #14 AWG. The grounding bushing can withstand temperatures up to one hundred five degrees Celsius and is threaded for secure installation.

• Durable malleable iron construction
• Compatible with #4 to #14 AWG copper conductors
• Rated for use in various commercial and institutional settings

Product Highlights

This grounding bushing provides reliable grounding solutions for electrical installations.

Product Information

Standard Information

• Brand: Eaton
• Part Number: 432473

Technical Specifications

• Size: 2 inches
• Type: Grounding bushing
• Material: Malleable iron body, plastic throat liner
• Connection: Threaded
• Temperature Rating: 105 degrees Celsius
• Dimensions: 2.75 inches x 2.75 inches x 0.88 inches
• Box Quantity: 10
• Application: Commercial and institutional buildings
