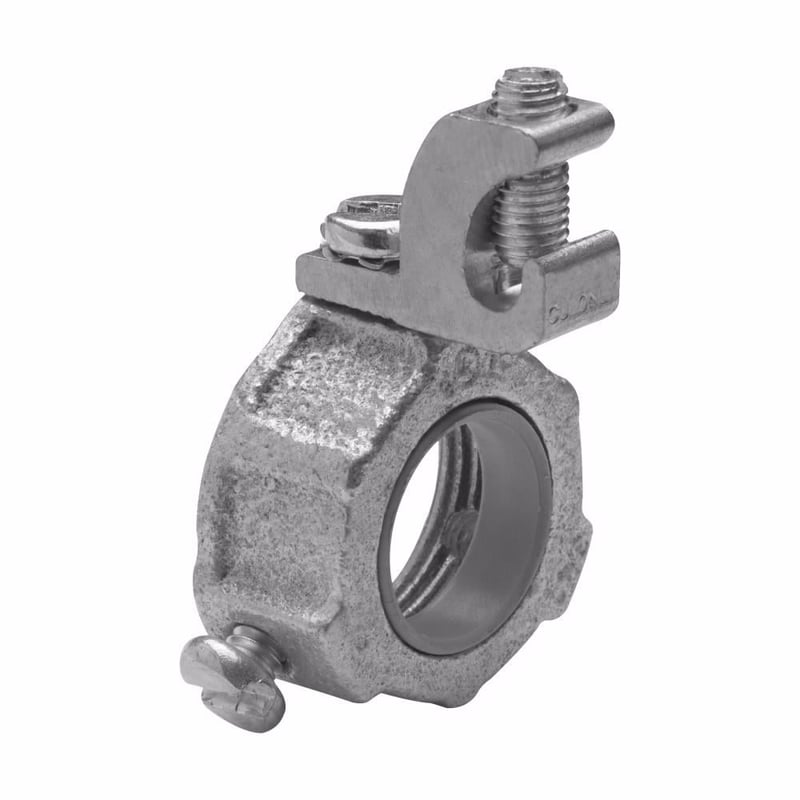

Multiple GLL2C 3/4IN Malleable Iron Grounding Bushing

Product Description

The Eaton Crouse-Hinds series GLL2C is a three-quarter inch grounding bushing made from malleable iron. It is designed for use with rigid and intermediate metal conduit (IMC). This grounding bushing features a copper lug accommodating wire sizes from #4 to #14 AWG. The unit has a temperature rating of one hundred five degrees Celsius. It offers a threaded connection for secure installation.

• Malleable iron construction ensures durability.
• Copper lug for reliable electrical connections.
• Rated for high-temperature applications up to one hundred five degrees Celsius.

Product Highlights

This grounding bushing is ideal for use in commercial and institutional buildings. Its robust design resists corrosion and withstands temperature extremes, making it suitable for various environments.

Product Information

Standard Information

• Brand: Multiple
• Product Type: Grounding bushing

Technical Specifications

• MPN: GLL2C
• Trade Size: 3/4 IN
• Material: Malleable iron body with plastic throat liner
• Connection: Threaded
• Temperature Rating: 105 Deg C
• UL and CSA Approved: Yes
• Box Quantity: 50
• Application: Commercial / Institutional Buildings
