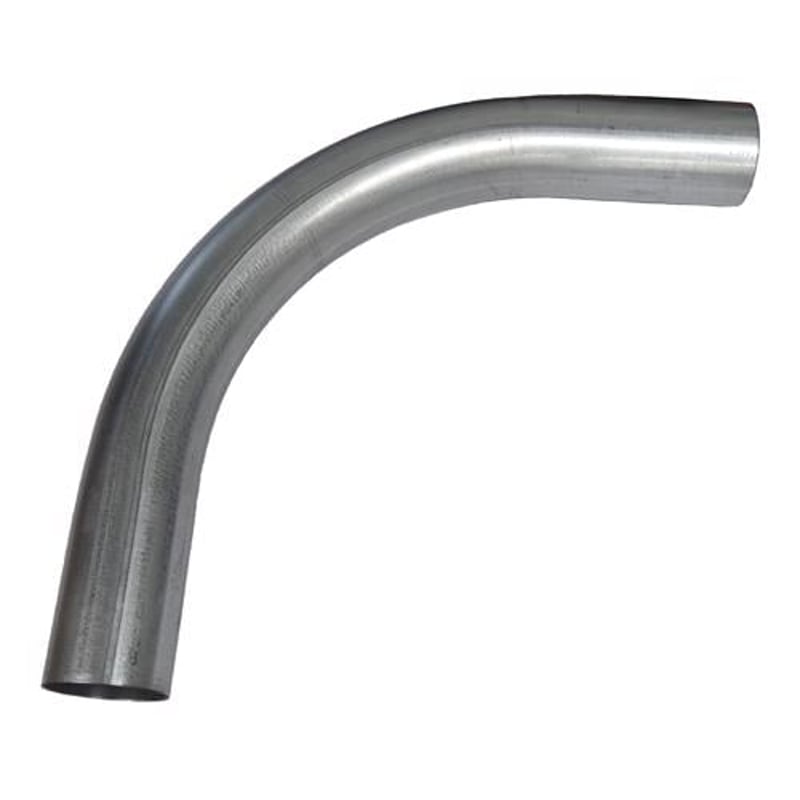

Multiple 8350 4IN EMT Elbow 90 Degrees

Product Description

The Multiple 8350 4IN EMT Elbow 90 Degrees is an essential component in electrical installations. This elbow allows for a smooth change in direction for conduit runs, ensuring effective routing of electrical wiring.

• Constructed from galvanized steel.
• Designed for use with electrical metallic tubing (EMT).
• Meets UL 797 and ANSI C80.3 standards.

Product Highlights

Provides reliable performance and protection for electrical wiring.

Product Information

Standard Information

• Material: Steel
• Type: Elbow

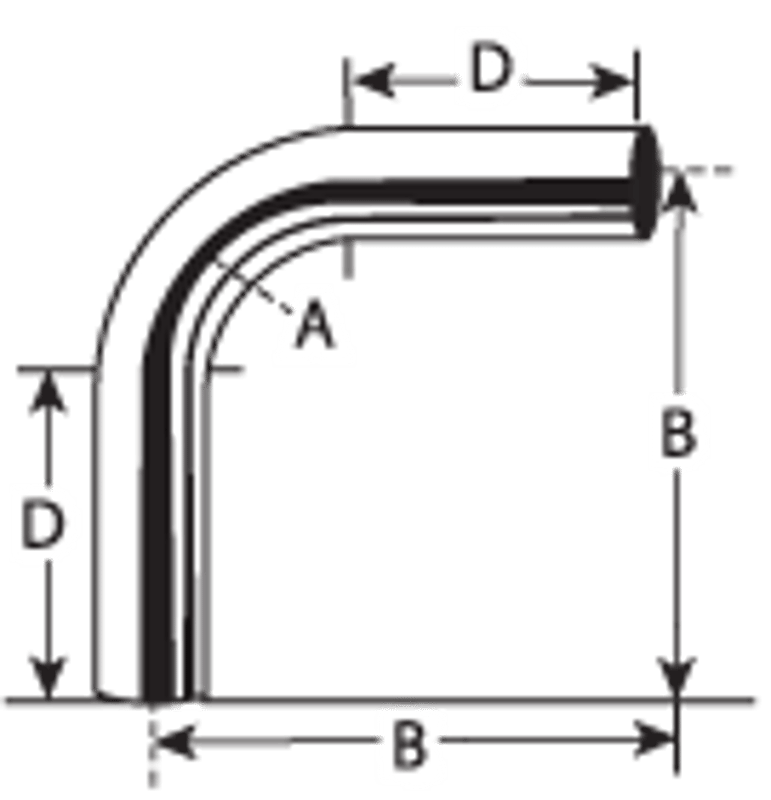

Technical Specifications

• Trade Size: 4IN
• Bend Radius: 16 inches
• Inside Diameter: 4.334 inches
• Outside Diameter: 4.500 inches
• Wall Thickness: 0.083 inches
• Gauge: 14
• Finish: Galvanized
• Application: Used to change the direction of a raceway
