Multiple 8348 3IN EMT Elbow 90 Degrees

Product Description

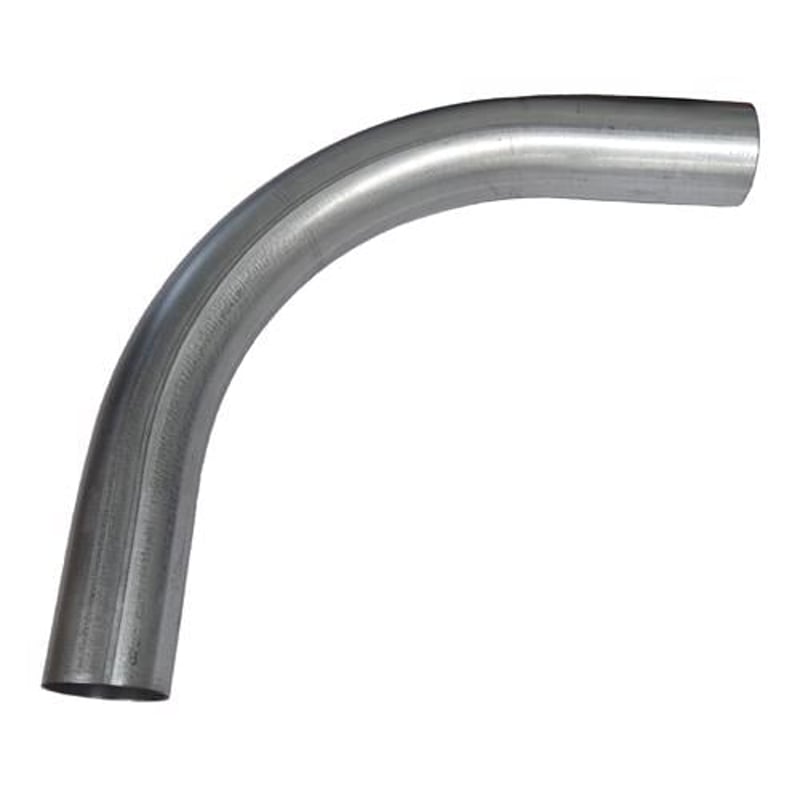

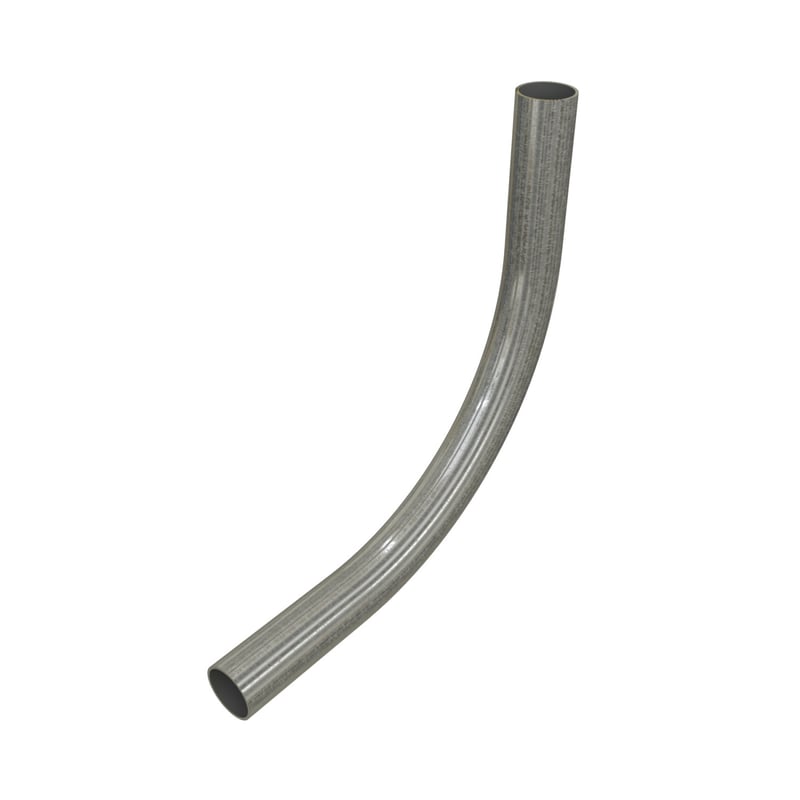

The Multiple 8348 is a three-inch EMT elbow designed for electrical metallic tubing applications. This 90-degree elbow connects two sections of EMT conduit to change the direction of the raceway.

• Manufactured from galvanized steel for durability and corrosion resistance.
• Features an E-Z Pull interior coating for smooth wire pulling.
• Meets UL 797 and ANSI C80.3 standards for safety and quality.

Product Highlights

This elbow provides a reliable connection with optimal EMI shielding and mechanical protection for conductors.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8348

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Trade Size: 3IN

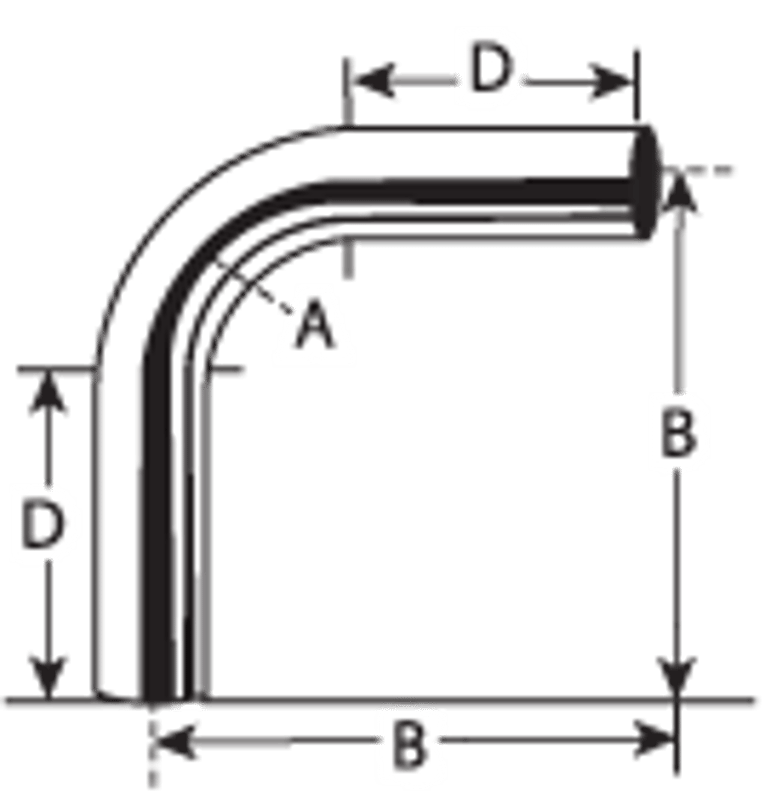

• Bend Radius: 13
• Wall Thickness: 0.072 inches
• Inside Diameter: 3.356 inches
• Outside Diameter: 3.500 inches
• Special Features: Inline galvanized OD and epoxy modified acrylic ID
