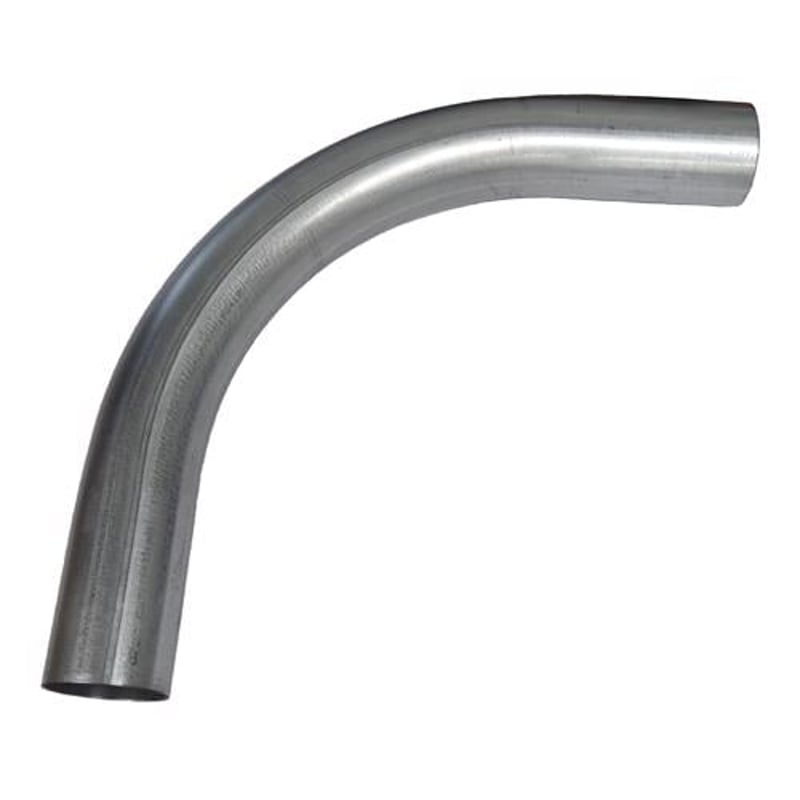

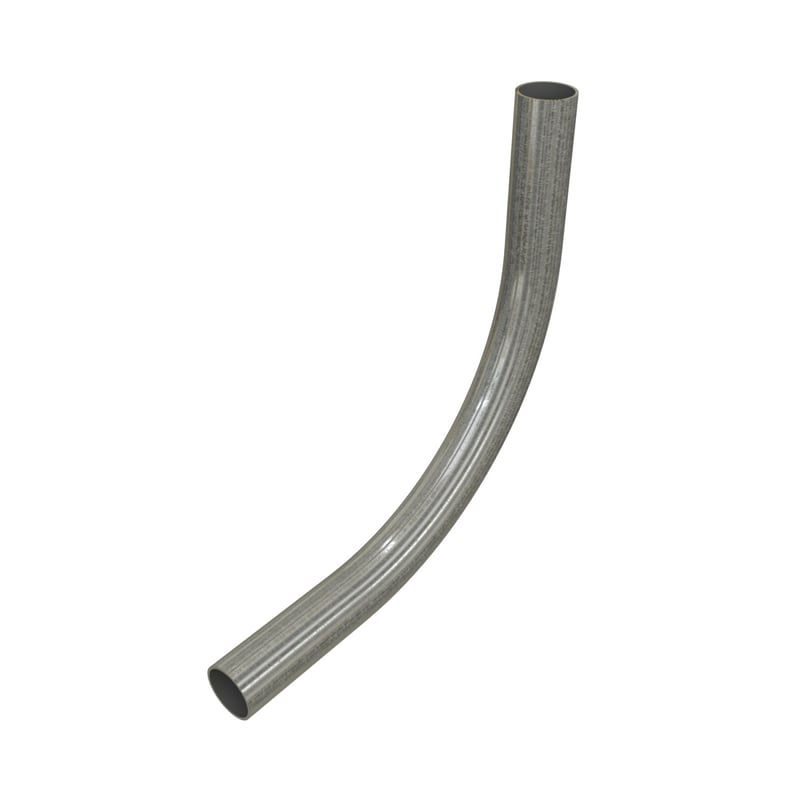

Multiple 8347 2 1/2IN EMT Elbow 90 Degrees

Product Description

The Multiple 8347 is a two and a half inch EMT elbow designed for a ninety-degree angle. This product is made from galvanized steel and is suitable for electrical metallic tubing applications.

• Hot galvanized steel using a patented process for durability.
• E-Z Pull interior coating ensures easy wire pulling.
• Meets safety standards from Underwriters Laboratories.

Product Highlights

This elbow provides excellent protection for electrical conductors and effective EMI shielding.

Product Information

Standard Information

• Product Name: EMT Conduit Elbow
• Brand Name: Multiple

Technical Specifications

• Type: Elbow
• Material: Steel
• Size: 2 1/2 inches

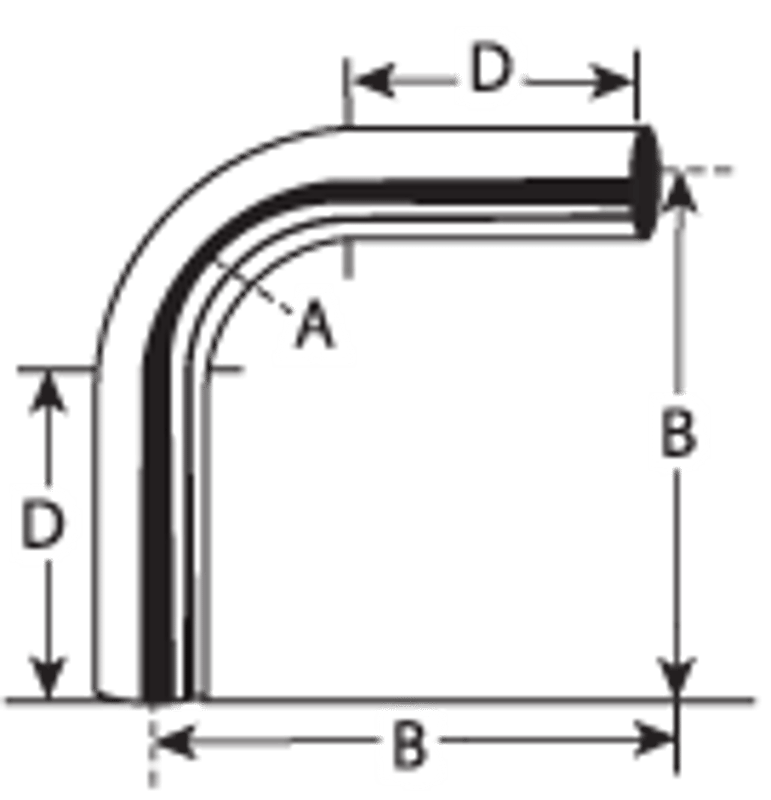

• Bend Radius: 10-1/2 inches
• Standard Compliance: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Wall Thickness: 0.072 inches
• Inside Diameter: 2.371 inches
• Outside Diameter: 2.875 inches
