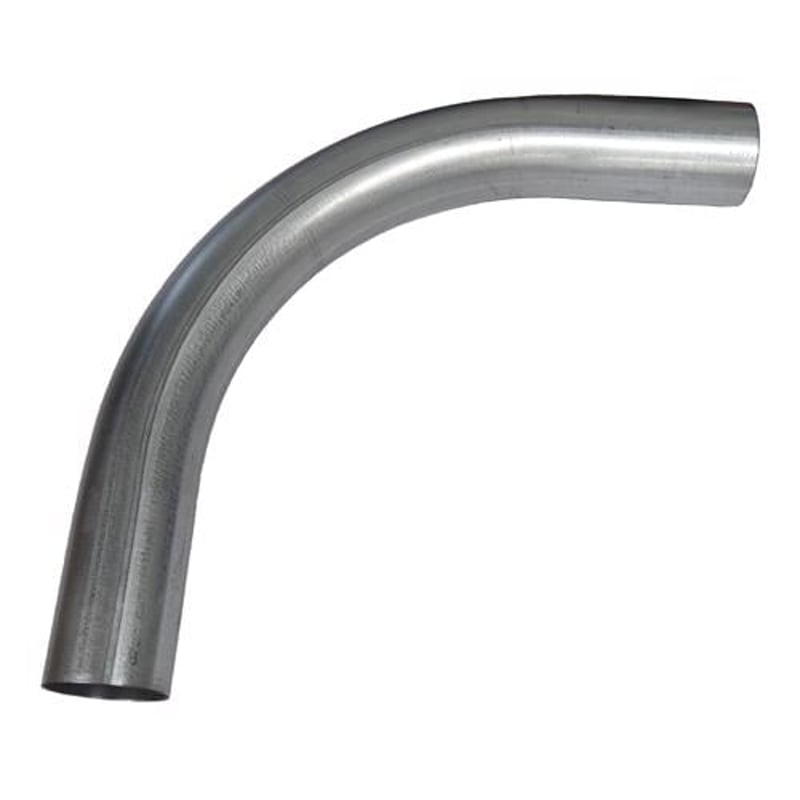

Multiple 8345 1 1/2IN EMT Elbow 90 Degrees

Product Description

The Multiple 8345 is a one and one half inch EMT elbow used for changing the direction of electrical metallic tubing. This elbow features a ninety-degree angle and is made from galvanized steel for durability and reliability.

• Compact design for easy installation
• Compatible with EMT conduits
• High-quality galvanized steel construction

Product Highlights

The 8345 elbow is suitable for various electrical installations where direction changes are necessary.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 8345

Technical Specifications

• Material: Steel
• Trade Size: 1 1/2IN

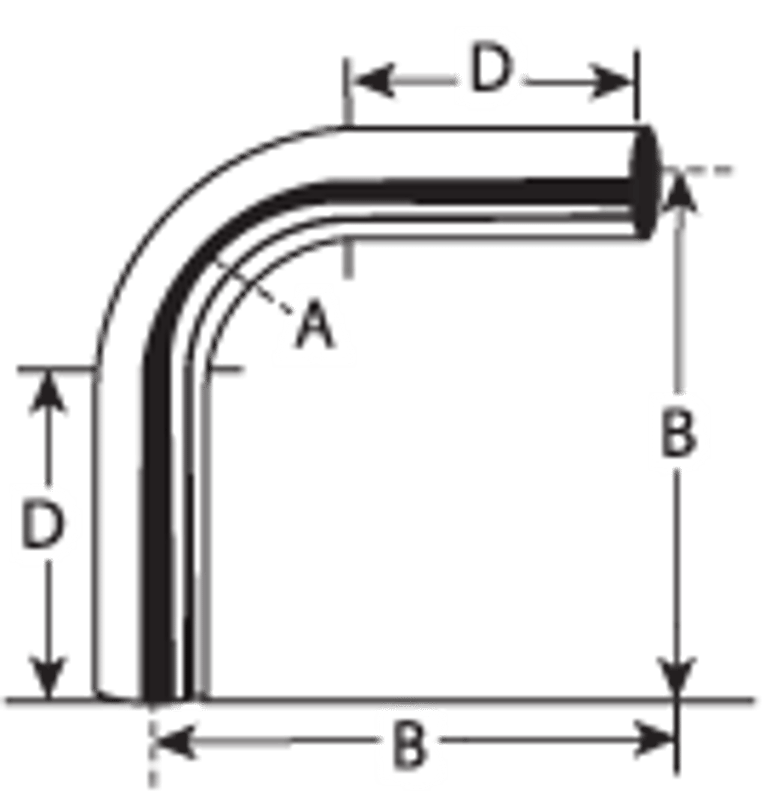

• Bend Radius: 8-1/4 inches
• Wall Thickness: 0.065 inches
• Inside Diameter: 1.610 inches
• Outside Diameter: 1.740 inches
• Finish: Galvanized
• Standard Compliance: UL797 & ANSI C80.3
