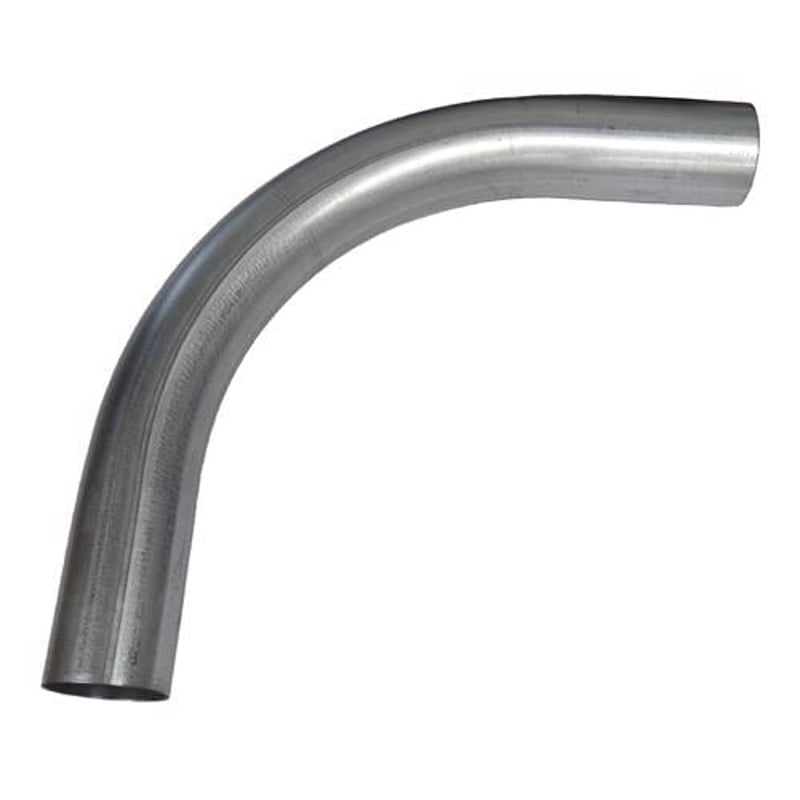

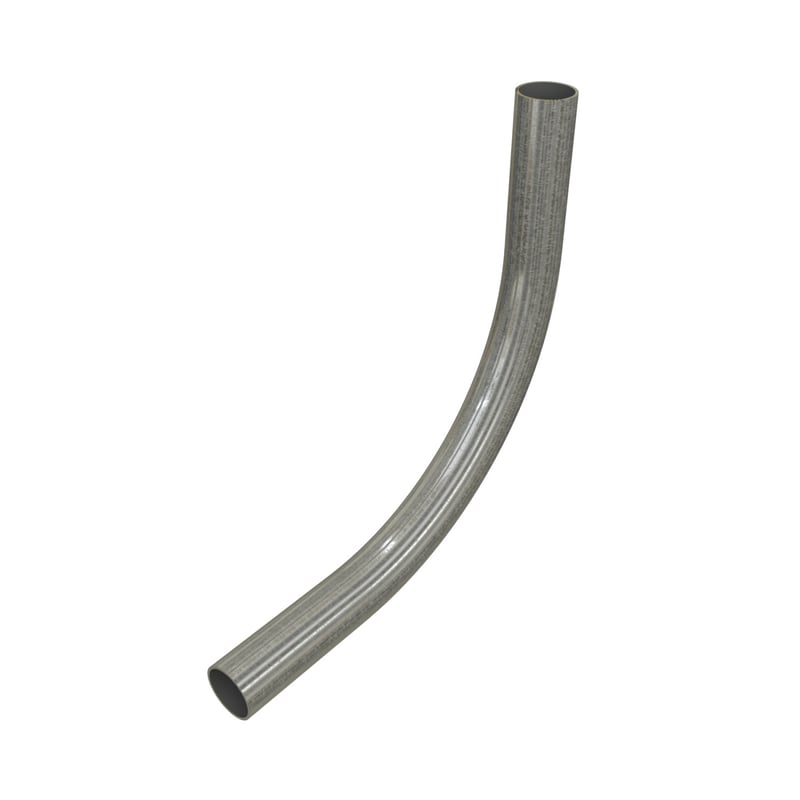

Multiple 8344 1 1/4IN EMT Elbow 90 Degrees

Product Description

The Multiple 8344 is a 1 1/4 inch EMT elbow designed for electrical conduit applications. This 90-degree elbow is made from galvanized steel, ensuring strong performance. It effectively changes the direction of electrical metallic tubing conduits in tight spaces.

• Constructed from hot galvanized steel.
• Interior E-Z Pull coating for easy wire pulling.
• Meets Underwriters Laboratories safety standard UL 797.

Product Highlights

This elbow provides excellent mechanical protection for conductors. It is ideal for use in applications where change in direction is required within conduit systems.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 8344

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Trade Size: 1 1/4 IN
• Application: Used to change the direction of a raceway

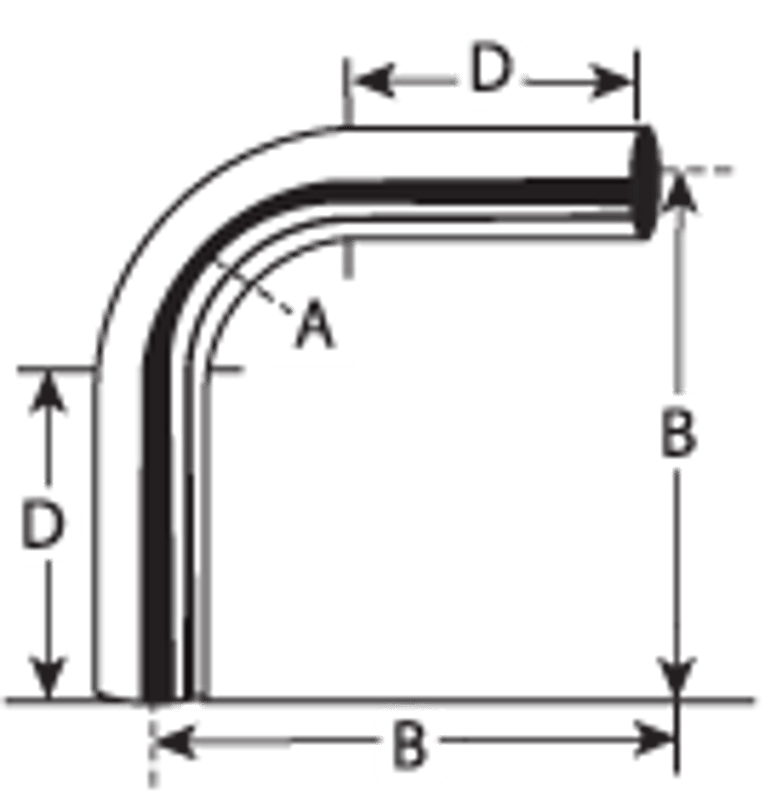

• Bend Radius: 7-1/4 inches
• Inside Diameter: 1.380 inches
• Outside Diameter: 1.51 inches
• Wall Thickness: 0.065 inches
