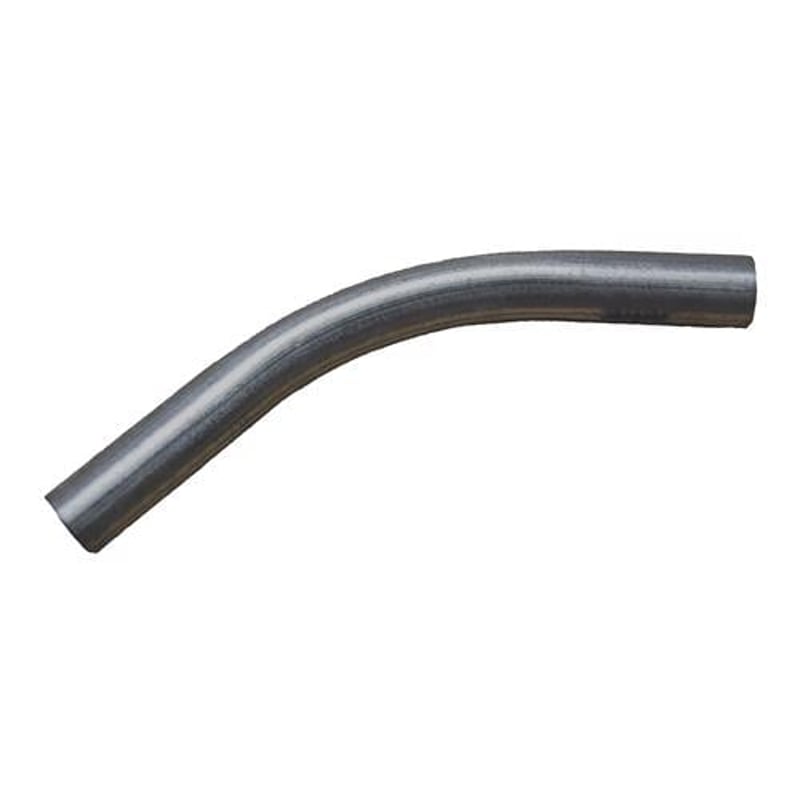

Multiple 8291 3 1/2IN EMT Elbow 45 Degrees

Product Description

The Multiple 8291 is a 3 1/2 inch EMT elbow designed for a 45-degree angle turn. It is made and melted in the United States, featuring a galvanized outside diameter and an epoxy modified acrylic inside diameter. It is recognized as an Equipment Grounding Conductor by the NEC.

• Standard radius EMT elbow
• Used to change the direction of raceways
• UL 797 and CSA C22.2 compliant

Product Highlights

This conduit elbow is made from EMT material, ensuring durability and functionality in electrical installations.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8291

Technical Specifications

• Type: Standard Radius EMT Elbow
• Trade Size: 3 1/2 IN
• Outside Diameter: 4.000 inches
• Inside Diameter: 3.834 inches
• Material: EMT
• Standards: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Application: Used to change the direction of a raceway
• Flexibility: No
