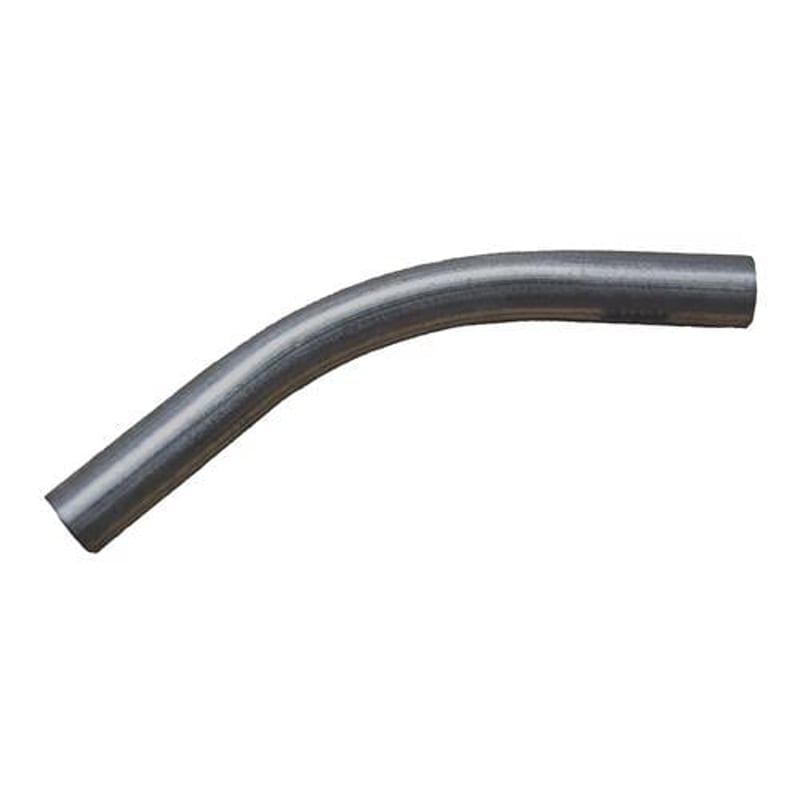

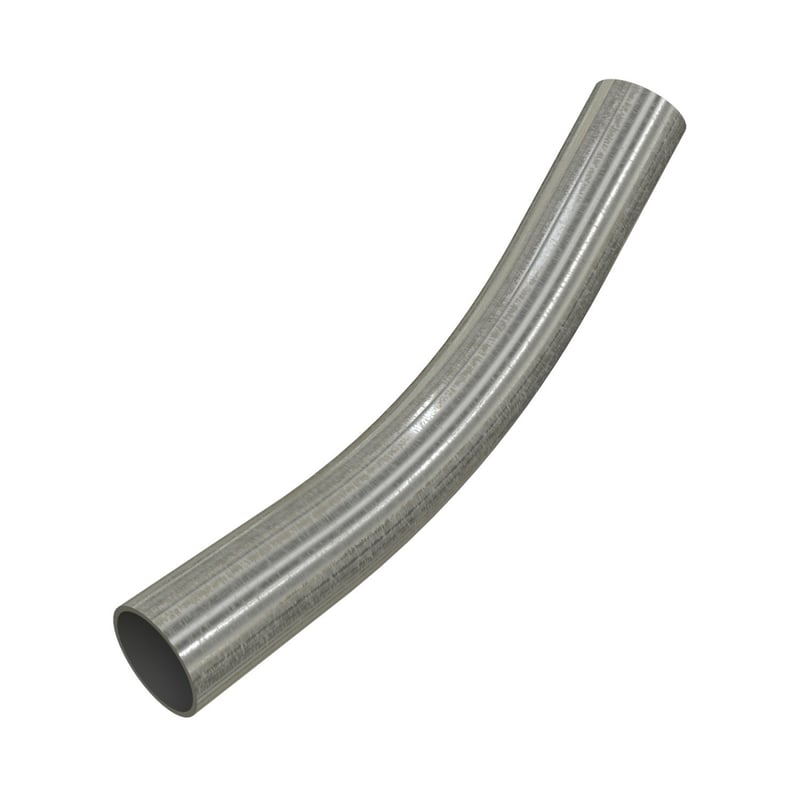

Multiple 8290 3IN EMT Elbow 45 Degrees

Product Description

The Multiple 8290 3IN EMT Elbow 45 Degrees is a conduit fitting used to change the direction of electrical metallic tubing. This elbow is made of galvanized steel, ensuring durability and resistance to rust. It is designed for use in various electrical installations where a 45-degree turn in the conduit is required.

• Constructed from hot galvanized steel for enhanced longevity.
• Features an E-Z Pull interior coating that makes wire pulling faster.
• Compliant with Underwriters Laboratories Safety Standard UL 797 for safety assurance.

Product Highlights

This elbow provides excellent protection for conductors and optimal EMI shielding characteristics, making it a reliable choice for electrical installations.

Product Information

Standard Information

• Brand: Multiple
• Part #: 17268

Technical Specifications

• Type: Elbow
• Trade Size: 3IN
• Material: Steel
• Finish: Galvanized
• Wall Thickness: 0.072 inches
• Bend Radius: 13 inches
• Inside Diameter: 3.356 inches
• Outside Diameter: 3.500 inches
