Multiple 8289 2 1/2IN EMT Elbow 45 Degrees

Product Description

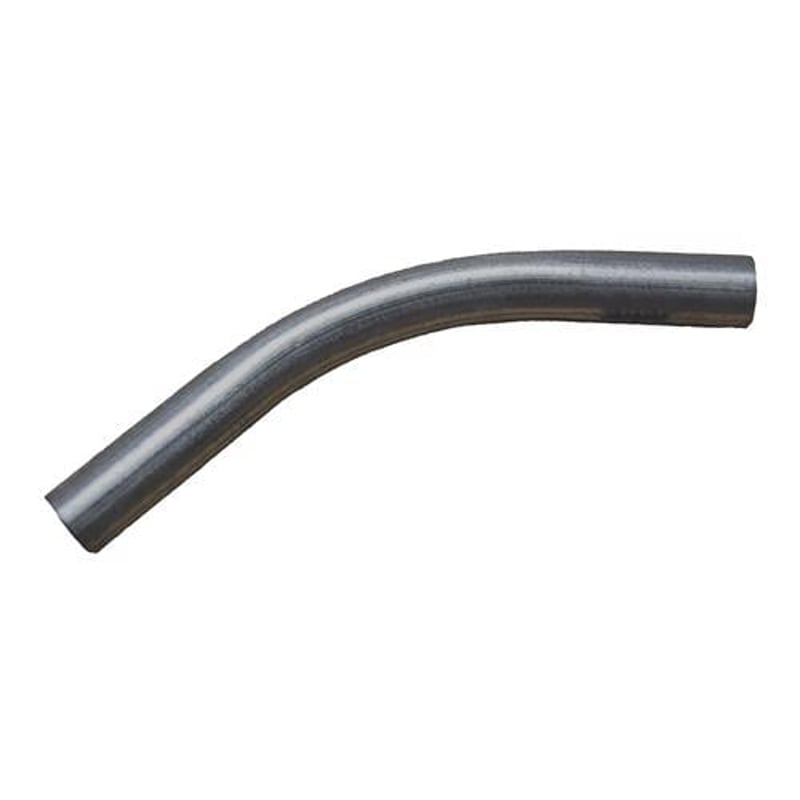

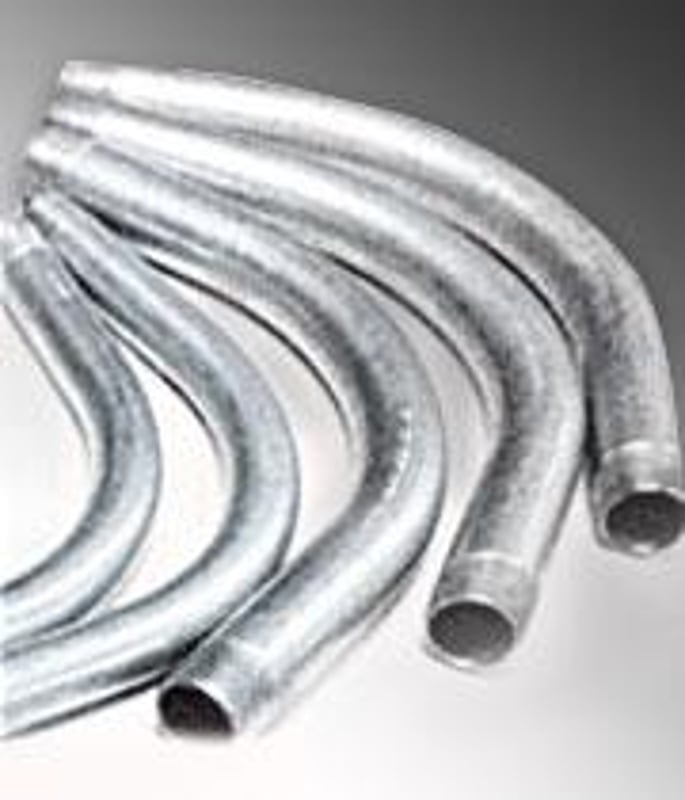

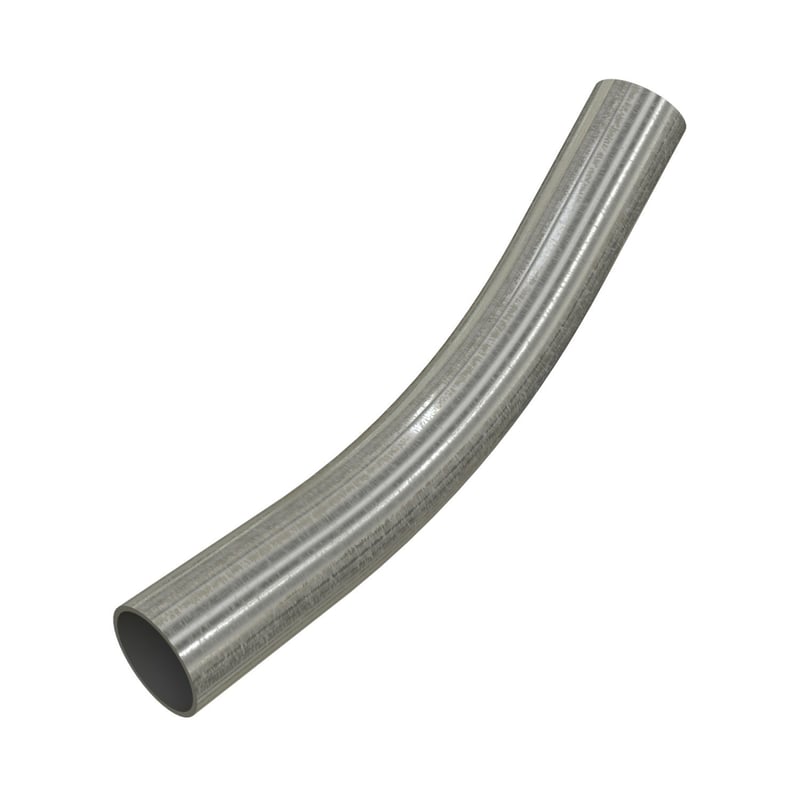

The Multiple 8289 is a 2 1/2 inch EMT elbow designed for changing the direction of electrical metallic tubing (EMT) at a 45-degree angle. This product is made from galvanized steel using a patented inline Flo-Coat process which offers long-lasting exterior protection. The E-Z Pull interior coating facilitates faster and easier wire pulling, making it efficient for electrical installations.

• Made from high-quality galvanized steel
• Patented inline Flo-Coat process for durability
• Meets ANSI C80.3 and UL 797 standards

Product Highlights

This EMT elbow is suited for various electrical applications and provides excellent mechanical protection for conductors.

Product Information

Standard Information

• Brand: Multiple
• Type: Elbow

Technical Specifications

• Material: Steel
• Finish: Galvanized

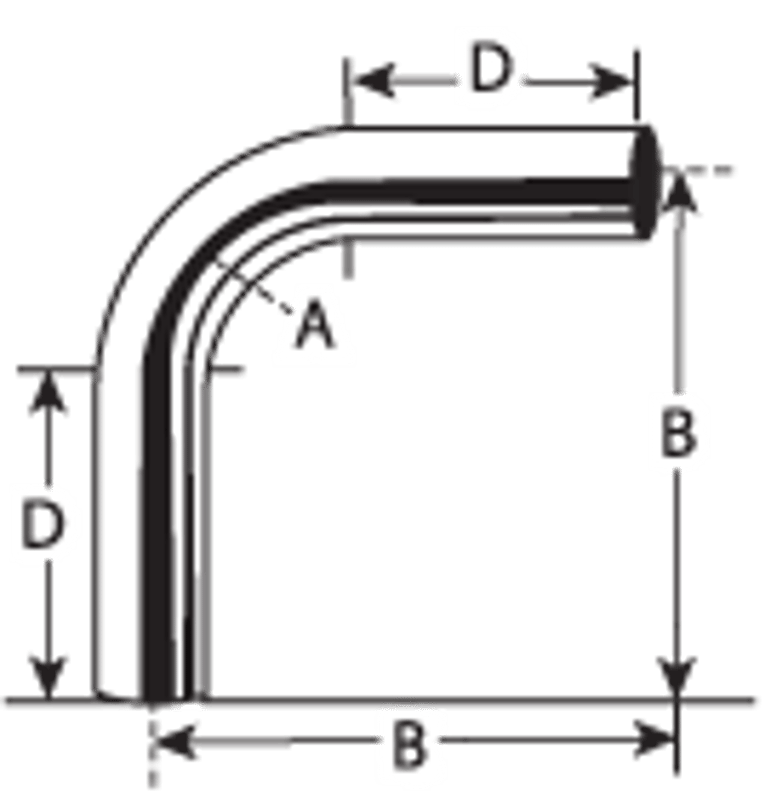

• Bend Radius: 10-1/2 inches
• Trade Size: 2 1/2 inches
• Outside Diameter: 2.875 inches
• Inside Diameter: 2.371 inches
• Wall Thickness: 0.072 inches
• Special Features: Made in the USA, EMT recognized as equipment grounding conductor
