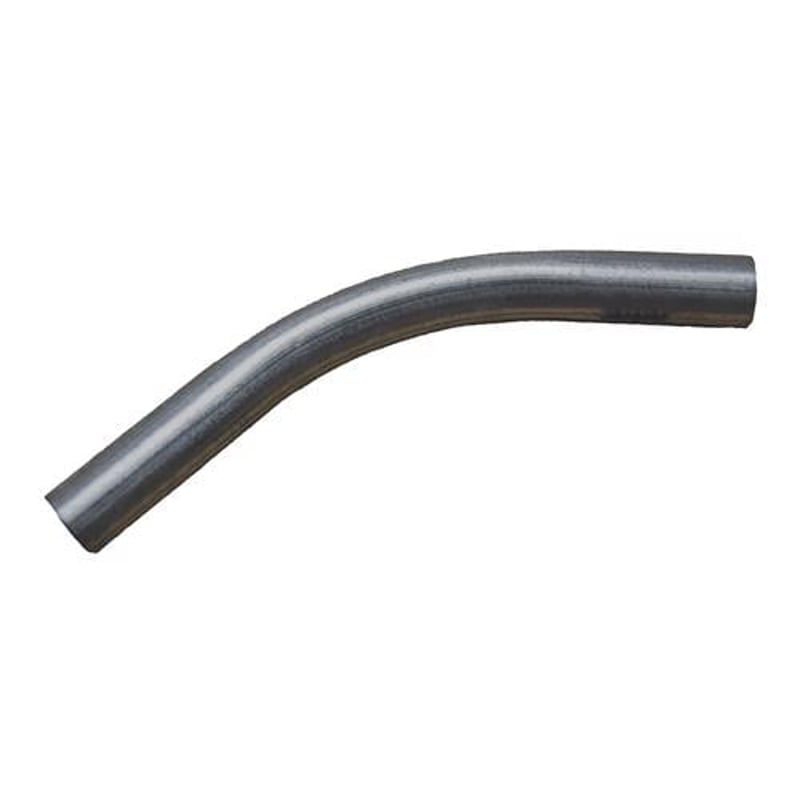

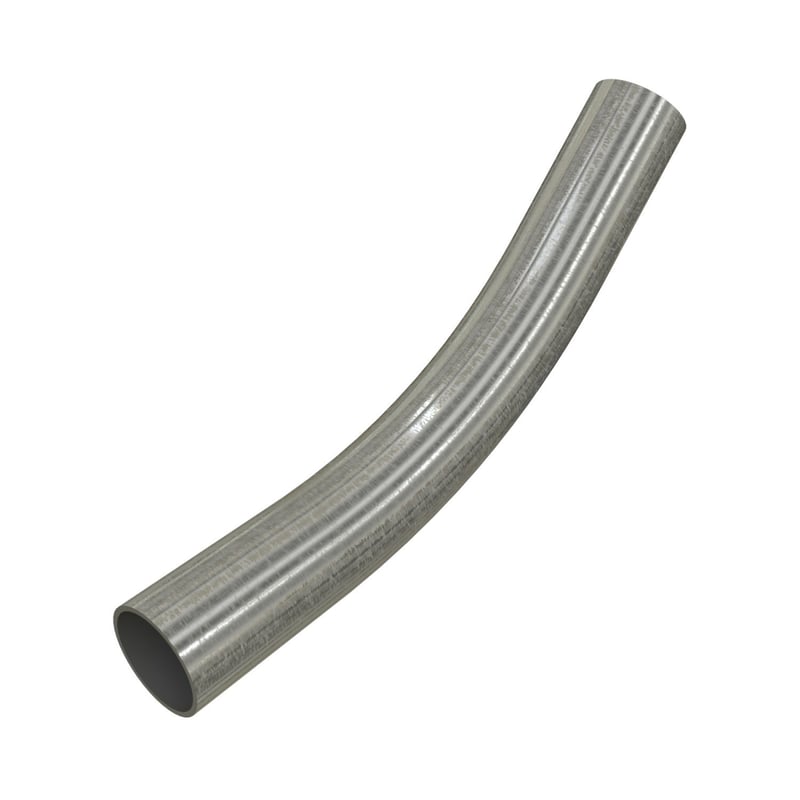

Multiple 8288 2IN EMT Elbow 45 Degrees

Product Description

The Multiple 8288 is a two-inch EMT elbow designed for 45-degree angle configurations in electrical metallic tubing. It is constructed from galvanized steel, ensuring durability and resistance to corrosion.

• Made from high-quality galvanized steel
• Meets UL797 safety standards
• Interior designed for easy wire pulling

Product Highlights

This elbow is ideal for changing the direction of EMT conduits in electrical installations.

Product Information

Standard Information

• Product Type: EMT Elbow
• Trade Size: 2 Inches

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Bend Radius: 9-1/2 inches
• Wall Thickness: 0.065 inches
• Inside Diameter: 2.067 inches
• Outside Diameter: 2.197 inches
• Application: Used to change the direction of a raceway
• Gauge: 16
