Multiple 8284 3/4IN EMT Elbow 45 Degrees

Product Description

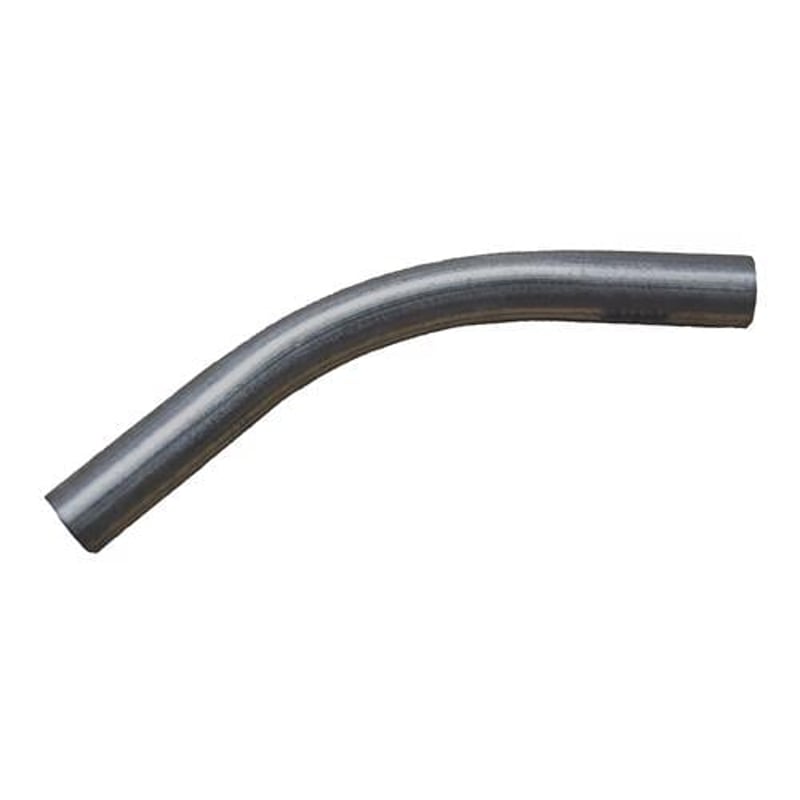

The Multiple 8284 is a three-quarter inch EMT elbow designed for a 45-degree angle. This conduit elbow is made and melted in the United States, ensuring high-quality standards.

• Constructed from inline galvanized outside diameter and epoxy modified acrylic inside diameter materials.
• Meets NEC requirements as an equipment grounding conductor.
• Compliant with UL 797, CSA C22.2 83.1, ANSI C 80.3 and Federal Specification WW-C-563 standards.

Product Highlights

This elbow is ideal for changing the direction of an EMT raceway while providing a reliable connection.

Product Information

Standard Information

• Brand: Multiple
• Box Quantity: 50

Technical Specifications

• Type: Standard Radius EMT Elbow
• Trade Size: 3/4IN
• Material: EMT
• Inside Diameter: 0.824 inches
• Outside Diameter: 0.922 inches
• Application: Used to change the direction of a raceway
• Special Features: Equipment grounding conductor as per NEC
• Buy American Act Compliant: Yes
