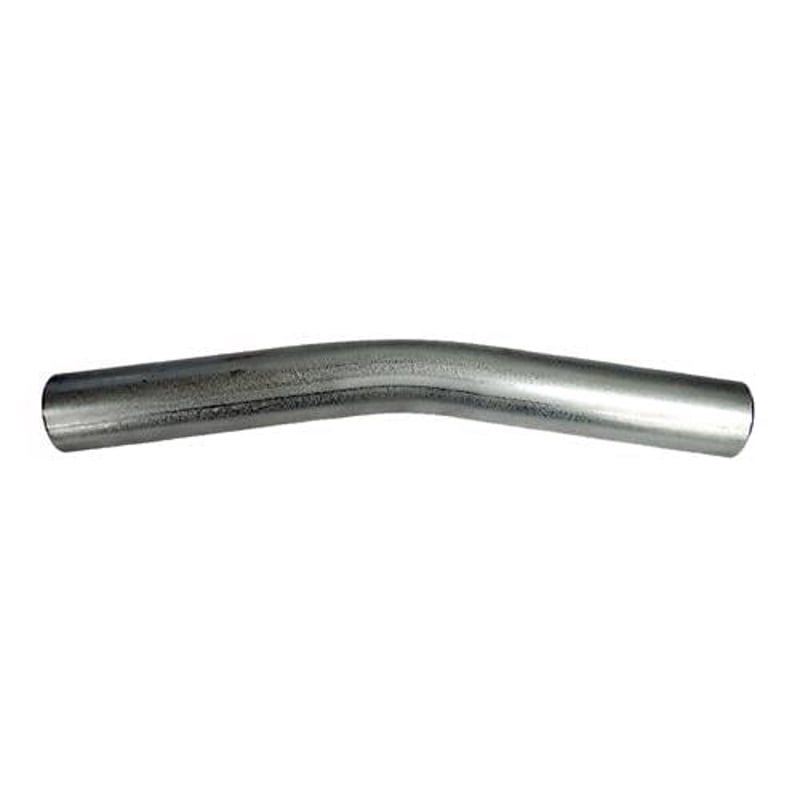

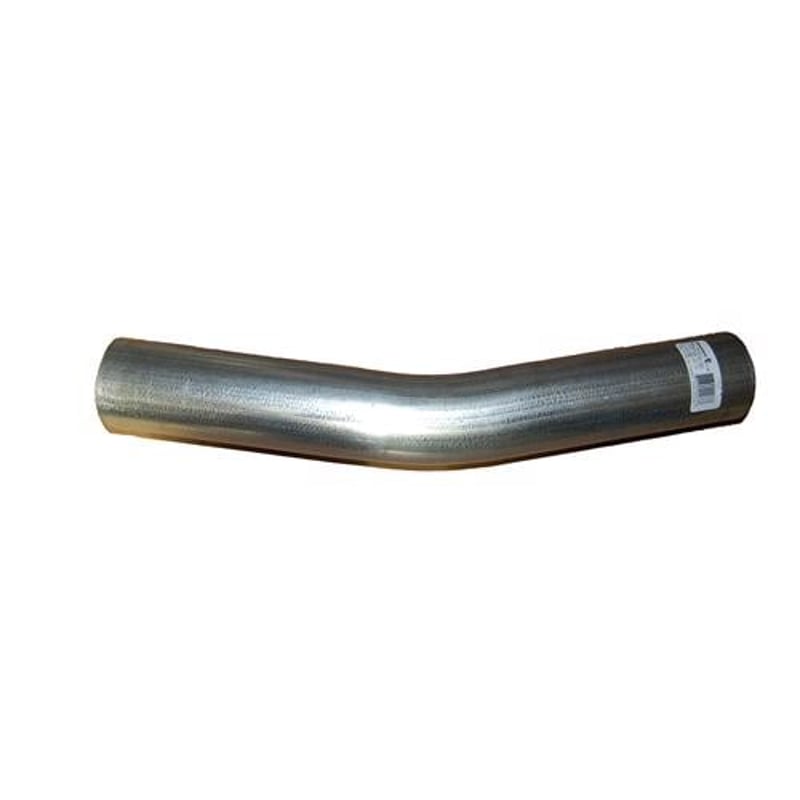

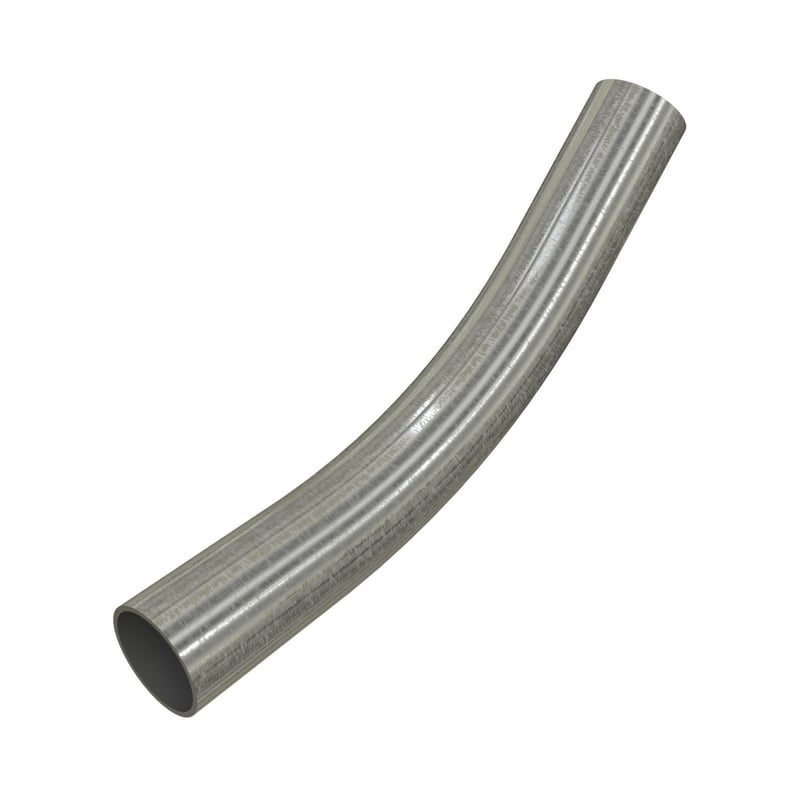

Multiple 8273 3 1/2IN EMT Elbow 22-1/2 Degrees

Product Description

The Multiple 8273 is a 3 1/2 inch EMT elbow designed to change the direction of electrical metallic tubing. This elbow is made from galvanized steel and features a bend of twenty-two and one-half degrees, making it ideal for various electrical installations.

• Size: 3 1/2 inches
• Material: Galvanized steel
• Meets UL 797 and ANSI C80.3 standards

Product Highlights

The product provides excellent mechanical protection and a smooth raceway for wire pulling.

Product Information

Standard Information

• Type: Elbow
• Application: Used to change the direction of a raceway

Technical Specifications

• Trade Size: 3 1/2 inches
• Bend Radius: 15 inches
• Inside Diameter: 3.834 inches
• Outside Diameter: 4 inches
• Wall Thickness: 0.083 inches
• Material: Steel
• Finish: Galvanized
• Gauge: 14
• Special Features: Made and melted in the United States
