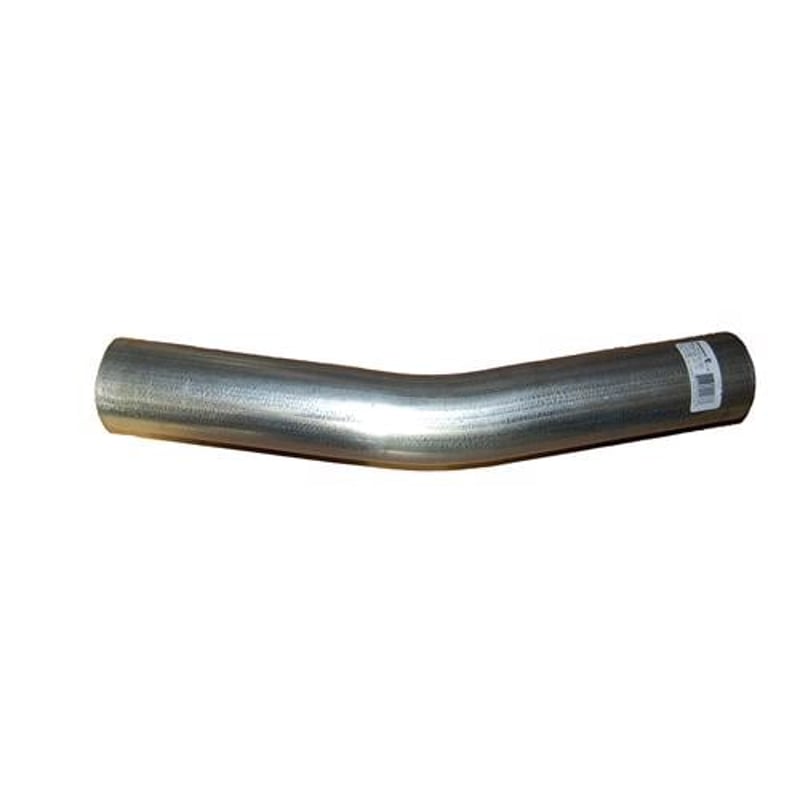

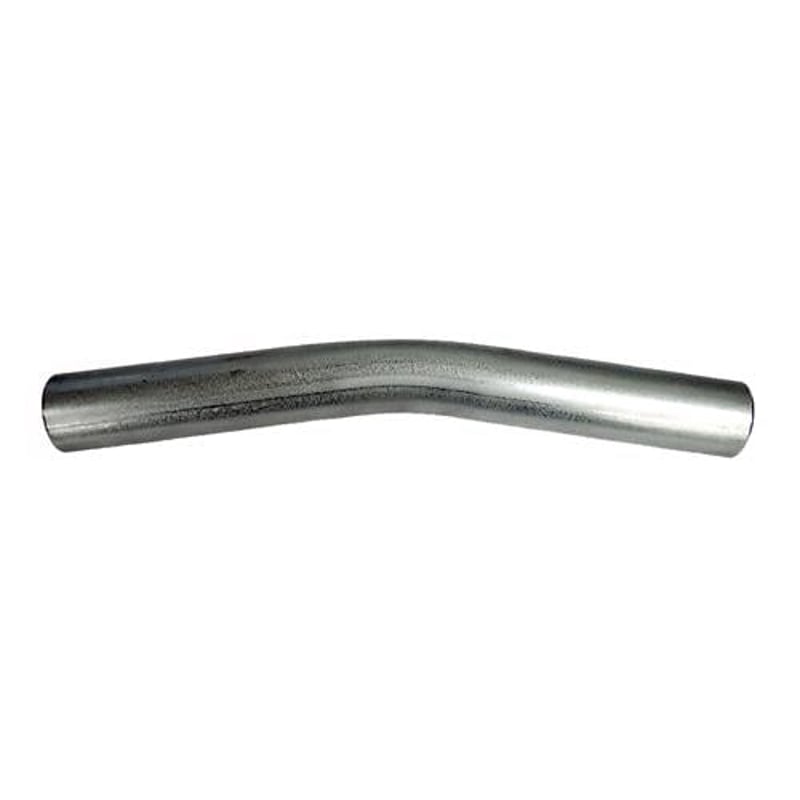

Multiple 8272 1 1/4IN EMT Elbow 22-1/2 Degrees Replacement MPN

Product Description

The Multiple 8272 is an EMT elbow designed to change the direction of a raceway. This elbow has a bend angle of twenty-two and one-half degrees. It is made from inline galvanized material with an outer diameter of one point five one zero inches. The inside diameter is one point three eight zero inches, making it suitable for various applications.

• Resistant to corrosion due to its galvanized construction.
• Complies with NEC regulations for equipment grounding.
• Manufactured in the United States.

Product Highlights

This elbow is specifically used in electrical conduit systems and is essential for maintaining the proper routing of EMT. It provides reliable connections and durability for long-lasting performance.

Product Information

Standard Information

• Product Name: EMT Conduit Elbow
• Trade Size: 1 1/4IN

Technical Specifications

• Material: EMT
• Radius: Standard
• Box Quantity: 20
• Standard: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Application: Used to change the direction of a raceway
• Special Features: Made and melted in the United States, inline galvanized OD and epoxy modified acrylic ID.
