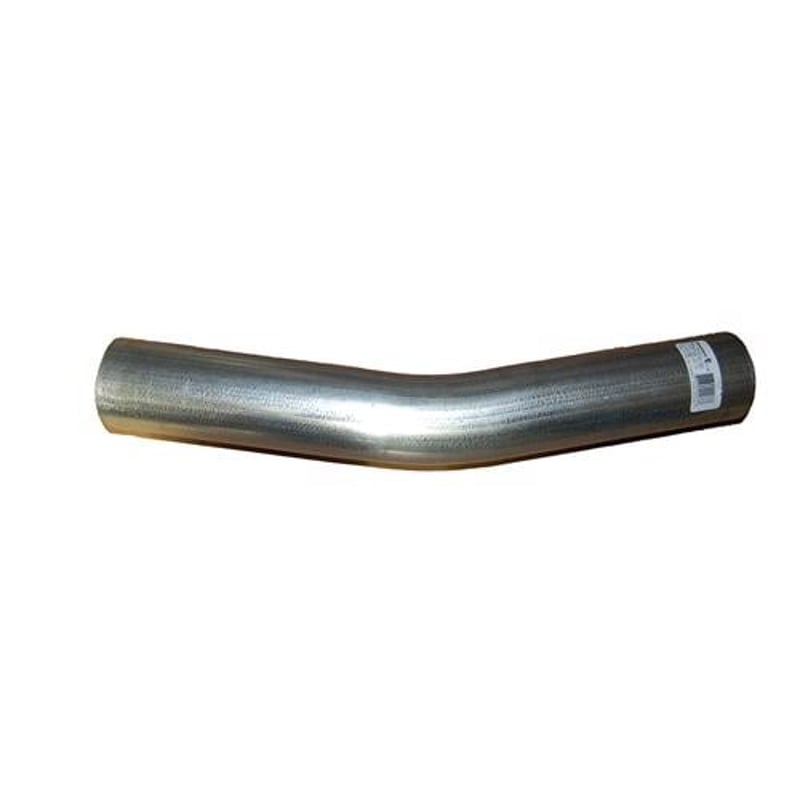

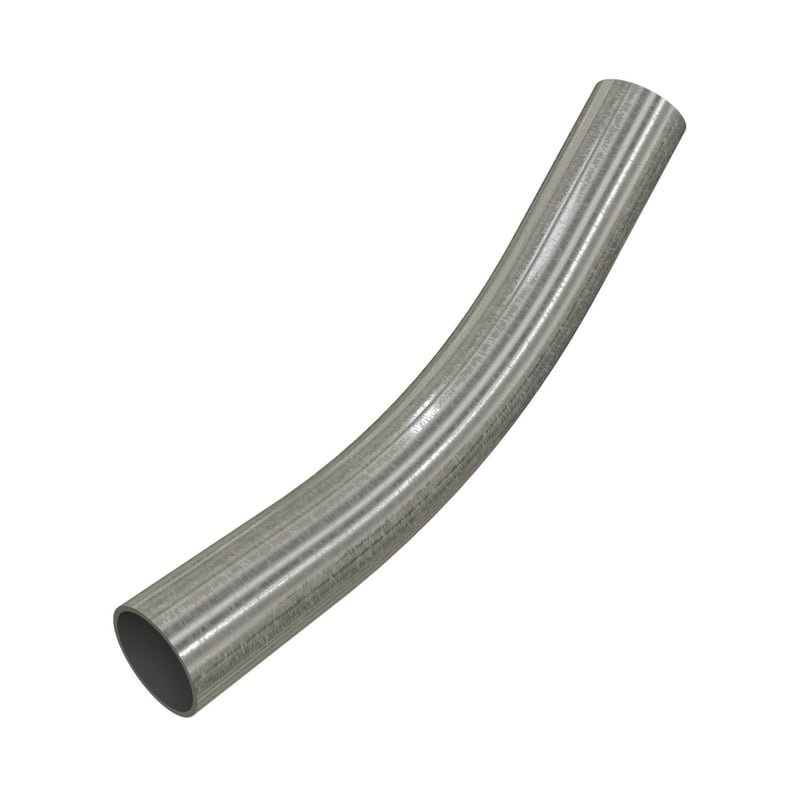

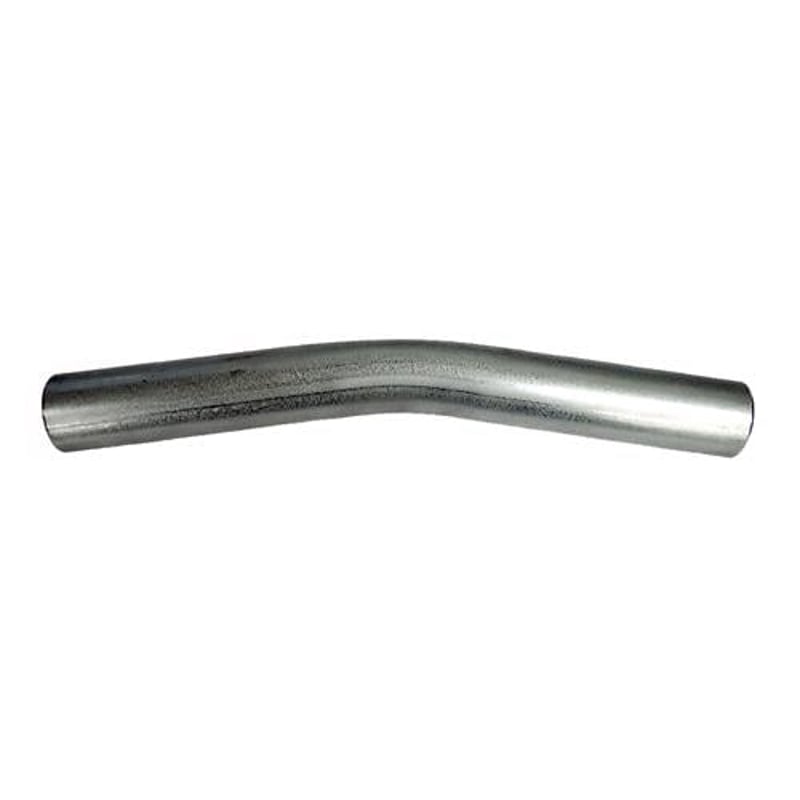

Multiple 8269 2 1/2IN EMT Elbow 22 1/2 Degrees

Product Description

The Multiple 8269 is a 2 1/2 inch EMT elbow with a bend of 22 1/2 degrees. This elbow is designed from electrical metallic tubing (EMT) which is created from galvanized steel for durability. The product is suitable for changing the direction of a raceway in electrical installations.

• Constructed from hot galvanized steel for long-lasting use
• Features E-Z Pull interior coating for easier wire pulling
• Meets UL 797 safety standards and ANSI compliance

Product Highlights

The Multiple 8269 ensures reliable performance in electrical applications, offering robust mechanical protection for conductors and optimal shielding against electromagnetic interference.

Product Information

Standard Information

• Brand: Multiple
• Type: Elbow

Technical Specifications

• MPN: 8269
• Material: Steel
• Finish: Galvanized
• Trade Size: 2 1/2 IN
• Wall Thickness: 0.072 inches

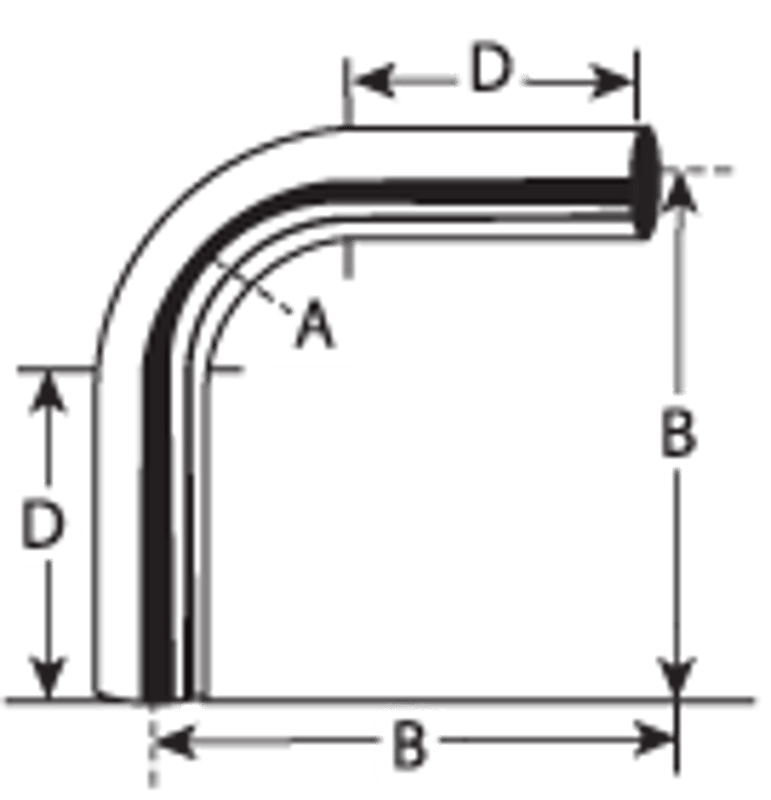

• Bend Radius: 10 1/2 inches
• Inside Diameter: 2.731 inches
• Outside Diameter: 2.875 inches
• Specifications Compliance: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Application: Used to change the direction of a raceway
