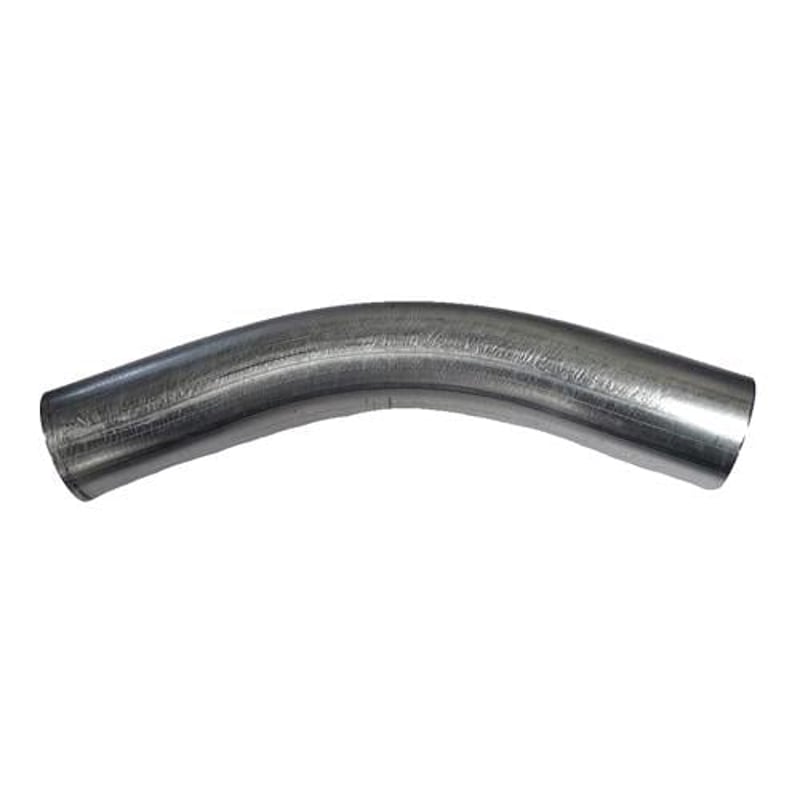

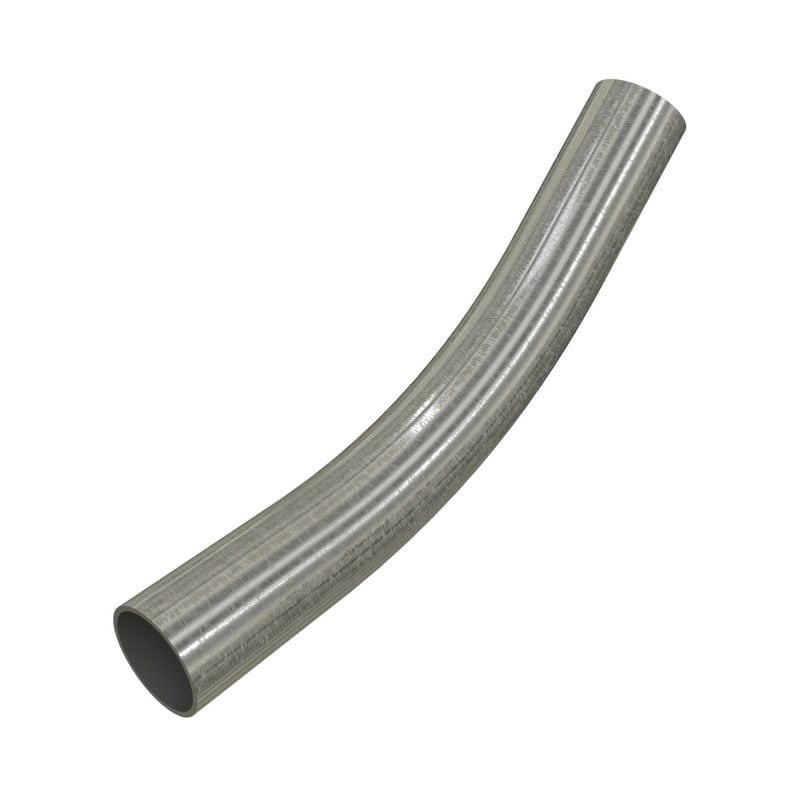

Multiple 8263 4IN EMT Elbow 30 Degrees

Product Description

The Multiple 8263 is a four-inch EMT elbow with a thirty-degree bend, made from galvanized steel. It is suitable for use in electrical conduit systems.

• Galvanized steel for durability.
• E-Z Pull interior coating for easier wire pulling.
• Designed for changing the direction of a raceway.

Product Highlights

This elbow provides excellent protection for conductors and is compliant with safety standards.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 8263

Technical Specifications

• Type: Elbow
• Material: Steel
• Finish: Galvanized
• Trade Size: 4IN
• Inside Diameter: 4.334 inches
• Outside Diameter: 4.500 inches
• Wall Thickness: 0.083 inches
• Application: Used to change the direction of a raceway
• Bend Radius: 16 inches
