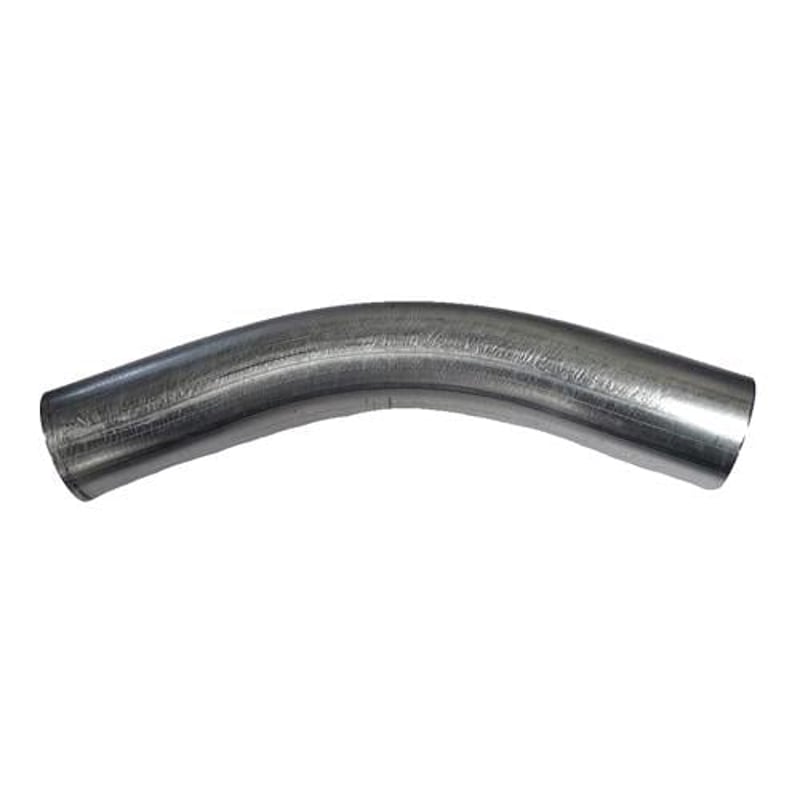

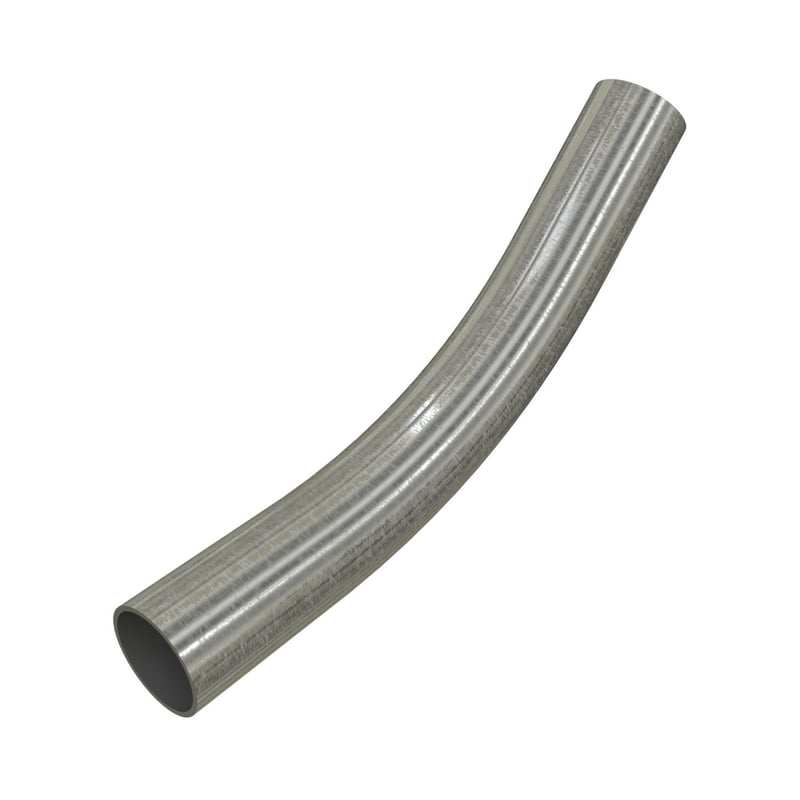

Multiple 8261 3IN EMT Elbow 30 Degrees

Product Description

The Multiple 8261 is a three-inch electrical metallic tubing elbow designed for a thirty-degree angle. This elbow is made from galvanized steel, ensuring durability and resistance to corrosion. The innovative E-Z Pull interior coating offers smooth wire pulling, making it suitable for a variety of electrical installations.

• Constructed from hot galvanized steel using patented inline Flo-Coat process.
• Features E-Z Pull coating for easy wire-pulling.
• Listed to Underwriters Laboratories Safety Standard UL 797.

Product Highlights

This elbow supports electrical running with optimal EMI shielding and mechanical protection for conductors.

Product Information

Standard Information

• Type: Elbow
• Material: Steel

Technical Specifications

• Trade Size: 3IN

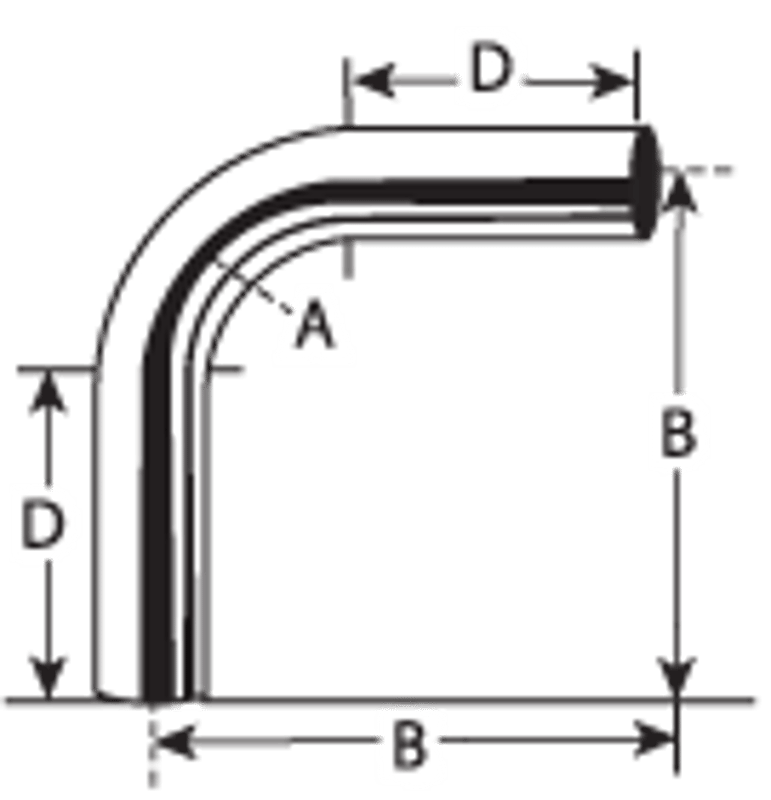

• Bend Radius: 13 inches
• Outside Diameter: 3.500 inches
• Inside Diameter: 3.356 inches
• Wall Thickness: 0.072 inches
• Gauge: 15
• Standards: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Application: Change the direction of conduit raceway
