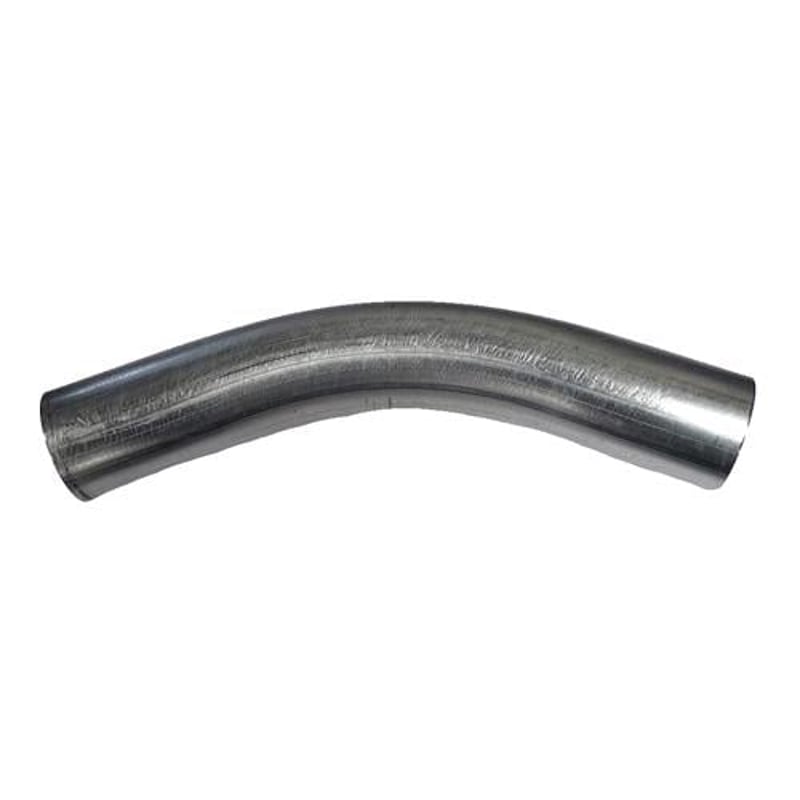

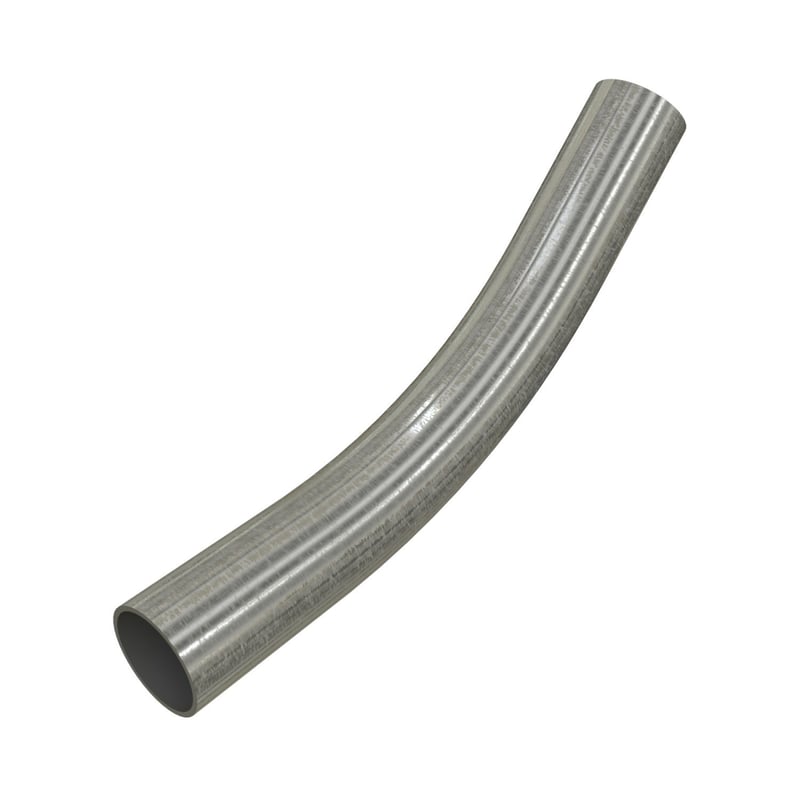

Multiple 8257 1 1/4IN EMT Elbow 30 Degrees

Product Description

The Multiple 8257 is a 1 1/4 inch EMT elbow at a 30-degree angle. This elbow is designed for electrical metallic tubing systems. It is made of galvanized steel for durability and corrosion resistance.

• Used for changing the direction of a conduit raceway.
• Manufactured to meet UL 797 and ANSI C80.3 standards.
• Features an E-Z Pull interior coating for smooth wire pulling.

Product Highlights

This EMT elbow provides excellent mechanical protection for conductors and optimal electromagnetic interference shielding characteristics.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8257

Technical Specifications

• Type: Elbow
• Material: Steel
• Gauge: 16

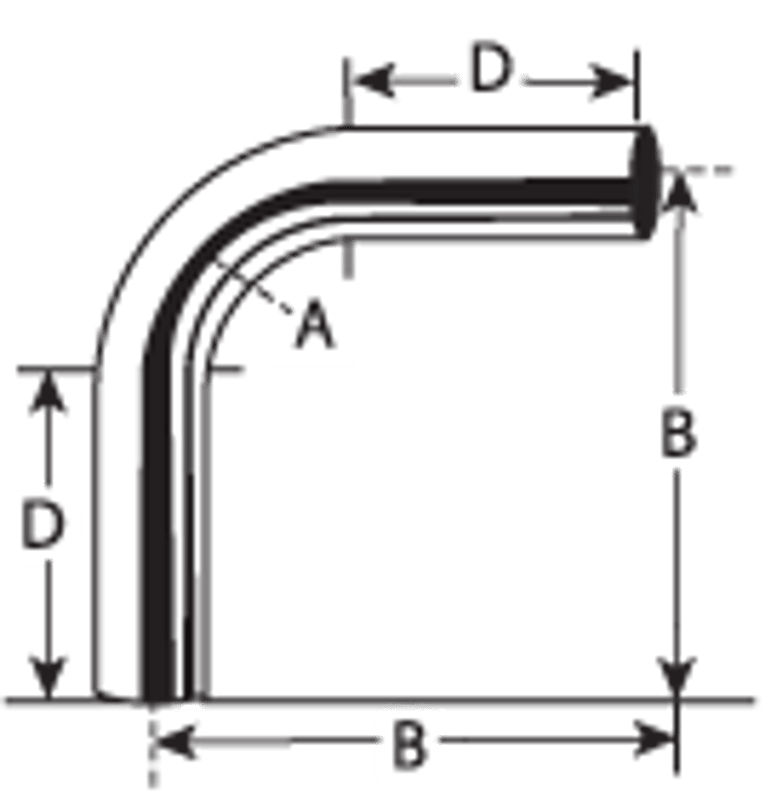

• Bend Radius: 7-1/4 inches
• Inside Diameter: 1.380 inches
• Outside Diameter: 1.51 inches
• Wall Thickness: 0.065 inches
• Finish: Galvanized
• Application: Used to change the direction of a raceway
• UNSPSC: 39121464
• Commodity Code: 2110
