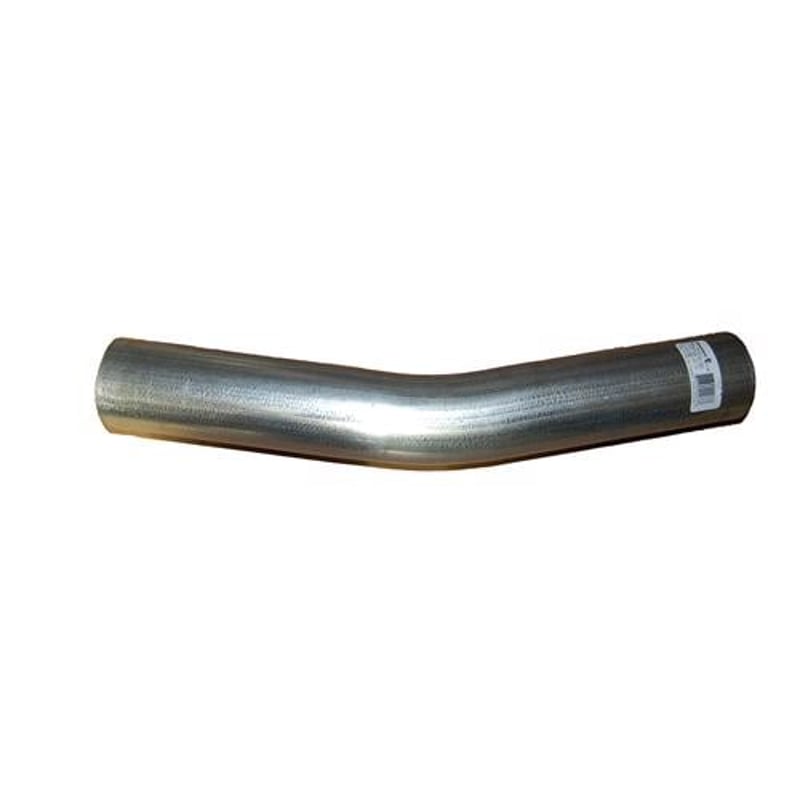

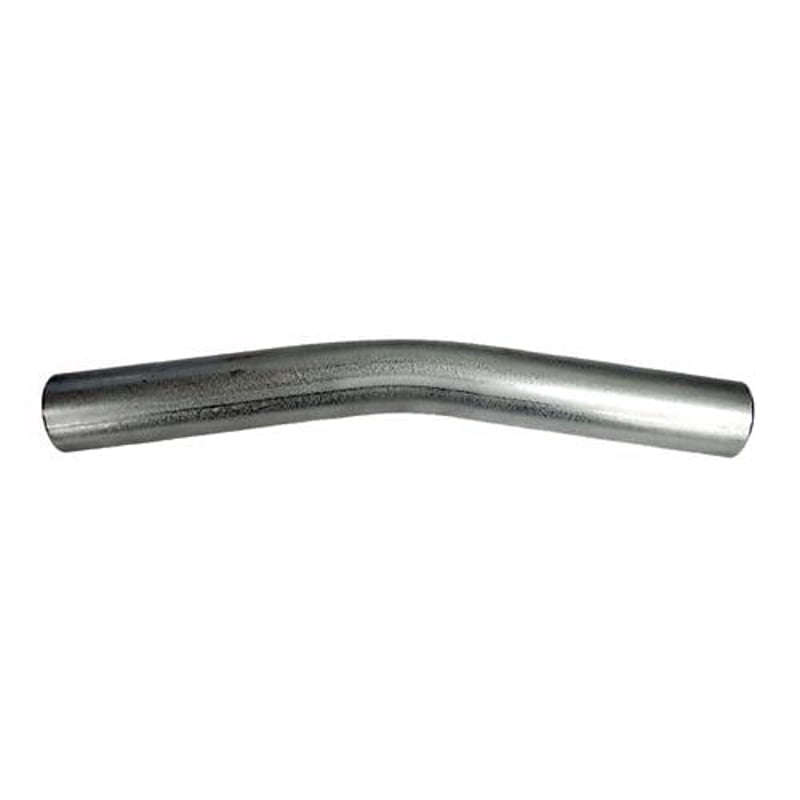

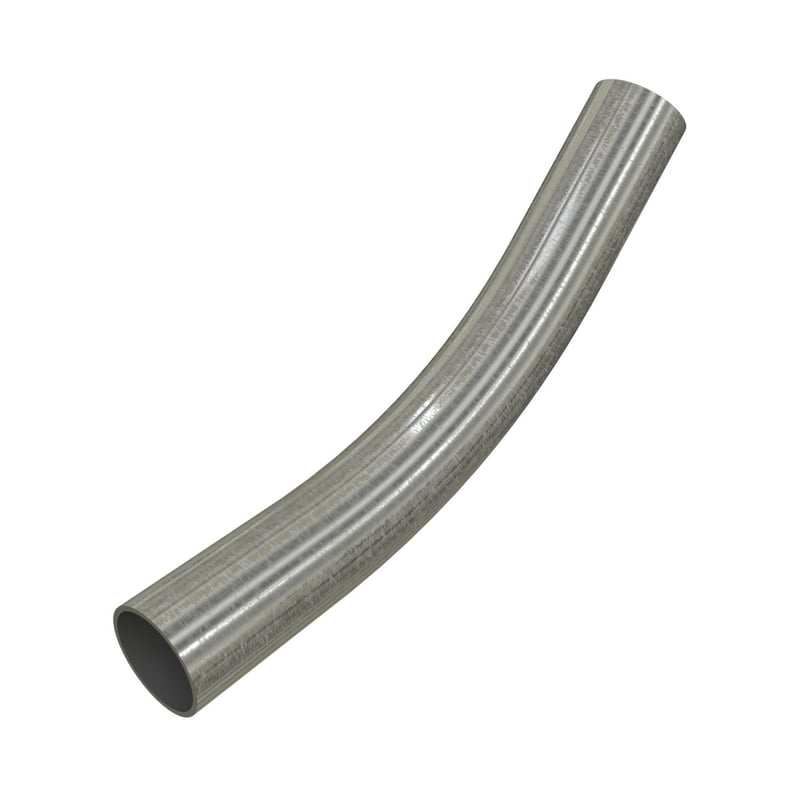

Multiple 8253 2IN EMT Elbow 22-1/2 Degrees

Product Description

The Multiple 8253 is a 2 inch EMT Elbow designed to redirect electrical metallic tubing at a 22-1/2 degree angle. This elbow is made from galvanized steel to ensure durability and resistance to corrosion. It provides an optimal solution for connecting different sections of conduit, allowing for smooth transitions and efficient cable management.

• Designed for 2 inch EMT tubing
• Constructed from galvanized steel
• Meets UL797 and ANSI C80.3 standards

Product Highlights

This elbow is suitable for changing the direction of raceways while maintaining a high level of mechanical protection for internal conductors.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8253

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Trade Size: 2 inches

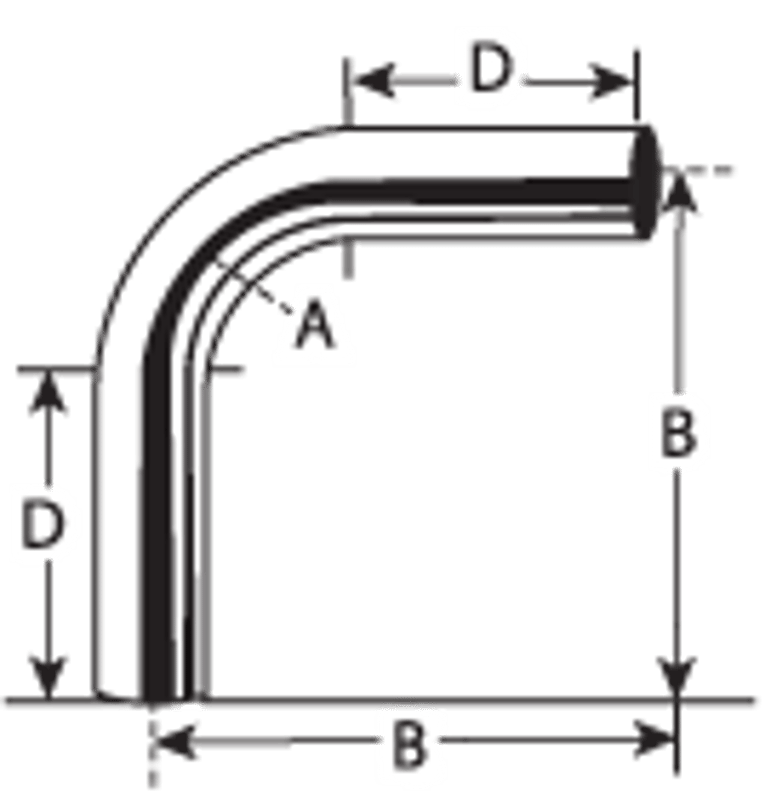

• Bend Radius: 9-1/2 inches
• Wall Thickness: 0.065 inches
• Inside Diameter: 2.067 inches
• Outside Diameter: 2.197 inches
• Application: For changing the direction of raceway
