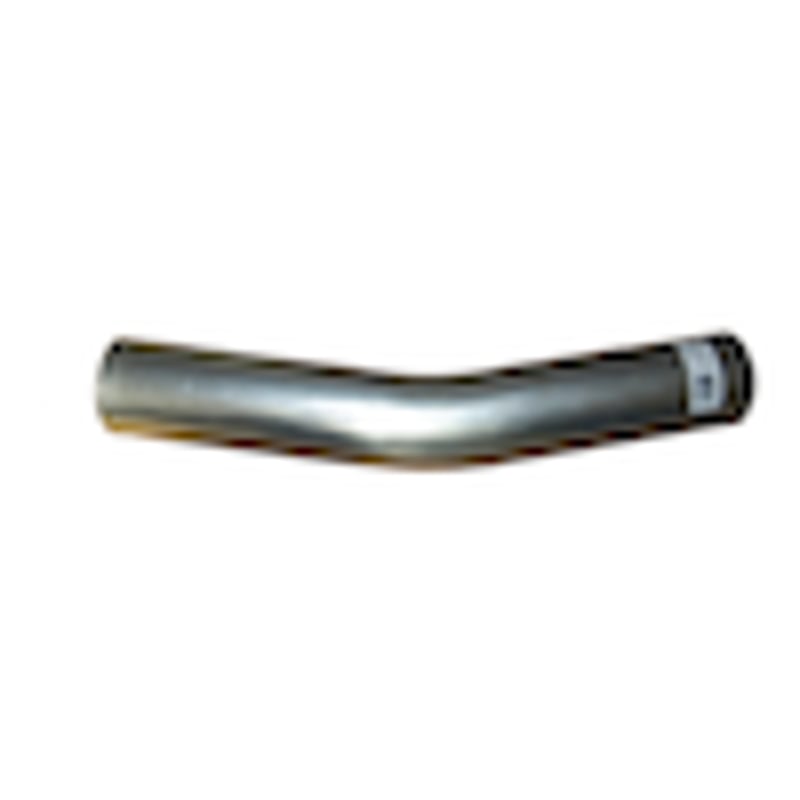

Multiple 8238 1 1/2IN EMT Elbow 15 Degrees

Product Description

The Multiple 8238 is a 1 1/2 inch EMT elbow that makes a 15-degree turn in conduit installations. It is made in the United States from inline galvanized material with an epoxy modified acrylic interior. This product is recognized as an equipment grounding conductor by the National Electrical Code (NEC).

• Standard radius EMT elbow for efficient conduit turns.
• UL 797 and CSA C22.2 compliant.
• Inline galvanized and epoxy modified for durability.

Product Highlights

This elbow is critical for changing the direction of raceways in electrical installations.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 223785

Technical Specifications

• Type: Standard radius EMT elbow
• Inside Diameter: 1.610 inches
• Outside Diameter: 1.740 inches
• Material: EMT
• Radius: Standard
• Trade Size: 1 1/2 inches
• Compliance Standards: UL 797, CSA C22.2 83.1, ANSI C 80.3
• Application: Used to change the direction of a raceway
• Buy American Act Compliant: Yes
