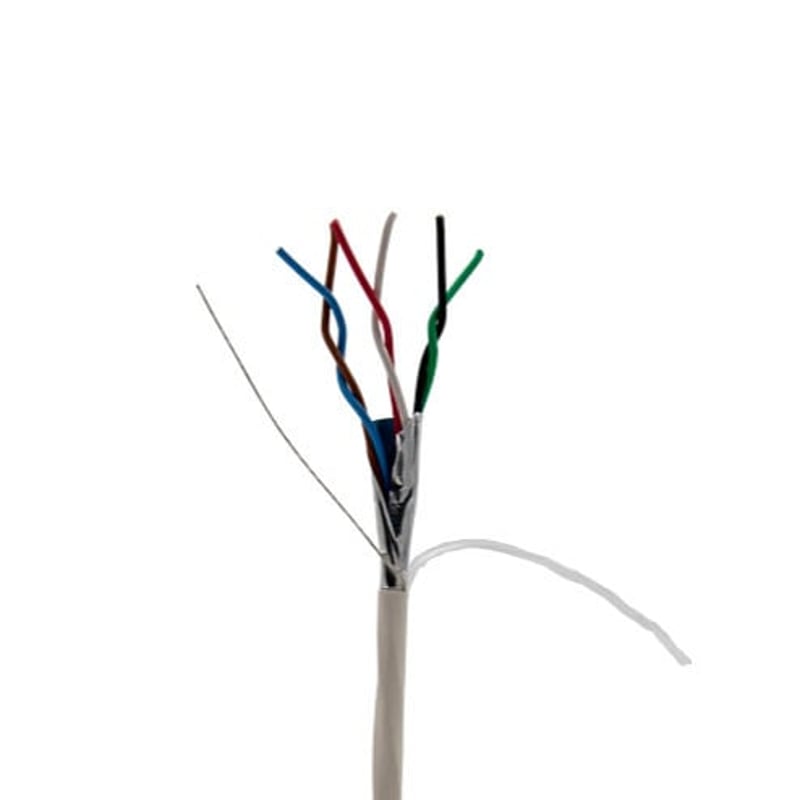

Multiple 759060623 MWC A30026PB 18/6 Shielded Stranded Plenum White 1000 FT Pull Box

Product Description

The Multiple 759060623 is a shielded communication cable designed for various applications including intercom, nurse call, and security systems. This cable is type CMP/CL3P (UL), compliant with NEC standards. It features six stranded conductors made of bare copper, ensuring reliable electrical performance. The cable has a voltage rating of 300V and is suitable for both residential and commercial use.

• Low smoke PVC insulation reduces fire hazards.
• Outer diameter of 0.224 inches for easy installation.
• Temperature rating from -20 to 75 degrees Celsius.

Product Highlights

Ideal for communication and control systems, this cable ensures safety and reliability. It is UL and CUL approved, offering peace of mind for installations.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 24622

Technical Specifications

• Type: CMP/CL3P (UL), CMP/FT6 (CUL)
• Color: White
• Number of Conductors: 6
• Conductor Size: 18 AWG
• Conductor Material: Bare Copper
• Drain Wire Material: Tinned Copper
• Drain Wire Size: 24 AWG
• Insulation Material: Low Smoke PVC
• Jacket Material: Low Smoke PVC
• Outer Diameter: 0.224 inches
• Length: 1000 FT
• Temperature Rating: -20 to 75 degrees Celsius
• Approval: UL 13, UL 444, CUL
• ROHS Compliant: Yes
