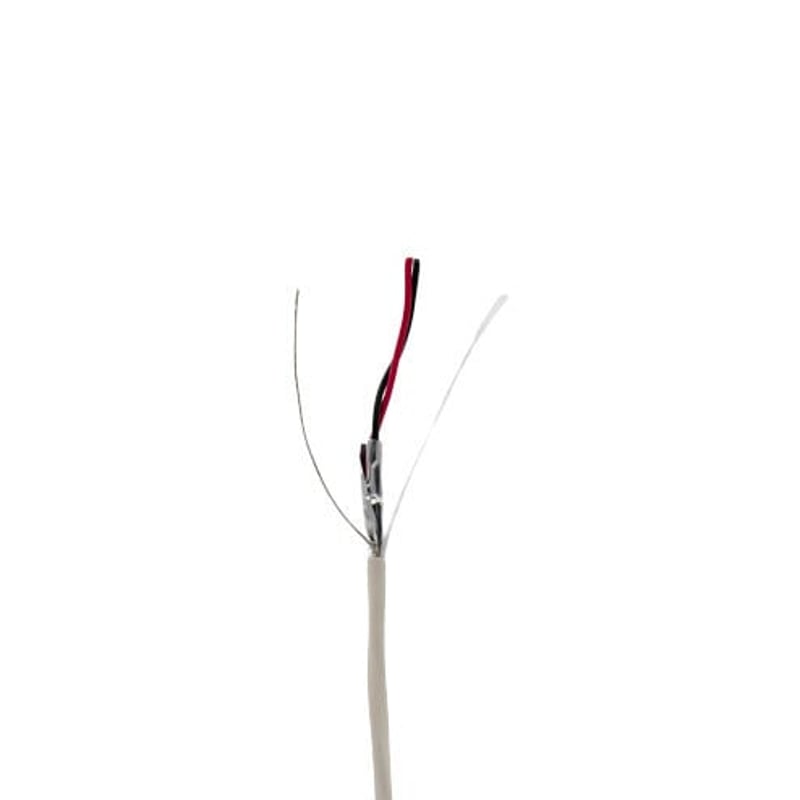

Multiple 753020623 MWC A30016PB 22/2 Shielded Stranded Plenum White 1000 FT Pull Box

Product Description

The Multiple 753020623 is a shielded communication cable designed for various applications. It features two conductors with a size of twenty-two AWG stranded. This cable is suitable for intercom systems, nurse calls, and security applications.

• Voltage rating of 300 V
• Low smoke PVC insulation and jacket
• Suitable for power limited circuits

Product Highlights

This cable is designed to meet UL standards, ensuring safety and reliability in installation. Its low smoke properties make it ideal for use in plenum spaces.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 15582

Technical Specifications

• Type: CMP/CL3P (UL), CMP/FT6 (CUL)
• Color: White
• Number of Conductors: 2
• Conductor Size: 22 AWG
• Conductor Material: Bare Copper
• Drain Wire Material: Tinned Copper
• Drain Wire Size: 24 AWG
• Outer Diameter: 0.136 Inch
• Length: 1000 FT
• Temperature Rating: -20 to 75 Deg C
• Insulation Material: Low Smoke PVC
• Jacket Material: Low Smoke PVC
• Jacket Color: Beige
• Shielding Type: Aluminum Mylar
• Insulation Thickness: 0.01 Inch
• Packaging Type: Pull-Box
