Multiple 511090609 MWC A20023PB 18/3 Unshielded Stranded Gray PVC 1000 FT Pull Box

Product Description

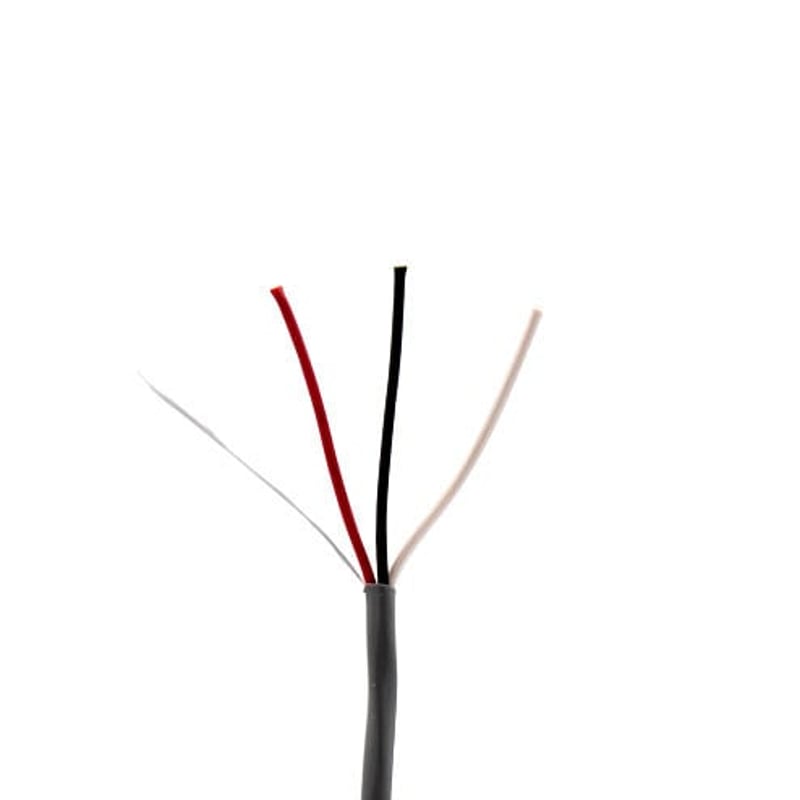

The Multiple 511090609 is an 18/3 unshielded stranded gray PVC cable designed for various communication purposes. This cable has three conductors and is suitable for applications such as intercom systems, nurse calls, remote controls, and security systems.

• Type CMR/CL3R (UL), CMG/FT4 (CUL)
• Voltage rating of three hundred volts
• Length of one thousand feet

Product Highlights

This cable is known for its reliable performance in low voltage applications and is approved by UL standards.

Product Information

Standard Information

• Brand: Multiple
• Part #: 13491

Technical Specifications

• Conductor Size: 18 AWG
• Conductor Material: Bare Copper
• Insulation Material: Polypropylene/FR Polypropylene
• Jacket Material: PVC
• Outer Diameter: 0.151 inches
• Temperature Rating: -20 to 60 degrees C
• Application: Communication, Intercom/P.A System, Nurse Call, Power Limited Circuit, Remote Control, Security System, Signaling, Sound/Audio
• Approval: UL 13, UL 444, CUL
