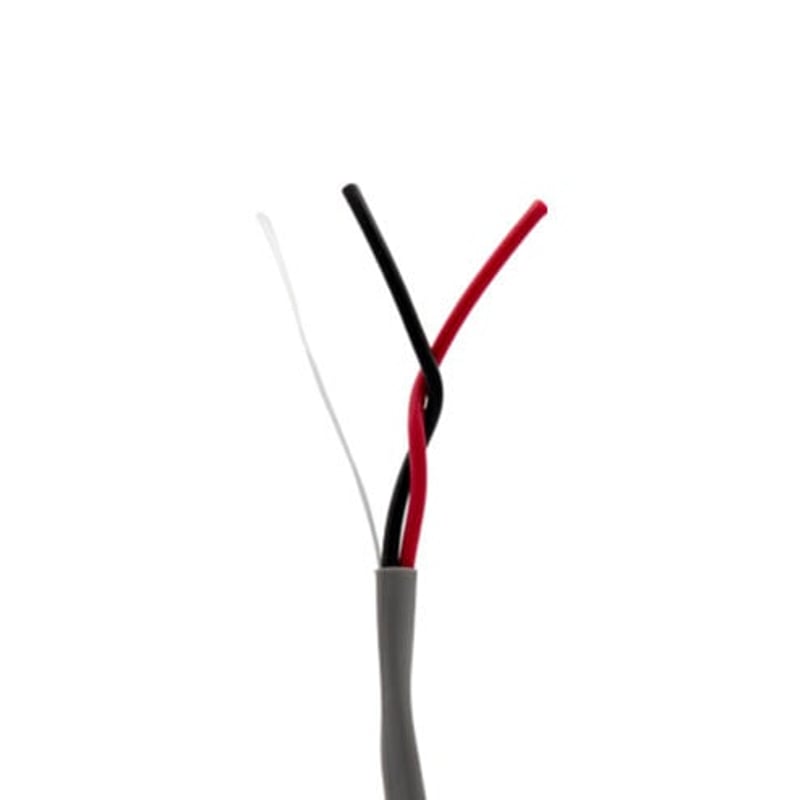

Multiple 511050609 MWC A20032PB 16/2 Unshielded Stranded Gray PVC 1000 FT Pull Box

Product Description

The Multiple 511050609 is a twenty-four gauge unshielded conductor cable, measuring one thousand feet in length. It uses a gray PVC jacket suitable for various applications including communication systems, intercoms, nurse call systems, and security setups.

• Unshielded cable type: CMR/CL3R (UL), CMG/FT4 (CUL)
• Voltage rating of 300 volts
• Conductor material is bare copper with a size of 16 AWG

Product Highlights

This cable is designed for signal transmission in low voltage applications, ensuring reliable communication.

Product Information

Standard Information

• Brand: Multiple
• Packaging Type: Rabbit Pull Pull-Box

Technical Specifications

• Number of Conductors: 2
• Insulation Material: Polypropylene/FR Polypropylene
• Jacket Material: PVC
• Outer Diameter: 0.168 inches
• Temperature Rating: -20 to 60 degrees Celsius
• Color Code: Black, Red
• Insulation Thickness: 0.006 inches
• Jacket Thickness: 0.014 inches
• Approval: UL 13, UL 444, CUL
• Applicable Standards: NEC 725/800
