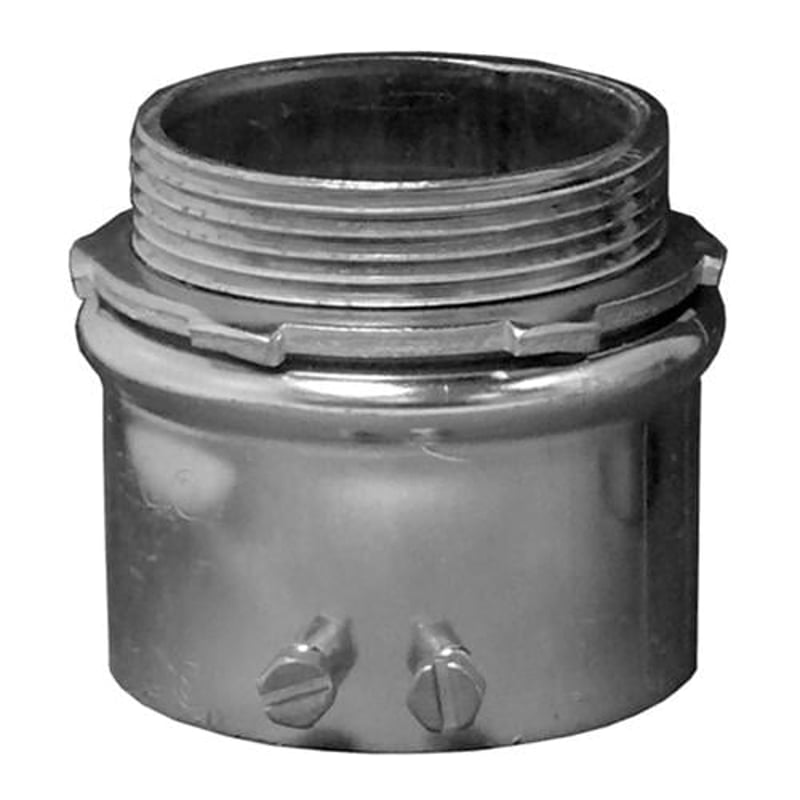

Multiple 4250S 2-1/2IN EMT Steel Set Screw Connector

Product Description

The Multiple 4250S is a 2-1/2 inch EMT steel set screw connector designed to secure and ground EMT raceways to boxes and enclosures effectively. This connector features a diameter of 2 5/32 inches with a length of 3 7/16 inches, meeting UL and CSA standards for quality and safety.

• Durable steel construction with zinc electroplated finish
• Concretetight for effective sealing
• Standard compliance with UL 514B, CSA C22.2, and NEMA FB-1

Product Highlights

The Multiple 4250S connector is suitable for various applications where EMT conduits are used. Its set screw design allows for easy installation, ensuring secure connections.

Product Information

Standard Information

• Brand: Multiple
• MPN: 4250S

Technical Specifications

• Material: Steel
• Finish: Zinc Electro Plated
• Trade Size: 2 1/2 inches
• Thread Length: 7/8 inches
• Connector Type: Set Screw
• Standard Compliance: UL 514B; CSA C22.2; NEMA FB-1
• Application: To ground and secure EMT raceways to boxes and enclosures
• Box Quantity: 10
