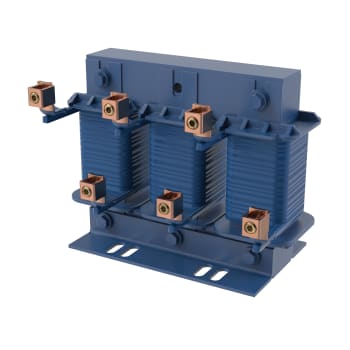

MTE RL-05502 Line/Load Reactor

Product Description

The MTE RL-05502 is a three-phase line/load reactor made for variable frequency drives and sensitive equipment. It operates at a voltage range of two hundred eight to six hundred ninety VAC and a frequency of fifty to sixty Hertz. This open chassis unit handles fifty-five amps of constant torque and offers five percent impedance.

• Reduces harmonic distortion to thirty to thirty-five percent.
• Lowers dv/dt rate and motor peak terminal voltage.
• Suitable for systems with horsepower ratings from ten to seventy-five hp.

Product Highlights

This reactor improves waveform integrity, enhancing motor performance and system efficiency.

Product Information

Standard Information

• Catalog Number: RL-05502
• Enclosure Type: Chassis

Technical Specifications

• Weight: 27 lbs
• Constant Torque Amps: 55
• Input Phase: 3
• Output Phase: 3
• Height: 6.9 inches
• Width: 9 inches
• Depth: 5.3 inches
• Horsepower Rating: 10 to 75 hp, 10 to 20 hp
• Impedance: 5%
• Voltage Rating: 208 to 690 VAC
• Amperage Rating: 55 A
• Inductance: 0.5 mH
• Mounting Type: Surface
