MRCOOL DIYCASSETTE09HP-230D25-O Mini Split Ceiling Cassette Air Handler 230V

Product Description

The MRCOOL DIYCASSETTE09HP-230D25-O is a 9K BTU Mini Split Ceiling Cassette Air Handler suitable for heating and cooling spaces up to 400 square feet. It operates on 208-230V and relies on the environmentally friendly R-454B refrigerant for efficient climate control.

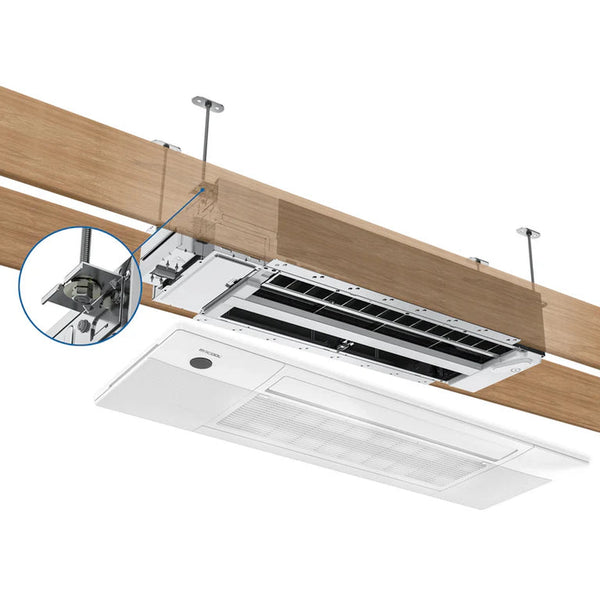

• Designed for easy DIY installation without special tools.
• Includes a quick-connect line set, pre-charged with refrigerant.
• Operates quietly with a decibel rating as low as 21 dBA.

Product Highlights

This air handler offers multiple control options, including a wireless remote and app compatibility for iOS and Android.

Product Information

Standard Information

• Brand: MRCOOL
• Model: DIYCASSETTE09HP-230D25-O

Technical Specifications

• Product Dimensions: 50.31 inches W x 13.19 inches D x 8.98 inches H
• Product Weight: 44.97 lbs
• SEER: Up to 21.8
• EER: Up to 12.5
• Cooling Capacity: 17,000 BTU
• Heating Capacity: 19,000 BTU
• Voltage: 208V-230V/60HZ/15A
• Decibel Rating: Low 21 dBA, High 44 dBA
• Modes: Auto, Cool, Heat, Dry, Fan Only, Sleep
• Warranty: 5-year parts, 7-year compressor
