MR PEX 3250400 Stainless Steel Manifold 1-1/4

Product Description

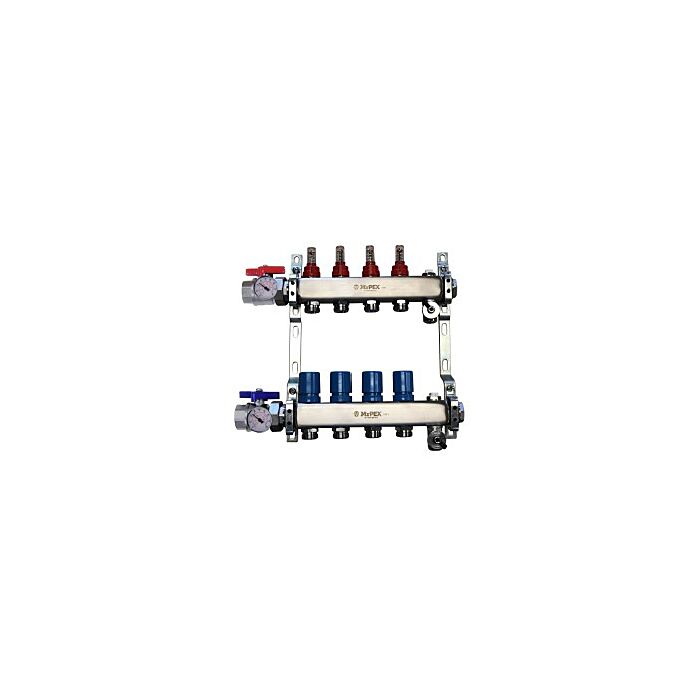

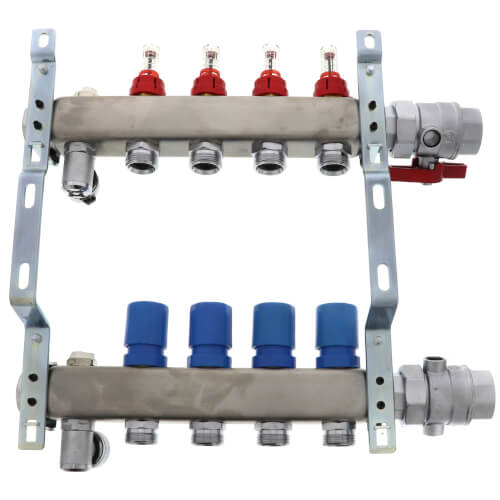

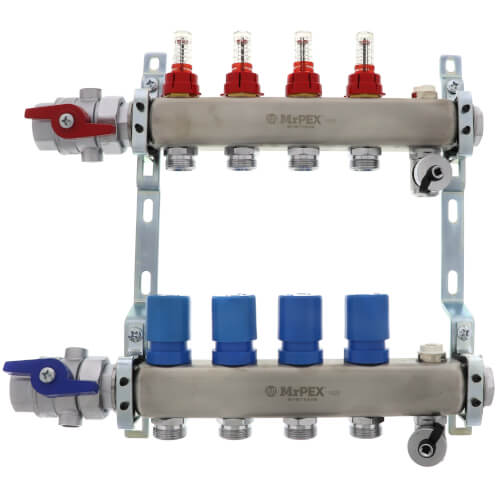

The MR PEX 1-1/4 Stainless Steel Manifold, MPN 3250400, is made from type 304 stainless steel. This material provides corrosion resistance, featuring a bright annealed finish and high nickel content. The manifold comes fully assembled and is ready for mounting. The supply side is equipped with adjustable flowmeters, and the return side includes balancing on/off valves. A multi-function swivel end cap is also part of the design for filling, draining, or venting. For tubing connections, it utilizes Eurokonus (EK 20) connections.

• Constructed from type 304 stainless steel
• Adjustable flowmeters on the supply side with balancing valves on the return side
• Eurokonus (EK 20) connections for tubing

Product Highlights

This manifold is ideal for heating applications and can accommodate various flow rates.

Product Information

Standard Information

• Material: Stainless Steel and Brass
• Manufacturer: MR PEX

Technical Specifications

• Operating Pressure: 87 psi
• Max Pressure at 70 degrees F: 145 psi
• Maximum Continuous Working Temperature: 160 degrees F
• Maximum Intermittent Working Temperature: 185 degrees F (max 10 min/day)
• Max Differential Pressure: 14.5 psi
• Supply Flowmeter (wide open): 1.39 Cv
• Return Valve (wide open): 3.24 Cv
• Accepted Media: Water, up to 50% propylene glycol
• Loop Connection: EK20 (G3/4” Eurocone)
• Available Sizes: 2-12 loops
• Actuator Adapter Size: VA10
• Branch Cv Value: 1.39
• Number of Outlets: 4
• PEX Size: 3/8, 1/2, 5/8
• Flow Rate (GPM): 14
• Flow Capacity (Cv): 1.38
• Supply Size: 1
• Supply Connection: BSP
• Loop Thread: EK20
• Fitting System Compatibility: PEX Compression, PEX-AL-PEX Compression
• Application: Heating
• Loops: 4
• Manufacturer Part Number: 3250400
